Thermo-mechanical coupling analysis of consumable-rod friction welding process
-
摘要: 以AA6061铝合金为试验对象，基于ABAQUS/Explicit建立耗材摩擦焊三维完全热力耦合模型，分析温度场、等效塑性变形场、轴向缩短量和飞边形状，结果表明，焊接温度低于材料熔点为固相连接，焊接过程塑性金属大量挤出，形成蘑菇头形状的飞边，飞边温度处于480 ℃左右；在稳定焊接阶段，前进侧温度高于返回侧，在垂直于焊缝方向上，焊棒高温区大于焊板高温区，温度分布的不均使得涂层边缘处结合不良. 高温区域趋于稳定后，轴向缩短量和时间呈近线性关系，焊接结束时轴向缩短量为7.5 mm，高温区和塑性变形区都集中在摩擦界面附近的堆积区域.Abstract: AA6061 aluminum alloy was taken as the test object, based on ABAQUS/Explicit, a three-dimensional fully thermo-mechanical coupling model for consumable-rod friction welding was established, and the temperature field, equivalent plastic deformation field, axial shortening and flash shape were analyzed. The results shown that the solid phase bonding was achieved because the welding temperature was lower than the melting point of the material, plastic metals were extruded in large quantities to form a mushroom head shape of flash with a temperature of about 480 °C during welding process. In the stable welding stage, the temperature of the advancing side was higher than that of the retreating side. In the direction perpendicular to the welding seam, the high temperature zone of the welding rod was larger than that of the welding plate, and the uneven temperature distribution made the bonding at the edge of the coating poor. The relation between axial shortening and time is nearly linear after the high temperature region tends to be stable, and the number of axial shortening was 7.5 mm at the end of welding. Both the high temperature zone and the plastic deformation zone were concentrated in the accumulation area near the friction interface.
-
-
![]()

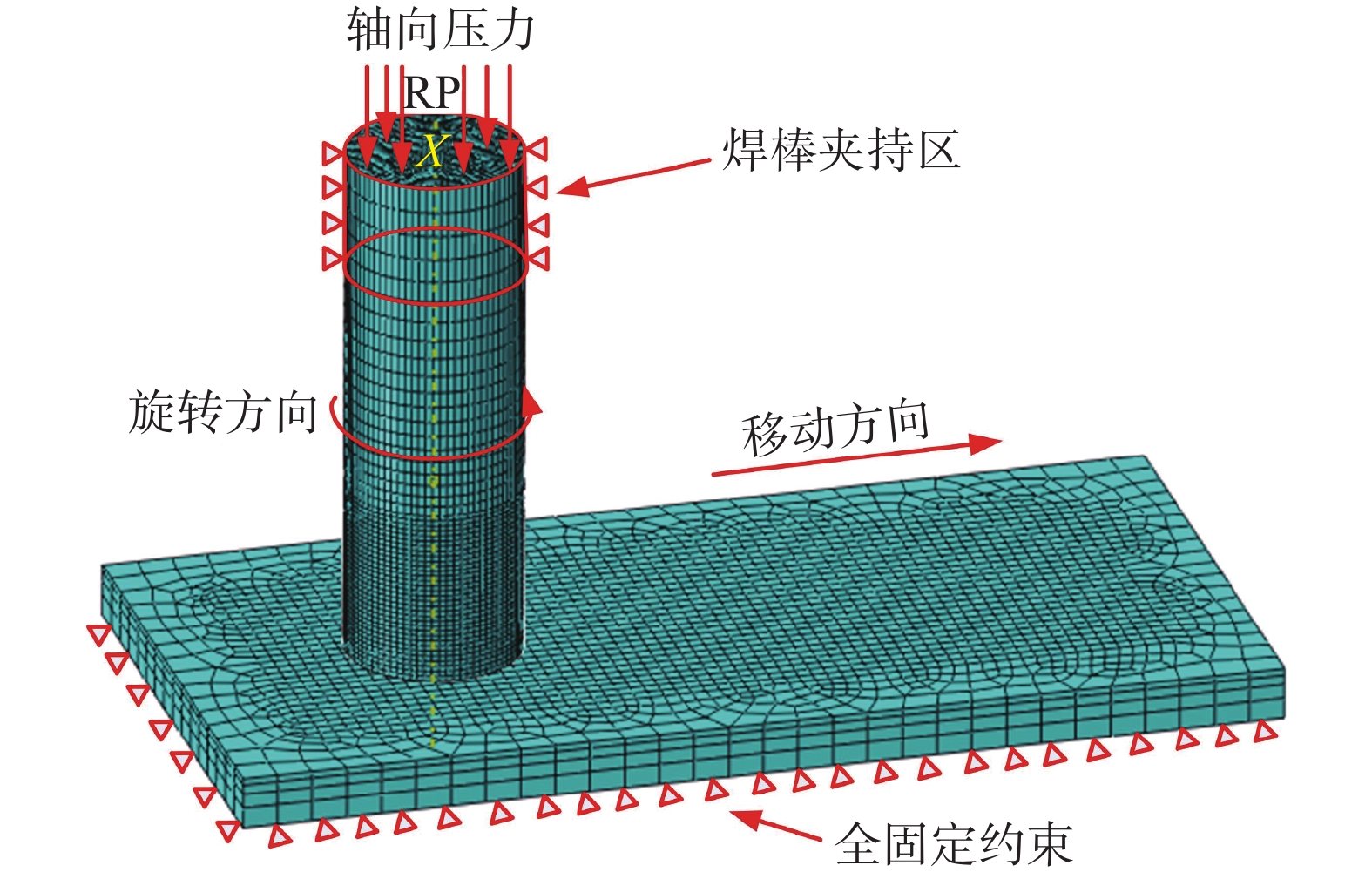

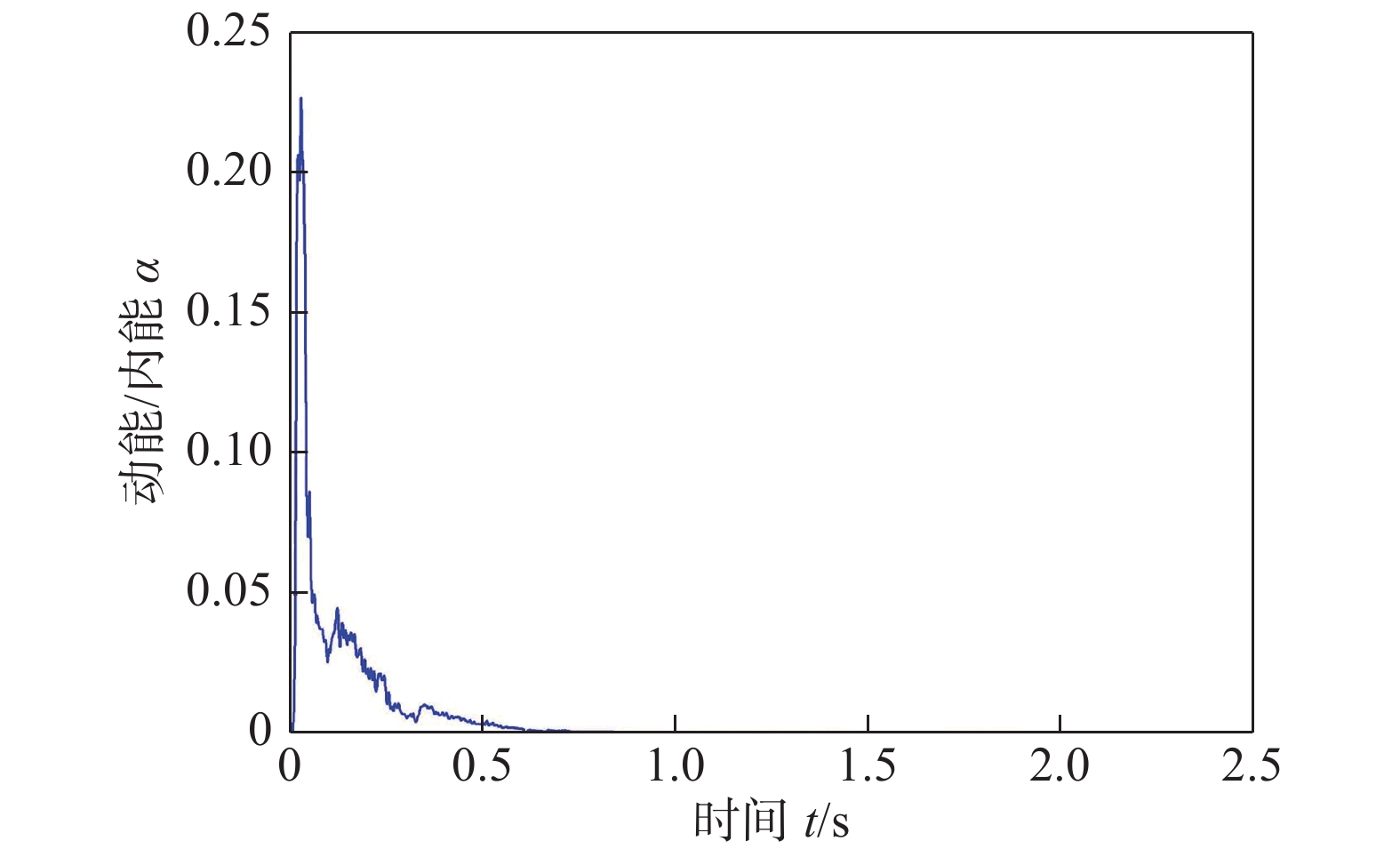

图 2 有限元模拟动能与内能变化曲线
Figure 2. Finite Element Simulation of kinetic energy and internal energy change curve
![]()

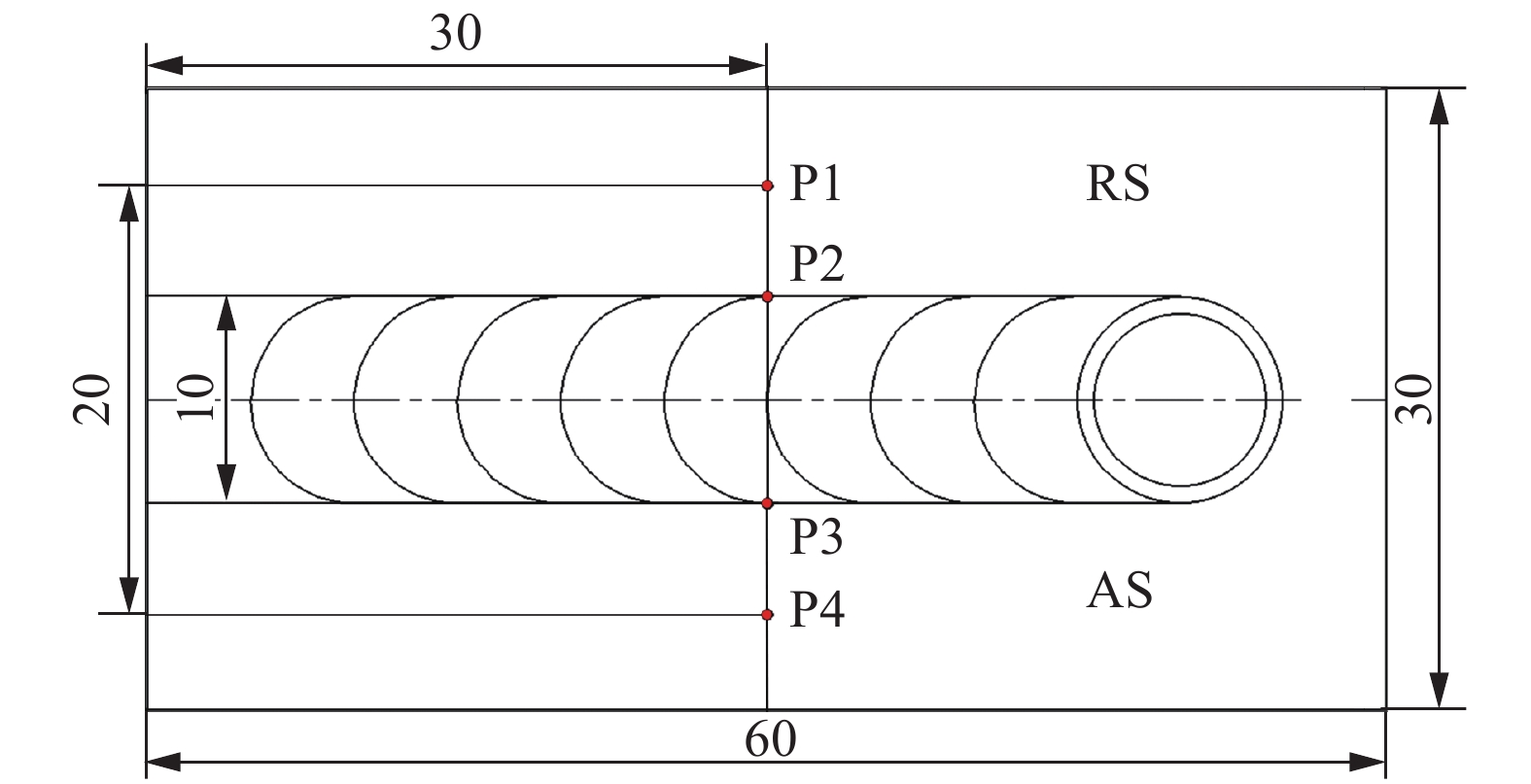

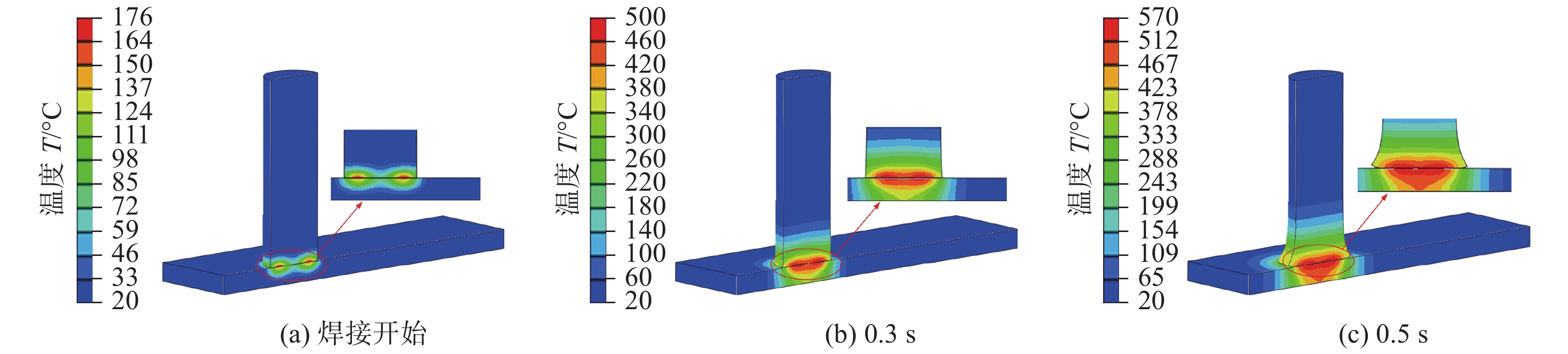

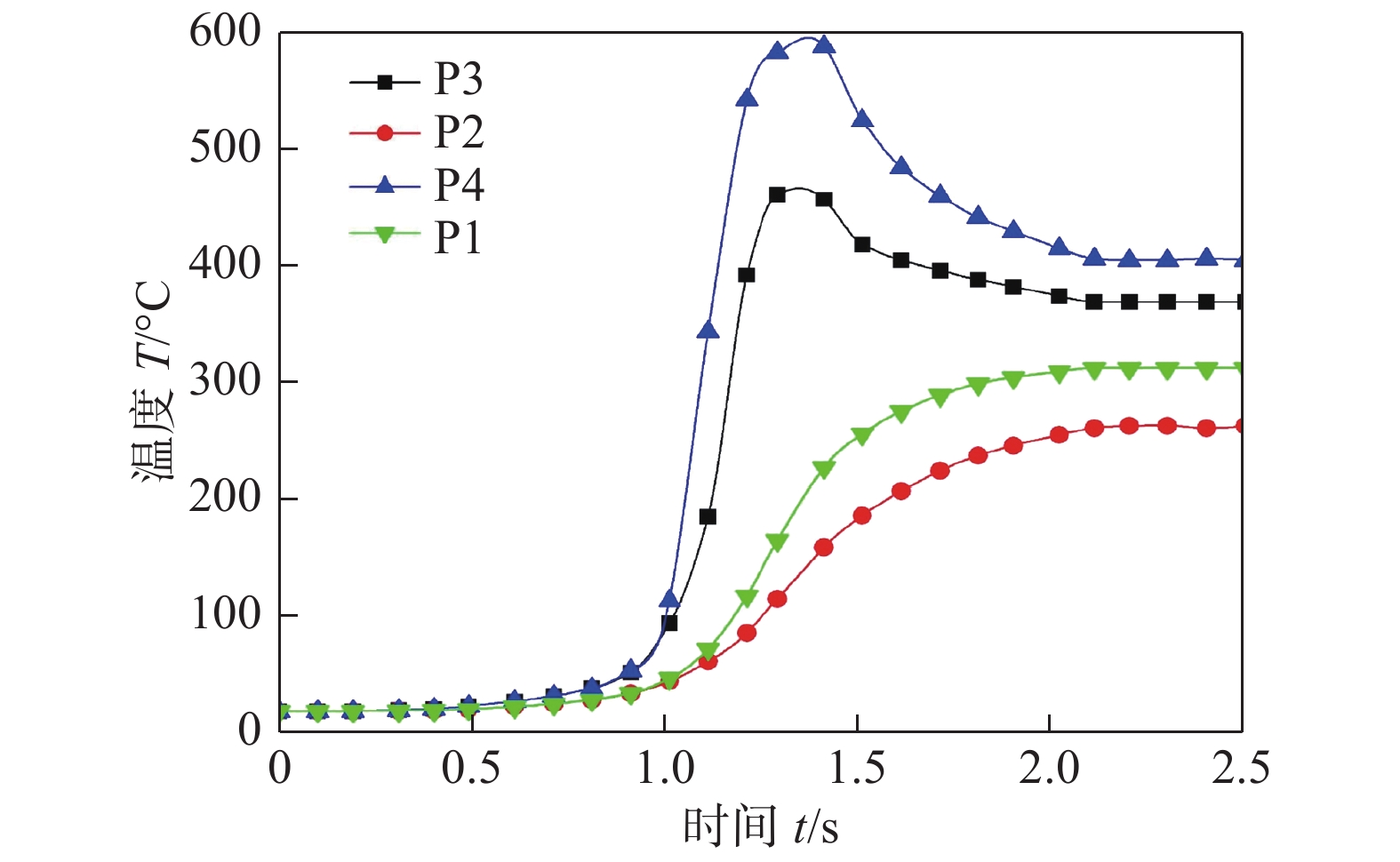

图 7 焊板不同测量位置温度变化曲线
Figure 7. Temperature change curve of different measuring position of welding plate
![]()

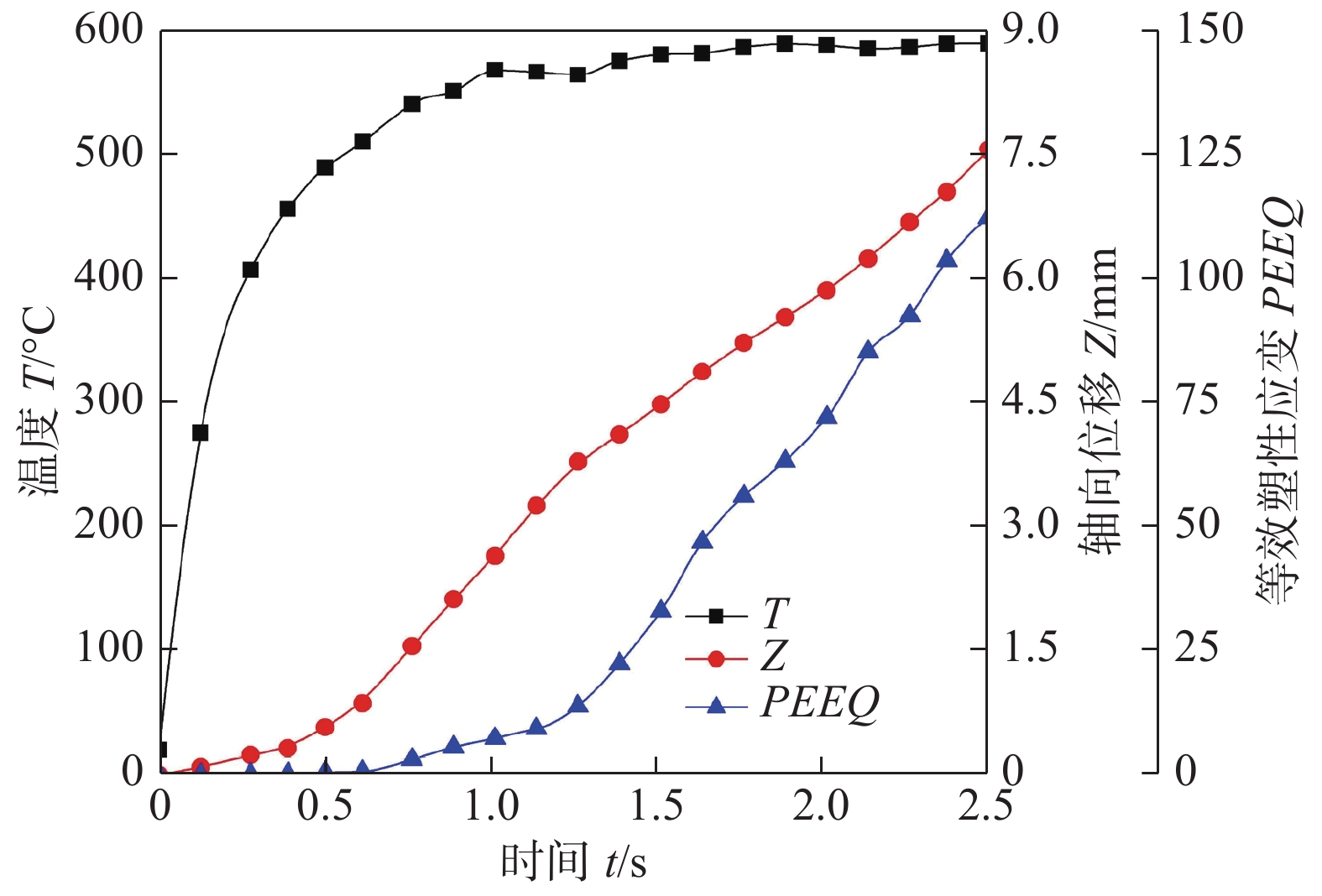

图 9 焊棒中心温度、塑性变形、轴向缩短量变化曲线
Figure 9. Variation curves of center temperature, plastic deformation and axial shortening of welding rod.
![]()

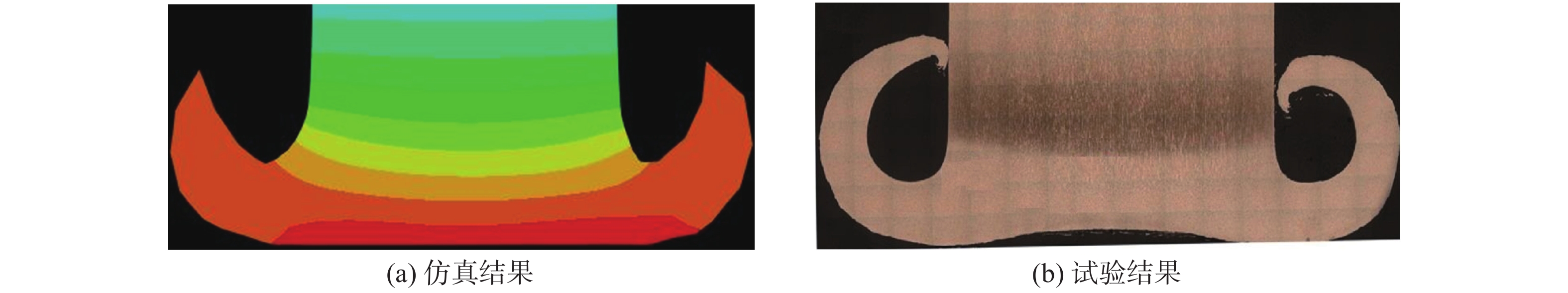

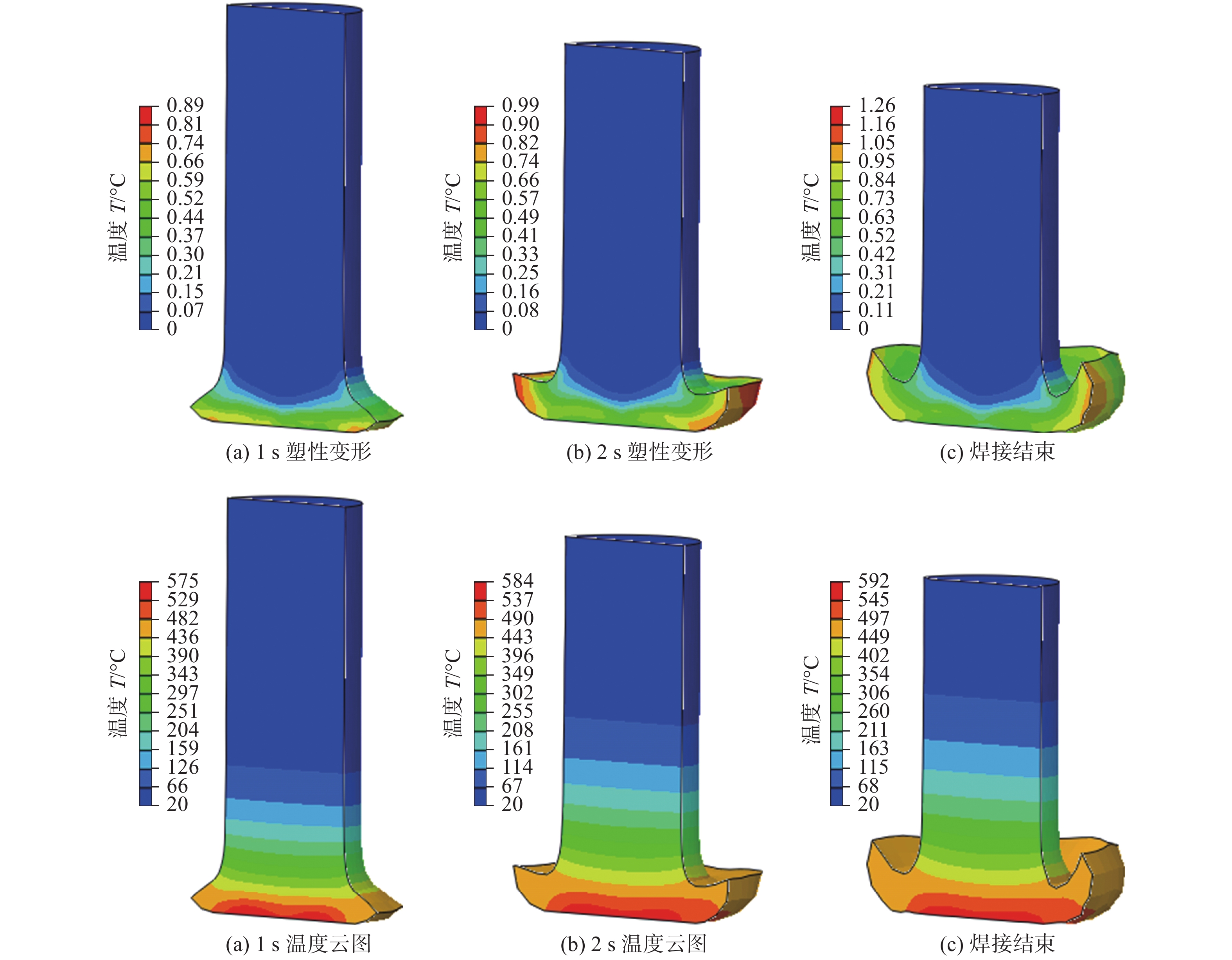

图 10 不同时刻焊棒的温度和塑性变形图
Figure 10. Temperature and plastic deformation of the welding rod at different time
表 1 AA6061铝合金的热物理参数
Table 1 Thermal physical parameters of aluminum alloy AA6061
温度
T/℃热导率
λ/(W·m–1·K–1)比热容
C /(J·kg–1·K–1)杨氏模量
E/GPa25.0 167 896 68.90 37.8 170 920 68.54 93.3 177 978 66.19 148.9 184 1 004 63.09 260.0 201 1 052 53.99 315.6 207 1078 47.48 371.1 217 1 104 40.34 426.7 223 1 133 31.72
下载: 导出CSV
表 2 AA6061铝合金的Johnson-Cook本构参数
Table 2 Johnson-Cook constitutive parameters of AA6061 aluminum alloy
屈服强度 ReL/MPa 硬化常数 B/MPa 系数 C 硬化指数 n 软化指数 m 熔点 Tmelt/K 室温 Troom/K 324 114 0.002 0.42 1.34 925 298
下载: 导出CSV
-
[1] 张 旭. 管线钢摩擦堆焊工艺与组织性能研究[D]. 天津: 天津大学, 2017. [2] 张彦华, 姚君山. 耗材摩擦焊技术及其应用前景[J]. 中国机械工程, 2000, 11(9): 1010 − 1012. doi: 10.3321/j.issn:1004-132X.2000.09.014 Zhang Yanhua, Yao Junshan. Consumable-rod friction welding technology and its application prospects[J]. China Mechanical Engineering, 2000, 11(9): 1010 − 1012. doi: 10.3321/j.issn:1004-132X.2000.09.014
[3] Fitseva V, Hanke S, Santos J F D. Influence of rotational speed on process characteristics in friction surfacing of Ti-6Al-4V[J]. Materials and Manufacturing Processes, 2017, 32(5): 557 − 563. doi: 10.1080/10426914.2016.1257799
[4] Galvis J C, Oliveira P H F, Hupalo M F, et al. Influence of friction surfacing process parameters to deposit AA6351-T6 over AA5052-H32 using conventional milling machine[J]. Journal of Materials Processing Technology, 2017, 245: 91 − 105. doi: 10.1016/j.jmatprotec.2017.02.016
[5] Hanke S, Sena I, Coelho R S, et al. Microstructural features of dynamic recrystallization in alloy 625 friction surfacing coatings[J]. Materials and Manufacturing Processes, 2017, 33(3): 270 − 276.
[6] Rafi H K, Ram G D J, Phanikumar G, et al. Friction surfaced tool steel (H13) coatings on low carbon steel: A study on the effects of process parameters on coating characteristics and integrity[J]. Surface and Coatings Technology, 2010, 205(1): 232 − 242. doi: 10.1016/j.surfcoat.2010.06.052
[7] Hanke S, Santos J F D. Comparative study of severe plastic deformation at elevated temperatures of two aluminium alloys during friction surfacing[J]. Journal of Materials Processing Technology, 2017, 247: 257 − 267. doi: 10.1016/j.jmatprotec.2017.04.021
[8] 李付国, 聂 蕾, 李庆华, 等. GH4169合金惯性摩擦焊接过程组织计算与预测[J]. 焊接学报, 2002, 23(1): 30 − 33. doi: 10.3321/j.issn:0253-360X.2002.01.009 Li Fuguo, Nie Lei, Li Qinghua, et al. Microstructure simulation and prediction of IN-718 superalloy in inertial friction welding[J]. Transactions of the China Welding Institution, 2002, 23(1): 30 − 33. doi: 10.3321/j.issn:0253-360X.2002.01.009
[9] 张全忠, 张立文, 桂方亮, 等. GH4169合金连续驱动摩擦焊接过程三维数值模拟[J]. 塑性工程学报, 2005, 12(6): 109 − 113. doi: 10.3969/j.issn.1007-2012.2005.06.026 Zhang Quanzhong, Zhang Liwen, Gui Fangliang, et al. 3-D numerical simulation of continuous-drive friction welding process of GH4169 alloy[J]. Journal of Plasticity Engineering, 2005, 12(6): 109 − 113. doi: 10.3969/j.issn.1007-2012.2005.06.026
[10] Riahi M, Nazari H. Analysis of transient temperature and residual thermal stresses in friction stir welding of aluminum alloy 6061-T6 via numerical simulation[J]. The International Journal of Advanced Manufacturing Technology, 2011, 55(1–4): 143 − 152. doi: 10.1007/s00170-010-3038-z
[11] Mehra V, Pahari S, Savita A N, et al. Tip failure and residual velocity in impact of hollow Al-6061 T6 projectiles on thin Al-6061 T6 Plates[J]. Procedia Engineering, 2017, 173: 271 − 277. doi: 10.1016/j.proeng.2016.12.012
[12] Boldyrev I S, Shchurov I A, Nikonov A V. Numerical simulation of the aluminum 6061-T6 cutting and the effect of the constitutive material model and failure criteria on cutting forces’ prediction[J]. Procedia Engineering, 2016, 150: 866 − 870. doi: 10.1016/j.proeng.2016.07.031
[13] 梁荣环. TC4钛合金线性摩擦焊接过程数值模拟研究[D]. 南昌: 南昌航空大学, 2014. [14] 王陆钊, 侯振国, 陈晓霞, 等. 铝合金搅拌摩擦焊完全热力耦合数值模拟[J]. 金属加工: 冷加工, 2016(S1): 690 − 692. Wang Luzhao, Hou Zhenguo, Chen Xiaoxia, et al. Complete thermo-mechanical coupling numerical simulation of friction stir welding of aluminium alloy[J]. Metal Working (Metal Cutting), 2016(S1): 690 − 692.
[15] Vilaca P, Gandra J, Vidal C. Linear friction based processing technologies for aluminum alloys: surfacing, stir welding and stir channeling[M]. Aluminium Alloys-New Trends in Fabrication and Applications, 2012.
[16] 姚君山, 孟凡新, 王国庆, 等. 耗材摩擦焊中的耗材过渡与成形机理研究[J]. 中国机械工程, 2002, 13(23): 2052 − 2056. doi: 10.3321/j.issn:1004-132X.2002.23.019 Yao Junshan, Meng Fanxin, Wang Guoqing, et al. Study on the mechanism of metal transferring and shaping during consumable-rod friction welding[J]. China Mechanical Engineering, 2002, 13(23): 2052 − 2056. doi: 10.3321/j.issn:1004-132X.2002.23.019
-
