Research progress in dissimilar material brazing technology and applications
-
摘要:
轻量化、高性能与多功能化是当前制造业的新兴趋势,在该趋势的推动下,材料连接技术逐渐向多材料、混合结构的方向发展,从而显著提升了对异质材料连接的需求. 异质材料连接技术能够充分发挥不同材料的性能优势,满足现代工业对结构轻量化、功能集成化和性能最优化的要求. 然而,异质材料在连接过程中,由于物理、化学和热力学性质的显著差异,容易出现物相不相容、受热不均匀、界面化合物不稳定、残余应力较大等难题. 针对上述问题,文中总结了近年来异质材料钎焊领域的相关研究和应用现状. 首先,从被连接母材的角度出发,介绍了陶瓷与陶瓷基复合材料、高温合金和金刚石3种典型异质材料钎焊问题的研究热点;其次,从连接方法的角度,介绍了熔钎焊等新兴钎焊工艺和技术的发展现状;最后,总结了异质材料钎焊技术的应用以及所面临的关键问题,并对其未来的发展趋势和技术难点进行了展望.
Abstract:Lightweight, high-performance, and multifunctional designs are emerging trends in modern manufacturing. Driven by these trends, material joining technologies are gradually evolving toward multi-material and hybrid structures, thereby increasing the demand for joining dissimilar materials. Dissimilar material joining technologies can fully leverage the performance advantages of different materials, meeting the requirements of modern industry for structural lightweighting, functional integration and performance optimization. However, during the joining of dissimilar materials, challenges such as material incompatibility, uneven heating, unstable interfacial compounds, and significant residual stresses often arise. In response to these problems, recent research and application progress in the field of brazing for dissimilar materials were summarized. Firstly, from the perspective of joined base materials, the research hotspots in brazing three typical types of dissimilar materials were introduced, including ceramics and ceramic matrix composites, high temperature alloy, and diamond. Subsequently, from the perspective of joining methods, the development status of emerging brazing processes and technologies was reviewed, such as welding-brazing. Finally, the applications of brazing technologies in dissimilar materials were summarized, and the key challenges faced were highlighted, providing an outlook on future development trends and technical difficulties.
-
Keywords:
- dissimilar material /
- brazing /
- ceramics /
- superalloys /
- diamond
-
-
图 1 润湿过程开始(780 ℃)和结束(880 ℃)时不同钎料成分在陶瓷表面润湿铺展行为(原子分数,%)[11]
Figure 1. Wetting and spreading behavior of different brazing material compositions on ceramic surfaces at the beginning (780 ℃) and end (880 ℃) of the wetting process. (a) 0%Ti(780 ℃); (b) 0%Ti(880 ℃); (c) 3.40%Ti(780 ℃); (d) 3.40%Ti(880 ℃); (e) 7.28%Ti(780 ℃); (f) 7.28%Ti(880 ℃); (g) 10.73%Ti(780 ℃); (h) 10.73%Ti(880 ℃); (i) 14.8%Ti(780 ℃); (j) 14. 8%Ti(880 ℃); (k) wetting angle size changing with Ti element content in brazing material
图 2 SiC陶瓷/Zr合金接头微观组织[19]
Figure 2. Microstructure of SiC ceramic/Zr alloy joint. (a) brazing temperature
1040 ℃, holding time for 20 min; (b) enlarged area in Fig. 2(a)图 3 Ni/Cu/AgCuNiMn原位合成高镍AgCuNiMn钎料装配示意图[35]
Figure 3. Assembly diagram of Ni/Cu/AgCuNiMn in-situ synthesized high nickel AgCuNiMn brazing material

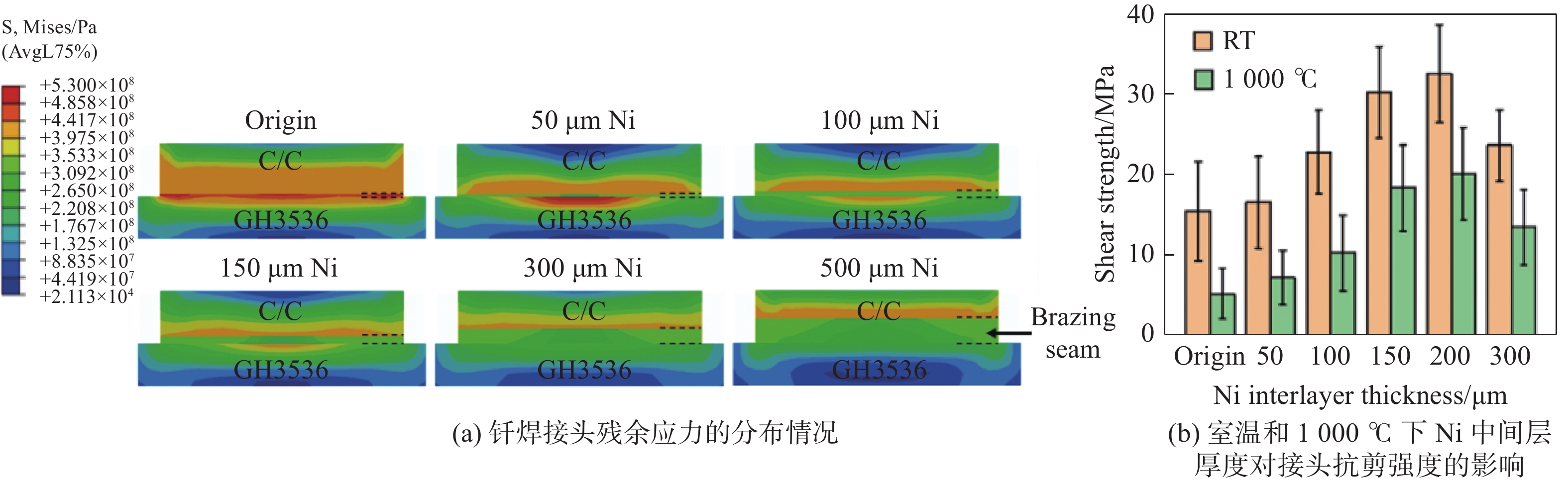

图 4 不同厚度Ni中间层BNi-2钎料的接头残余应力与抗剪强度[41]
Figure 4. Residual stress and shear strength of joints of BNi-2 brazing material with different thicknesses of Ni interlayer. (a) distribution of residual stresses in brazed joints; (b) influence of Ni interlayer thickness on the shear strength of joints at room temperature and

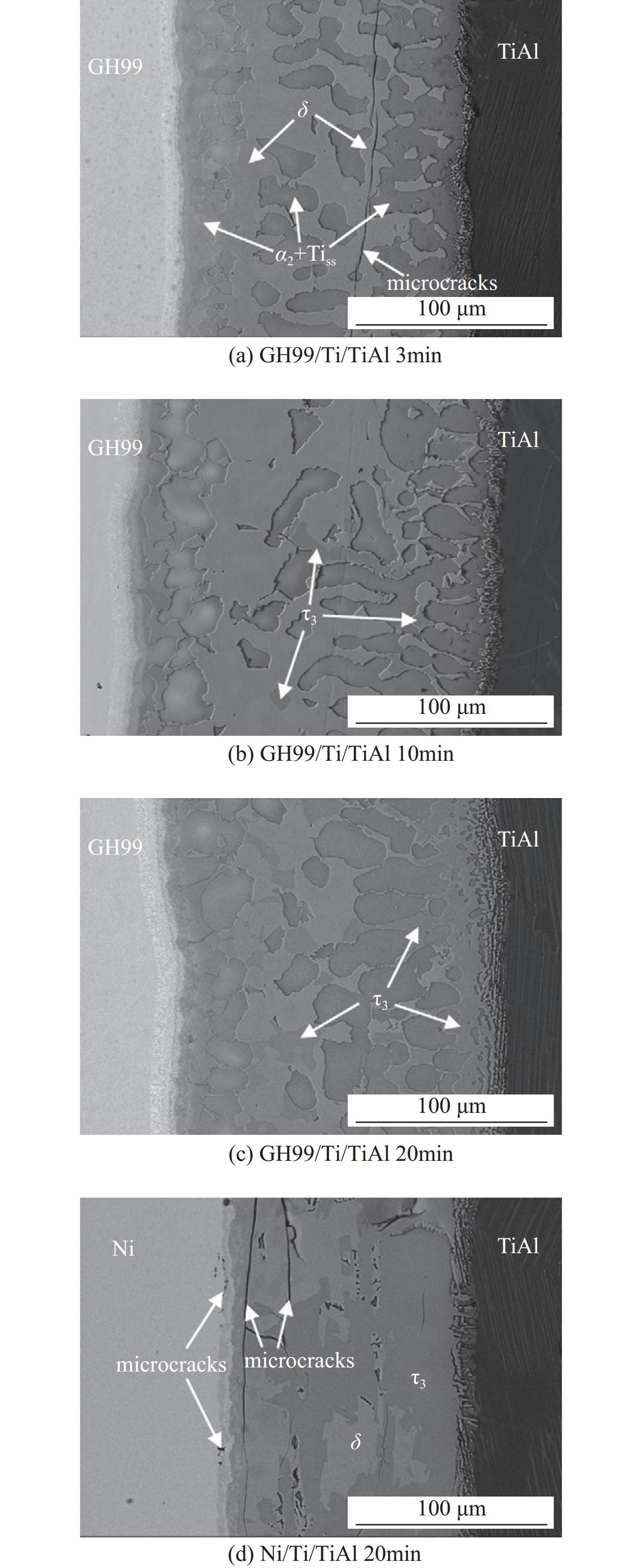

1000 ℃图 5 接头在970 ℃下钎焊不同时间的界面微观结构[43]
Figure 5. Interfacial microstructure of joints brazed for different times for different times at 970 ℃. (a)GH99/Ti/TiAl 3min; (b)GH99/Ti/TiAl 10min; (c)GH99/Ti/TiAl 20min; (d)Ni/Ti/TiAl 20min
图 6 Ni-Cr复合钎料钎焊金刚石形貌[51]
Figure 6. Morphology of brazed diamond with Ni-Cr composite brazing filler metal. (a) 0%Zr; (b) 0.5%Zr; (c)1%Zr; (d) 1.5%Zr

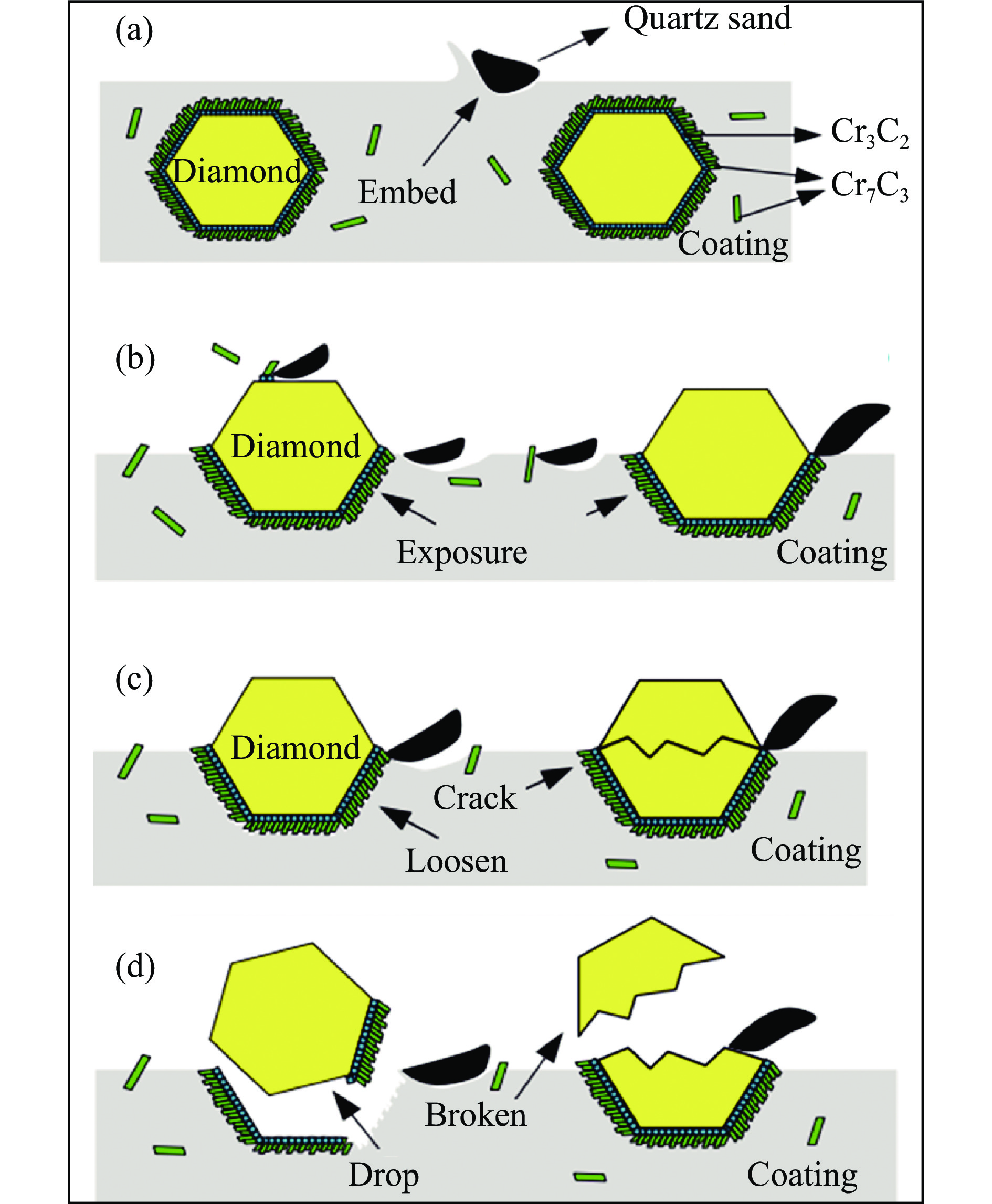

图 7 钎涂层磨损过程[61]
Figure 7. Wear process of brazing coating

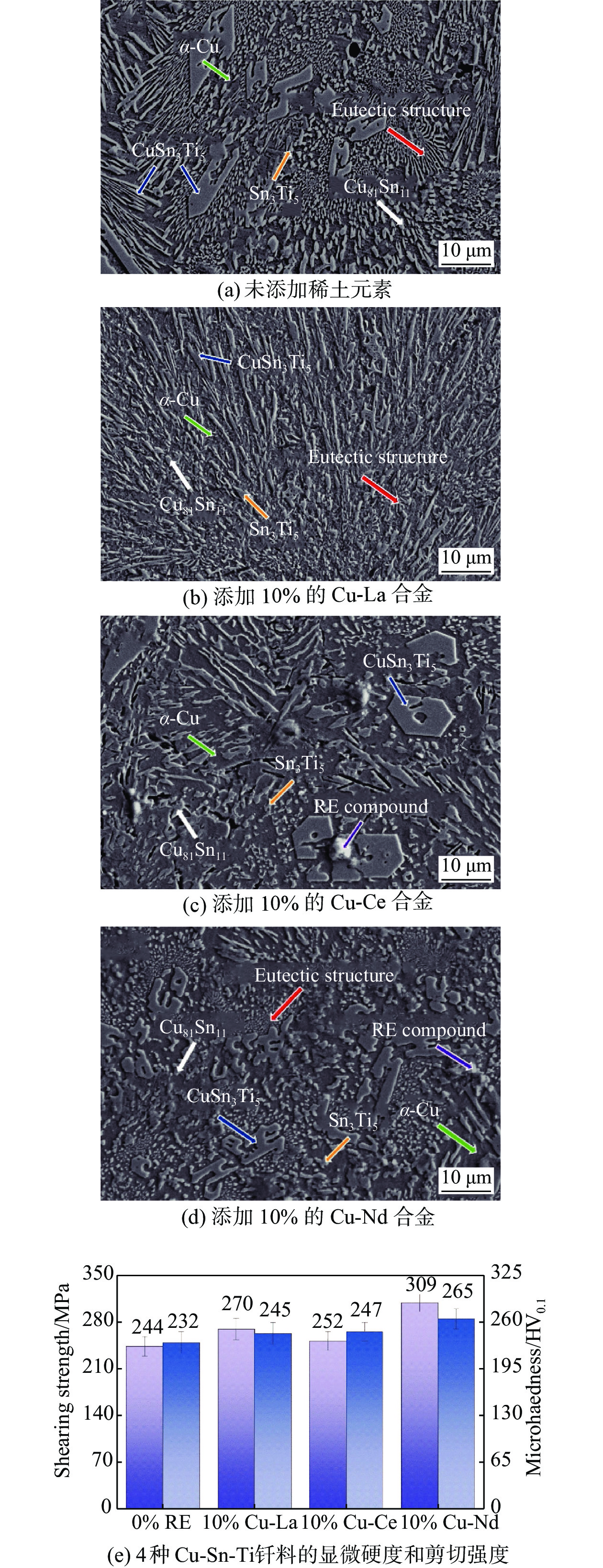

图 8 添加不同稀土元素Cu-Sn-Ti钎料的微观组织(质量分数,%)[70]
Figure 8. Microstructure of Cu-Sn-Ti brazing filler metal with different rare earth elements added. (a) no addition of rare earth elements; (b) addition of 10% Cu-La alloy; (c) addition of 10% Cu-Ce alloy; (d) addition of 10% Cu-Nd alloy; (e) microhardness and shear strength of four Cu-Sn-Ti brazing filler metal
图 9 焊缝中间区IMCs形貌[77]
Figure 9. IMCs morphology in the middle zone of the welds. (a) conventional laser brazed joint; (b) rotary laser brazed joint
图 10 在无磁场和交变间歇磁场作用下的铜侧界面SEM[82]
Figure 10. SEM of the copper side interface under no magnetic field and alternating intermittent magnetic field. (a) no magnetic field; (b) alternating intermittent magnetic field
图 11 LFB-TiC接头典型界面[83]
Figure 11. LFB-TiC joint typical interface. (a) interface microstructure; (b) enlarged of area (b) marked interface; (c) enlarged of area (c) marked in interface; (d) interface Al element; (e) interface Ti element; (f) interface C element

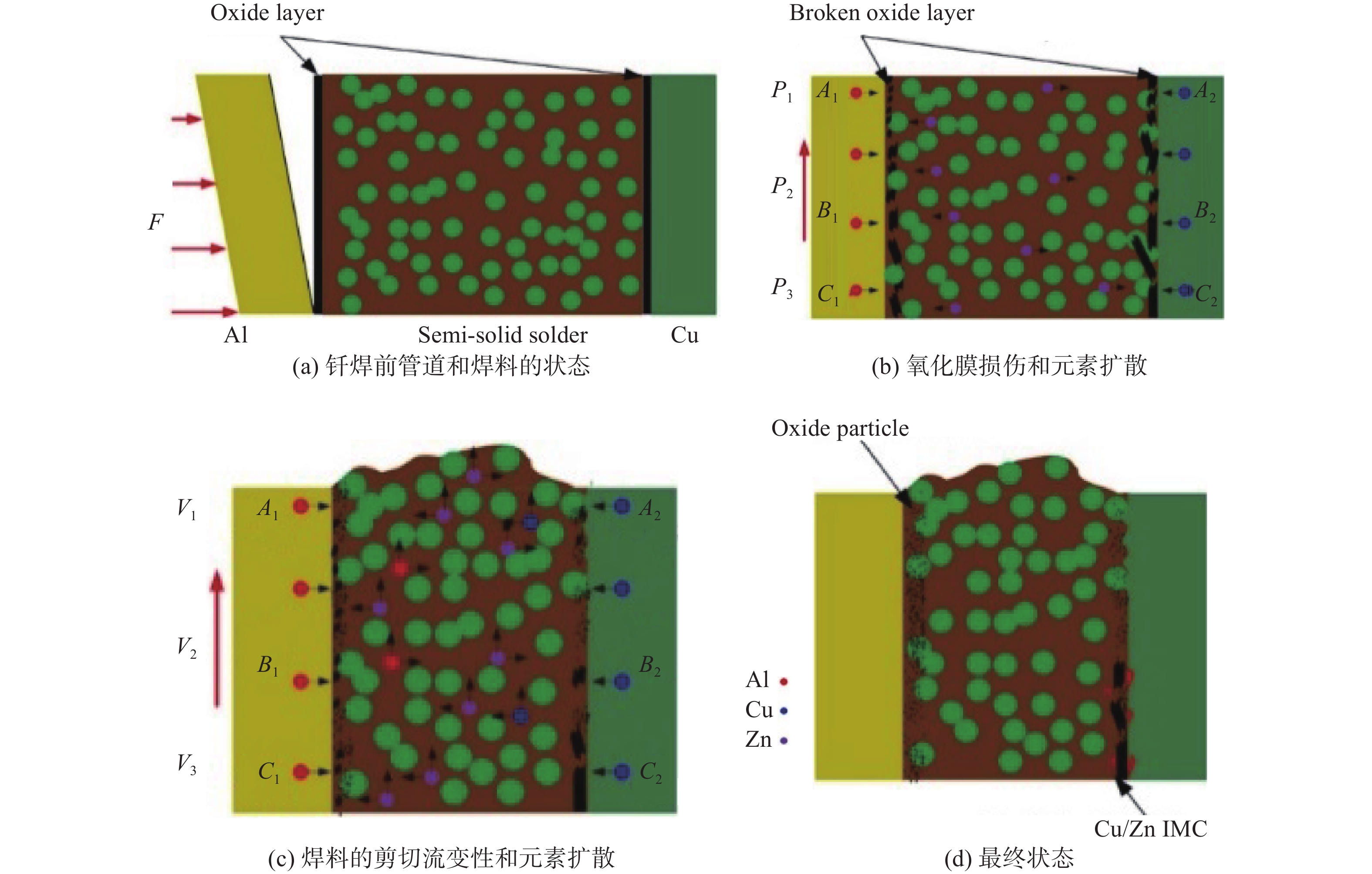

图 12 Cu/Al管材的MPASSB连接机理[98]
Figure 12. MPASSB joining mechanism of Cu/Al pipe. (a) state of pipe and solder before brazing; (b) oxide film damage and element diffusion; (c) shear rheology and element diffusion; (d) final state

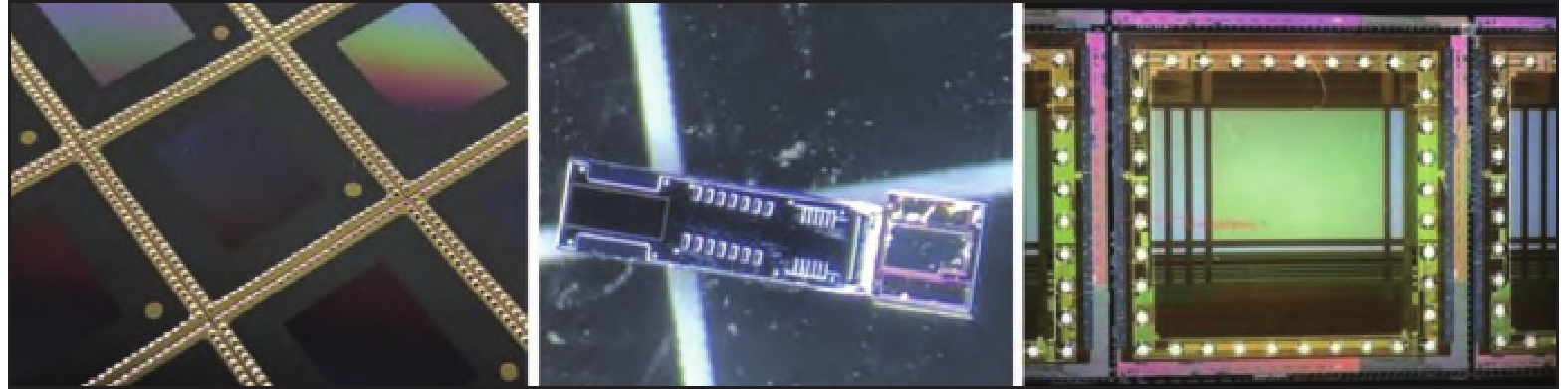

图 13 激光软钎焊在光学组件封装领域应用[102]
Figure 13. Applications of laser soft brazing in the field of optical component packaging

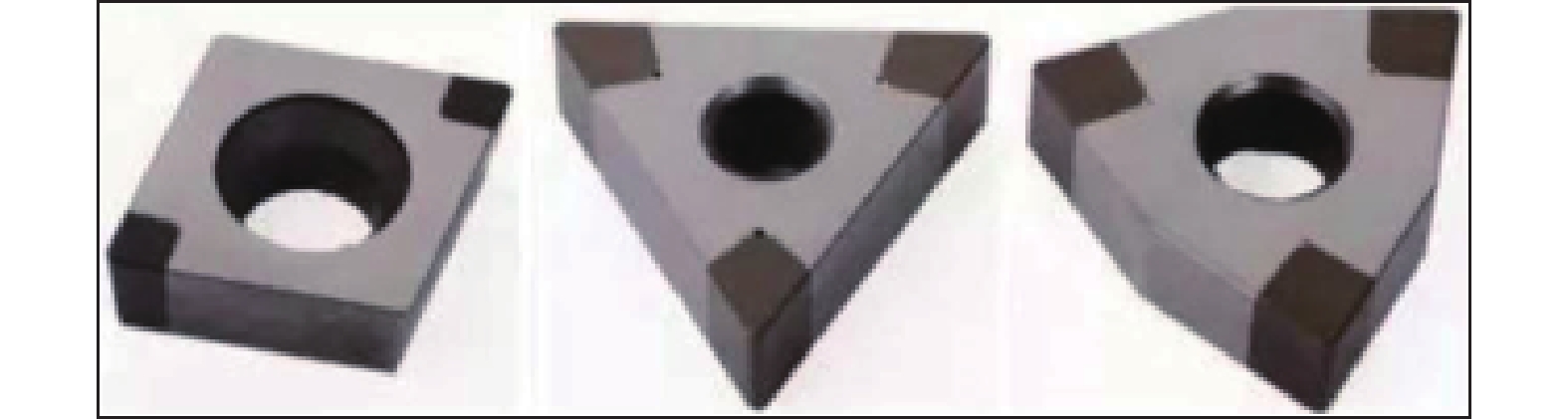

图 14 焊接式PCD刀具[113]
Figure 14. Welding type PCD tool

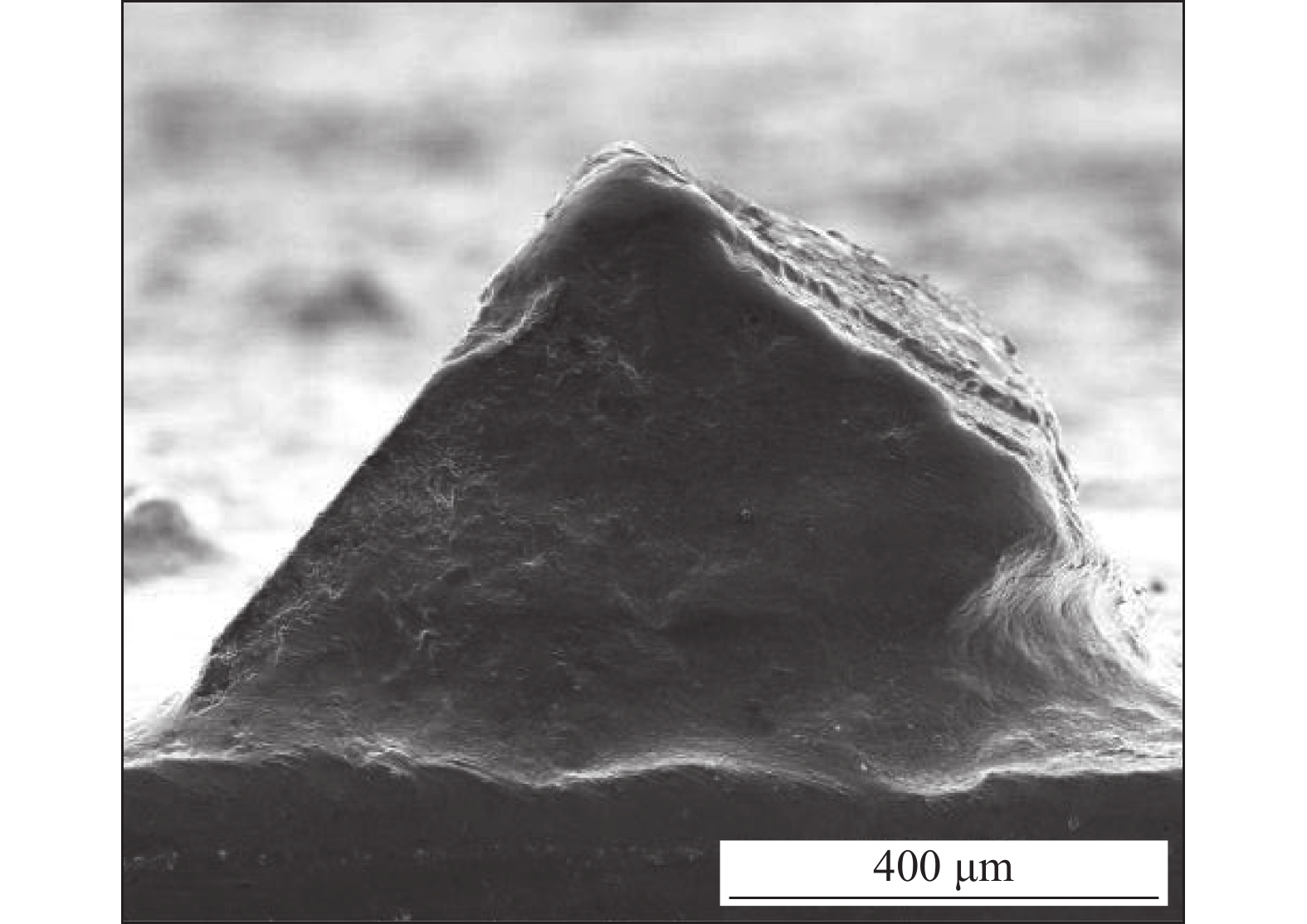

图 15 镀钛CBN磨粒的焊后形貌[114]
Figure 15. Postweld morphology of titanium plated CBN abrasive particles
表 1 图2(b)中相应点位的EDS结果(原子分数,%)[19]
Table 1 Corresponding points EDS results in Fig. 2(b)
点 Cr Fe Co Ni Cu Zr Sn 可能相 A 51.03 10.24 1.93 0.90 0.50 35.39 0.01 Zr(Fe, Cr)2 B 0.71 0.41 0.48 0.58 3.15 91.55 3.12 Zr(s, s) C 0.17 0.98 1.79 3.67 26.25 67.12 0.01 Zr2Cu D 5.40 9.61 6.65 6.35 6.35 65.44 0.20 HEAP E 0.83 3.32 3.50 2.35 1.59 69.96 18.46 (Zr, Sn) -
