Temperature monitoring of the FSW weld zone of the fuel tank for heavy launch vehicle
-
摘要:
重型运载火箭燃料贮箱目前通常采用2219-T8高强铝合金,贮箱壁厚高达18 mm,采用搅拌摩擦焊(friction stir welding,FSW)工艺实现筒段纵缝和环缝焊装,FSW核心区极值温度直接影响焊接质量,但由于搅拌头旋转、轴肩遮挡等原因导致FSW核心区温度获取困难. 文中提出了一种FSW核心区极值温度在位表征方法,首先,基于Deform-3D建立了18 mm厚2219-T8铝合金的FSW温度场仿真模型,实现了18 mm厚2219-T8铝合金平板和环焊温度场表征;然后,基于温度场仿真模型,提取焊件表面特征点温度与核心区极值温度的数据集,采用支持向量回归机算法(support vector regression, SVR)建立FSW核心区极值温度预测模型;最后,红外热像仪实时测得焊件表面特征点温度,结合核心区极值温度预测模型,实现贮箱FSW核心区极值温度监测. 试验结果表明,FSW核心区峰值温度监测相对误差<7.22%,核心区最低温度相对误差<9.54%,证实了FSW核心区极值温度监测方法的有效性.
Abstract:At present, 2219-T8 high strength aluminum alloy is usually used in the fuel tank of heavy launch vehicle, and the thickness of the tank is up to 18 mm. Friction stir welding (FSW) is used for longitudinal and girth welding of tank shell. The extreme temperatures of the weld zone directly affect the welding quality, but it is difficult to obtain the temperatures of weld zone during the welding due to the rotation of the tool and the shielding of the shoulder. This paper proposes an in-situ characterization method of extreme temperatures in FSW weld zone. Firstly, based on Deform-3D, the FSW temperature field simulation model of 18 mm thick 2219-T8 aluminum alloy is established, which realizes the temperature field characterization of 18 mm thick 2219-T8 aluminum alloy flat plates and girth welding. Then, based on the temperature field simulation model, the data sets of the surface feature point temperature and extreme temperatures of the weld zone are extracted. Combined with the support vector regression algorithm, the extreme temperatures prediction model of the weld zone is established. Finally, the surface temperature of the weldment is measured in real time by infrared thermal imager. Combined with the extreme temperatures prediction model of the weld zone, the extreme temperatures of the weld zone in the FSW process are monitored. The experimental results show that the relative error of the peak temperature detection in the FSW weld area is less than 7.22%, and the relative error of the minimum temperature in the weld area is less than 9.54%, and the results confirm the effectiveness of the extreme temperature detection method in the FSW weld area.
-
0. 序言
304不锈钢在室温下具有稳定的奥氏体组织,同时因其具有良好的塑性、韧性、焊接性及成形性而广泛应用于食品、建筑给水及直饮水管道等众多领域[1-4].然而在实际工程应用时,过高的硬度和强度往往会阻碍不锈钢管的二次加工,另外国家标准《GB/T 24593—2018 锅炉和热交换器用奥氏体不锈钢焊接钢管》要求钢管交货状态时的硬度应不大于200 HV. 因此在304奥氏体不锈钢管生产时需添加后续的热处理工艺以提高材料的塑性和韧性,降低其硬度和强度[5].
刘巍等人[6]指出SA213-TP304奥氏体不锈钢弯管经固溶处理后,其形变强化效果得到较大程度消除.周慧等人[7]指出304不锈钢的塑性随着固溶温度升高逐渐增加,而抗拉强度降低比较快.史勤益等人[8]发现将304不锈钢加热至1 050 ℃,保温30 min后,组织为单一的奥氏体,但后续施加水冷获得了较大的内应力,导致其硬度高于空冷,郭国林等人[9]也发现水冷比空冷具有更高的硬度.唐峰等人[10]认为304不锈钢的最佳固溶工艺为加热至1 140 ℃,保温35 min. 由此可见,固溶温度、保温时间及后续的冷却速度会对304不锈钢的微观组织和力学性能产生较大的影响.
304奥氏体不锈钢薄壁管生产线是持续运行的,焊后的固溶处理工艺因此被称为在线固溶处理,由于其保温时间较短,以上文献中的热处理工艺参数均不能在生产线应用.另外,目前大部分企业固溶处理时采用氢气作为保护气,氢气是一种易燃易爆气体,生产时存在一定的安全隐患.同时氢气需要通过氨分解设备制得,设备运行周期长,安全性差,成本较高.因此本文通过将固溶处理保护气更换为纯氩气(纯度99.99%),研究不同固溶温度及冷却速度时不锈钢管焊缝和母材微观组织及力学性能的变化,为企业不锈钢管的生产标准化提供一定的基础数据与理论支撑.
1. 试验方法
试验采用304奥氏体不锈钢作为研究对象,厚度为0.8 mm,该材料的化学成分如表1所示.
表 1 304不锈钢的化学成分(质量分数,%)Table 1. Chemical composition of 304 stainless steelC Mn Cr Ni Si Co Fe 0.054 0.956 18.18 10.21 0.325 0.236 余量 不锈钢带在前期经卷板机逐级卷制成管状,而后焊接成为钢管,其外径为32 mm,焊接工艺为TIG焊,焊接速度为1.30 m/min.后续工艺为固溶处理,该工艺由加热阶段和冷却阶段构成,如图1所示.加热阶段设备包括一台GGC100高频感应加热设备、铜管线圈及水冷循环机.冷却阶段设备由石墨换热器、水管等构成.通过调整高频感应加热设备的功率可以改变固溶处理加热温度,通过调节石墨换热器的进出水流量、管件走出石墨换热器是否冲水来控制固溶处理的冷却速度.
在试验前,固溶处理通道提前10 min通保护气,以保证腔体内无杂质气体残留.测温时将红外测温仪紧贴玻璃管,其位置位于线圈后方,如图1所示. 通过数字显示器读取数值,因此示数仅为加热后的温度. 试验结束后,使用线切割制取试样.经研磨、抛光后,采用硝酸、盐酸、蒸馏水配比为1∶1∶1的稀王水对试样进行腐蚀,之后对金相组织进行观察.
由于硬度是影响管件后续二次加工的重要指标,所以需要对不同试验条件下获得的试样进行硬度测试.试样经抛光后表面无划痕即可进行试验,施加载荷为1 kgf,加载时间为10 s.在不锈钢管生产中存在模具对管件的挤压变形不均匀现象,致使不锈钢管横截面母材硬度不均匀,因此对于整个钢管横截面的母材位置,随机选取30个点进行硬度测试,结果取平均值.而焊接接头区域是钢管结构中最为薄弱的环节,因此还需对焊缝的硬度进行测量.对于焊缝试样,打点位置为距离管件内外表面0.4 mm处,从焊缝中心向两侧每隔0.2 mm打一个点.由于焊缝的对称性,因此焊接接头的硬度分布曲线仅展示其一侧的硬度.
在不锈钢管交货时,为了保证管件的塑韧性符合标准,还需对其进行扩口与压扁试验,其原理如图2所示.在扩口试验时,平稳地对圆锥形顶芯施加力F使其压入试样端部进行扩口,直至达到所要求的外径.在压扁试验时,将焊缝保持在水平位置,控制操纵杆使压板向着固定板方向移动,从而将管件压扁.根据国标《GB/T 242—2007 金属管扩口试验方法》和《GB/T 246—2017 金属材料管压扁试验方法》,试验结束时,在不使用放大镜的情况下观察扩口和压扁的管件,如无可见裂纹,应评定为合格.
2. 试验结果与分析
2.1 氩气保护条件下不同固溶温度对不锈钢管组织及性能的影响
在保护气为纯氩气时,通过调整感应加热设备功率来改变固溶处理温度,固溶温度由890 ℃提高到1 035 ℃.后续冷却条件均为“全开,不加水冷”(即石墨冷却管的阀门开至最大,管件从石墨冷却管出来后不用水冲),试验参数如表2所示.
表 2 固溶处理工艺参数Table 2. Solution treatment process parameters序号 设备功率P/kW 固溶温度T/℃ A/C1 — — A2 505 890 A3 518 930 A4 528 970 A5 536 990 A6 540 1007 A7 557 1035 图3a为不同固溶处理温度时管件横截面母材的平均硬度,发现未采用固溶处理(组别A1)时,管件的平均硬度为211.9 HV,未变形的钢带母材平均硬度为173.1 HV,卷管成形后硬度提高了22.4%.在固溶处理后,管件母材的平均硬度值低于未固溶时的硬度值,且均低于200 HV.但随着固溶温度的提高,管件平均硬度变化不大,这可能是在管件截面取点位置不同导致的.其中组别A4的平均硬度最低,其值为188.7 HV,与未固溶时相比降低了11.0%.因此,使用氩气作为保护气对于降低管件硬度具有一定效果,满足国家标准GB/T 24593—2018的要求.
根据上文测定的不同固溶温度时管件母材平均硬度,选取组别A1(未固溶),A2,A4及A6,对不同固溶温度条件下焊接接头处的硬度进行测定.由于硬度测试位置确定,因此试验结果更能体现固溶温度对不锈钢管硬度的影响.组别A1,A2,A4及A6的硬度分布曲线如图3b所示,分析发现热影响区及母材的硬度值随着固溶温度的提高明显降低.而对于焊缝区,当固溶温度提高时,其硬度值略有降低.
图4和图5中a,b,c为组别A1和A4焊缝区、热影响区与母材的金相组织. 焊缝区中包含等轴晶与柱状晶,中心为等轴晶,柱状晶垂直于熔合线指向焊缝中心.焊缝凝固模式为FA模式[11],在不同固溶处理温度条件下,焊缝区的组织均由奥氏体和沿其晶界分布的骨骼状或者板条状的铁素体[12-13]组成.热影响区和母材均含有一定数量的孪晶.
图 4 A1组别焊接接头金相组织与SEM图Figure 4. Metallurgical structure and SEM diagram of welded joints in A1 group. (a) metallographic structure of welded zone; (b) metallographic structure of heat-affected zone; (c) metallographic structure of base metal; (d) SEM scanning diagram of welded zone; (e) SEM scanning diagram of heat-affected zone; (f) SEM scanning diagram of base metal图 5 A4组别焊接接头金相与SEM图Figure 5. Metallurgical structure and SEM diagram of welded joints in A4 group. (a) metallographic structure of welded zone; (b) metallographic structure of heat-affected zone; (c) metallographic structure of base metal; (d) SEM scanning diagram of welded zone; (e) SEM scanning diagram of heat-affected zone; (f) SEM scanning diagram of base metal依据国家标准《GB/T 6394—2017 金属平均晶粒度测定法》,采用直线截点法对焊缝中心、热影响区及母材位置进行晶粒尺寸测量.图6a为不同位置处晶粒的尺寸,分析发现,随着固溶温度的提升,焊缝的晶粒度略有增大,而热影响区与母材位置的晶粒明显增大.与未固溶时相比,组别A4焊缝中心、热影响区及母材的晶粒度分别增大了2.4%、37.5%与28.8%,并且孪晶的量大大减少.
为了进一步确定焊接接头析出相的分布情况,对不同固溶温度条件下的试样进行SEM电子扫描拍摄.图4和图5中 e,f,g为组别A1和A4管件的焊缝区、热影响区与母材的 SEM 扫描图片,分析发现提高固溶处理温度,焊缝区沿奥氏体晶界分布的铁素体变得不连续,其原因是固溶处理后铁素体产生部分溶解.同时在热影响区和母材的晶粒内部与晶界处存在着明显的块状析出物,通过图6b中EDS能谱分析确定块状析出物为(Fe,Cr)23C6[14-15],且固溶处理后热影响区与母材处块状析出物的数量降低.由于钢管在生产线中持续向前运动导致在线固溶处理保温时间较短,固溶处理不充分,在奥氏体晶界和晶粒内部仍存在着少量的块状析出物.
试验结果表明,采用固溶处理工艺时,焊缝区的铁素体变得不连续,产生少量溶解,同时该位置的晶粒度略有增大,两者共同作用导致焊缝区硬度的降低[16].而热影响区的晶粒度明显增大,析出物(Fe,Cr)23C6产生部分固溶,热影响区和母材的硬度降低[17]得比较明显.
2.2 氩气保护条件下不同冷却条件对不锈钢管性能的影响
在A2的加热条件下,通过调整初始冷却条件与最终冷却条件进行不同冷却速度试验,其中初始冷却条件为石墨冷却管进、出水流量,其状态可以是阀门全开和接近关闭.最终冷却条件为管件从石墨冷却管出来是否进行水冷,工艺参数如表3所示.
表 3 固溶处理工艺参数Table 3. Solution treatment process parameters序号 冷却条件 设备功率P/kW 固溶温度T/℃ B1 全开,不加水冷 505 890 B2 全开,加水冷 505 890 B3 接近关闭,不加水冷 505 890 B4 接近关闭,加水冷 505 890 图7为不同冷却条件下管件截面母材平均硬度及焊接接头硬度分布曲线.分析发现,通过调整初始冷却条件与最终冷却条件,管件焊缝区、热影响区及母材的硬度几乎不变.
图 7 不同冷却条件时硬度分布曲线Figure 7. Hardness distribution curve at different cooling conditions. (a) average hardness of base metal; (b) hardness distribution curve of welded joints at different initial cooling conditions; (c) hardness distribution curve of welded joints at different final cooling conditions钢管经感应加热后仍需通过较长的透明玻璃导管,之后进入石墨冷却管.而透明玻璃导管较薄,与空气直接接触,因此钢管在进入石墨冷却管前就已经进行了空冷.本试验中冷却条件对管件硬度影响不大,原因可能是在钢管进入石墨冷却管前温度就已快速降低至较低温度,已经达到了薄壁结构件固溶处理要求的空冷冷却条件[18].
2.3 氢气保护条件下不同固溶温度对不锈钢管组织及性能的影响
在304奥氏体不锈钢薄壁管生产流程中,目前大多企业采用氢气作为固溶保护气.为了进一步分析两种不同保护气条件下不锈钢管焊缝和母材的组织、性能差异,开展了氢气保护气条件下不同固溶处理温度试验,试验参数如表4所示.
表 4 固溶处理工艺参数Table 4. Solution treatment process parameters序号 设备功率P/kW 固溶温度T/℃ A/C1 — — C2 530 870 C3 567 980 C4 597 1035 C5 623 1050 C6 633 1083 C7 643 1120 图8a为不同固溶温度条件下管件截面母材的平均硬度,分析发现,在使用氢气作为固溶处理保护气时,管件截面平均硬度也均低于未固溶时的硬度,满足国家标准GB/T 24593—2018的要求.但随着固溶温度的提高,管件平均硬度变化不大,这也可能是在管件截面取点位置不同导致的.其中组别C4的管件母材平均硬度最低,其值为182.7 HV,与未固溶时相比降低了13.8%.组别A/C1(未固溶)、A4(氩气条件下平均硬度最低)和C4(氢气条件下平均硬度最低)的焊接接头硬度分布曲线如图8b所示,可以发现在氢气保护气条件下,进行在线固溶处理后的管件焊缝及母材位置硬度均比未固溶时(A/C1)的样品低. C4组别热影响区与母材的硬度分布曲线与A4较为相似,但A4条件下焊缝区的硬度更大.
根据图9a、9b、9c金相组织图提取晶粒尺寸,如图8c所示.与未固溶时(A/C1)相比,组别C4焊缝中心、热影响区及母材的晶粒度分别增大了3.3%、15.3%和16.2%,并且孪晶的数量大大减少.对该组试样进行SEM电子扫描观察,发现焊缝区中沿晶界分布的铁素体也产生了部分溶解,热影响区和母材区域的块状析出物(Fe,Cr)23C6产生部分固溶.因此氢气保护气条件下进行固溶处理的管件硬度有所降低.此外,C4与A4组别相比,热影响区与母材的硬度分布曲线较为相似,而A4条件下焊缝区的硬度更大.这是因为C4条件下的固溶设备功率及固溶温度高于A4组别,导致C4组别焊缝区的平均晶粒尺寸略大于A4组别.同时,固溶温度的提高有利于铁素体及碳化物的溶解,因此C4条件下焊缝区的硬度低于A4组别.
图 9 C4组别焊接接头金相与SEM图Figure 9. Metallurgical structure and SEM diagram of welded joints in C4 group. (a) metallographic structure of welded zone; (b) metallographic structure of heat-affected zone; (c) metallographic structure of base metal; (d) SEM scanning diagram of welded zone; (e) SEM scanning diagram of heat-affected zone; (f) SEM scanning diagram of base metal2.4 扩口和压扁试验
在不锈钢管固溶处理、定长切割等生产流程完成后,往往需要对其进行二次加工变形,从而达到实际的工程需求,因此要求不锈钢管具有一定的塑韧性. 参考国家标准以及实际生产经验,需对管件进行扩口和压扁试验,以验证钢管的塑韧性,试验原理见小节1. 表5与图10a、10b为扩口和压扁试验结果,发现在进行扩口试验之后,管件均未出现裂纹,扩口率大于厂家要求的14%. 经压扁试验之后,焊缝也未发现任何裂纹.结果表明,在氩气和氢气保护气条件下固溶处理的管件均满足后续加工的塑韧性要求.
表 5 扩口和压扁试验结果Table 5. Results of flaring and flattening test组别 扩口率A(%) 扩口试验结果 压扁试验结果 A/C1 34.37 未出现裂纹 未出现裂纹 A4 37.50 未出现裂纹 未出现裂纹 B4 40.94 未出现裂纹 未出现裂纹 C4 37.50 未出现裂纹 未出现裂纹 结合显微组织、硬度、扩口及压扁试验结果,在氢气和氩气保护气条件下,对奥氏体不锈钢管进行在线固溶处理生产的管件均判定为合格样品.但结合表2 ~ 表4也发现,氩气保护气条件下的最低硬度组别A4比氢气保护气条件下的最低硬度组别C4所使用的加热设备功率降低了11.6%,固溶处理成本显著降低.
3. 结论
(1)采用氩气作为固溶保护气时,在试验温度范围内,提高固溶温度可以降低焊缝及母材的硬度,其中,管件母材平均硬度可降低至188.7 HV,降低了11.0%.而调整冷却条件对焊缝及母材的硬度影响不大.在氢气作为保护气时,平均硬度可降低至182.7 HV,降低了13.8%.
(2)在氢气和氩气保护气条件下固溶处理生产的管件经显微组织观察,硬度、扩口与压扁测试后均判定为合格.
(3)当氩气作为固溶保护气时,最低硬度组别加热设备功率可降低11.6%,同时避免使用氨分解设备来生产氢气.大大降低了生产成本,提高了焊工焊接生产的安全性.
-

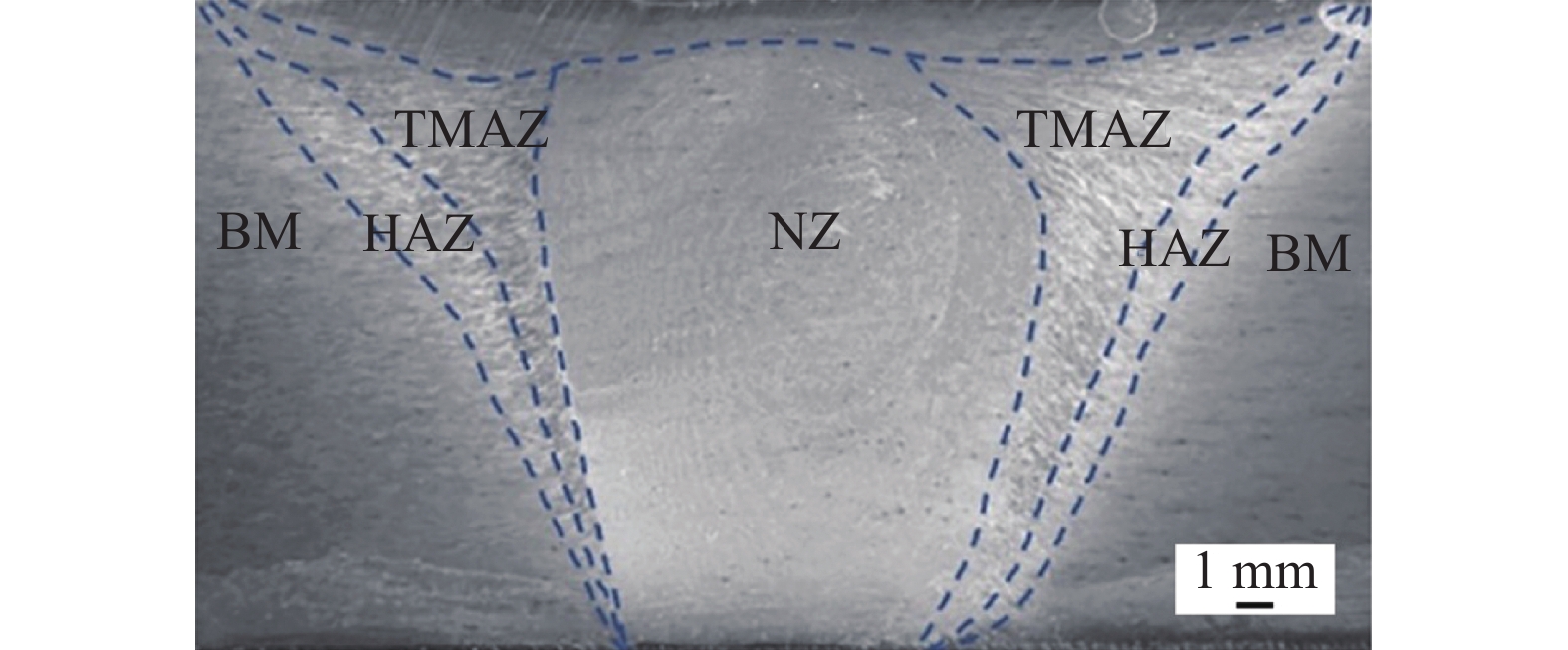

表 1 2219-T8铝合金化学成分(质量分数,%)
Table 1 Chemical compositions of 2219-T8 aluminum alloy
Cu Mn Fe Si Zn V Ti Zr Al 6.21 0.29 0.12 0.15 0.06 0.08 0.03 0.12 余量 表 2 2219铝合金Johnson-Cook特性参数[13]

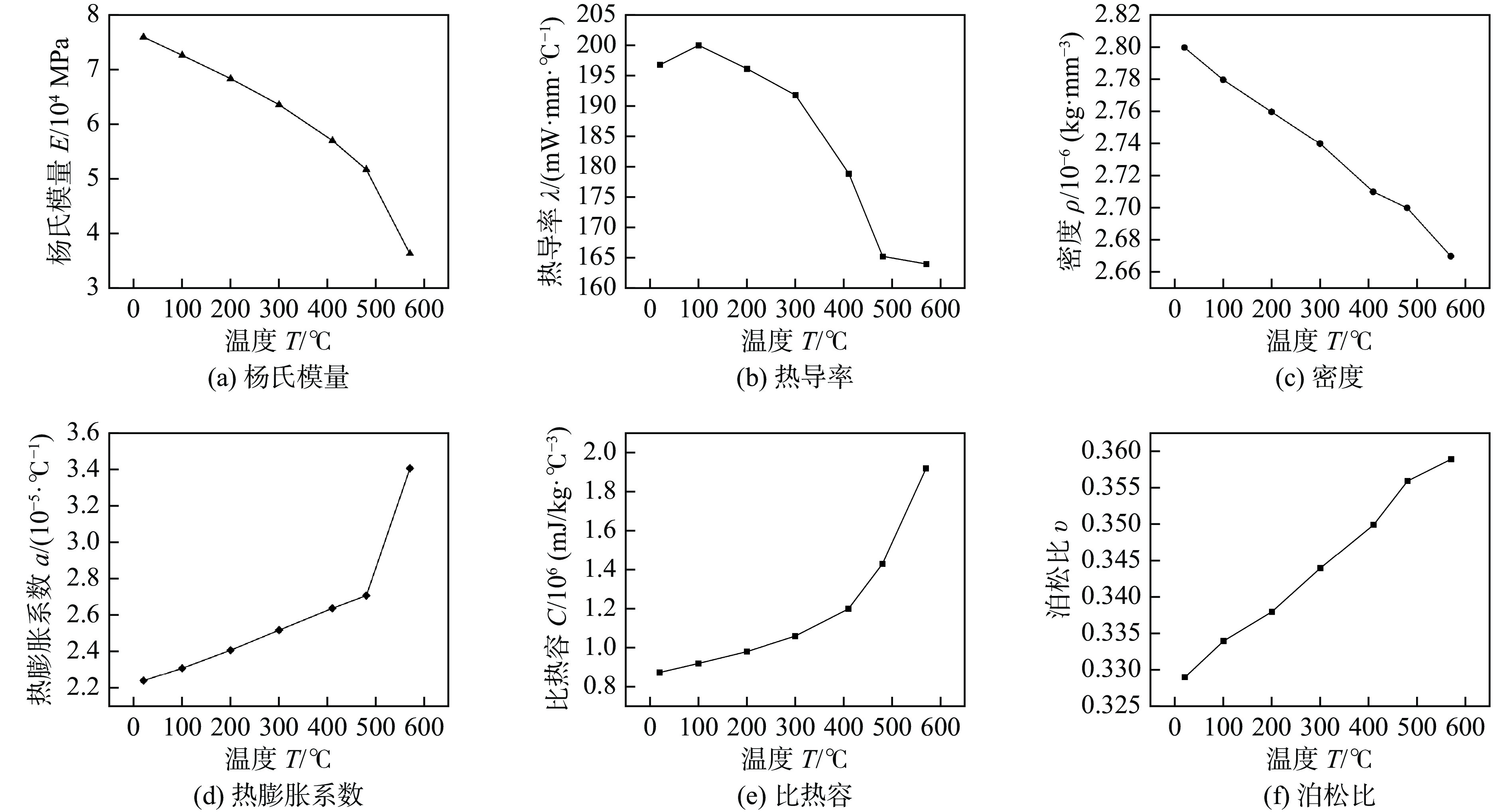

Table 2 Johnson-Cook characteristic parameters of 2219 aluminum alloy
初始屈服应力
A/MPa应力硬化常数
B/MPa应力硬化指数
n应变率常数
C热软化指数
m室温
Tr /℃材料熔点

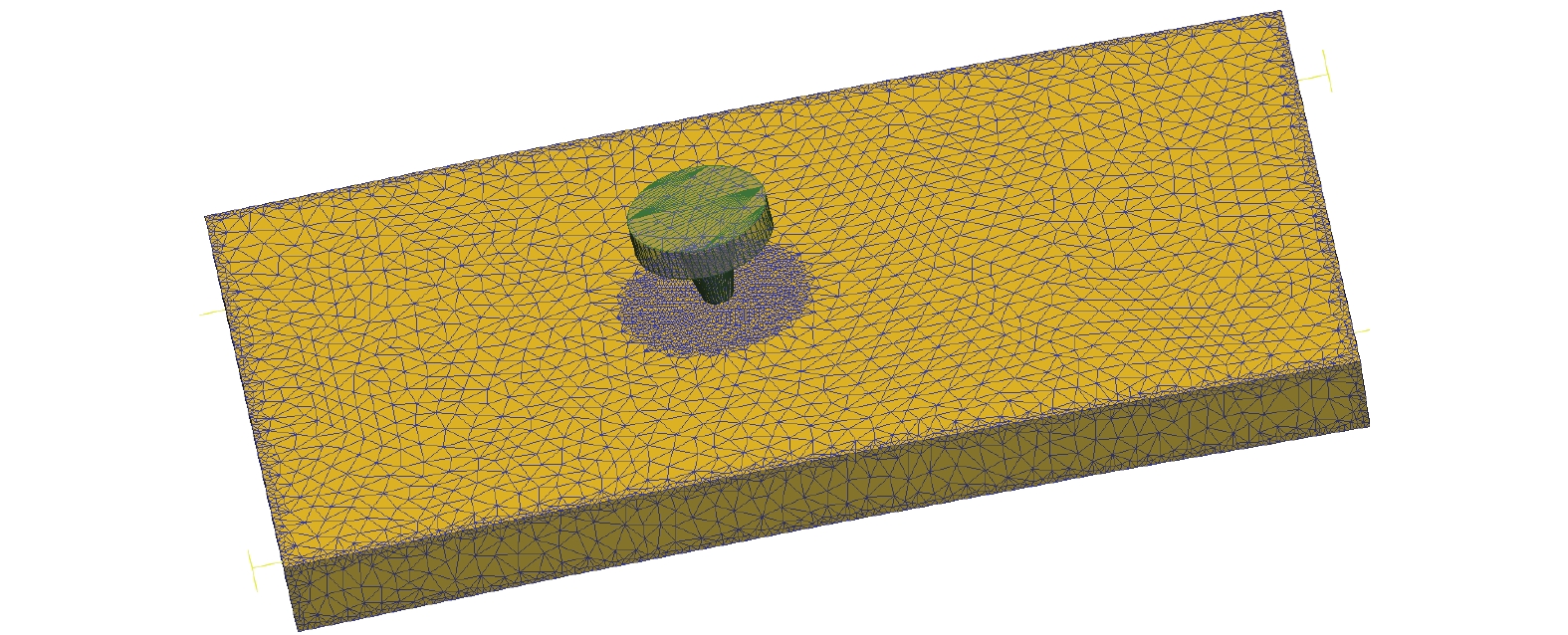

Tm /℃170 228 0.31 0.028 2.75 20 590 表 3 不同温度时2219铝合金与搅拌头之间的摩擦系数[16]
Table 3 Friction coefficient between 2219 aluminum alloy and stirring head at different temperatures
温度T/ ℃ μ 温度T/ ℃ μ 25 0.61 300 0.07 100 0.51 400 0.47 200 0.21 500 0.01 表 4 仿真和试验测得的表面及核心区特征点位置温度对比

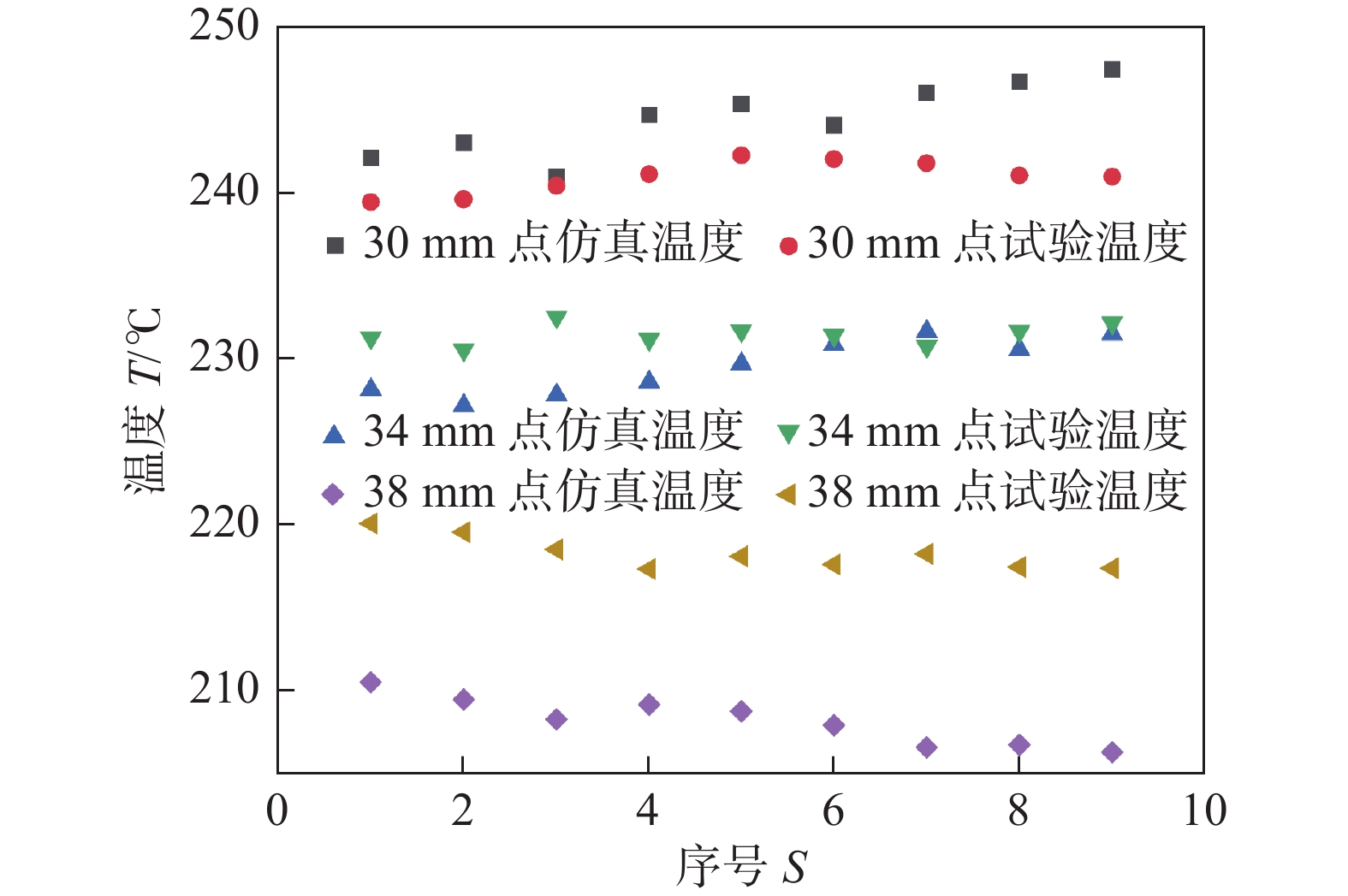

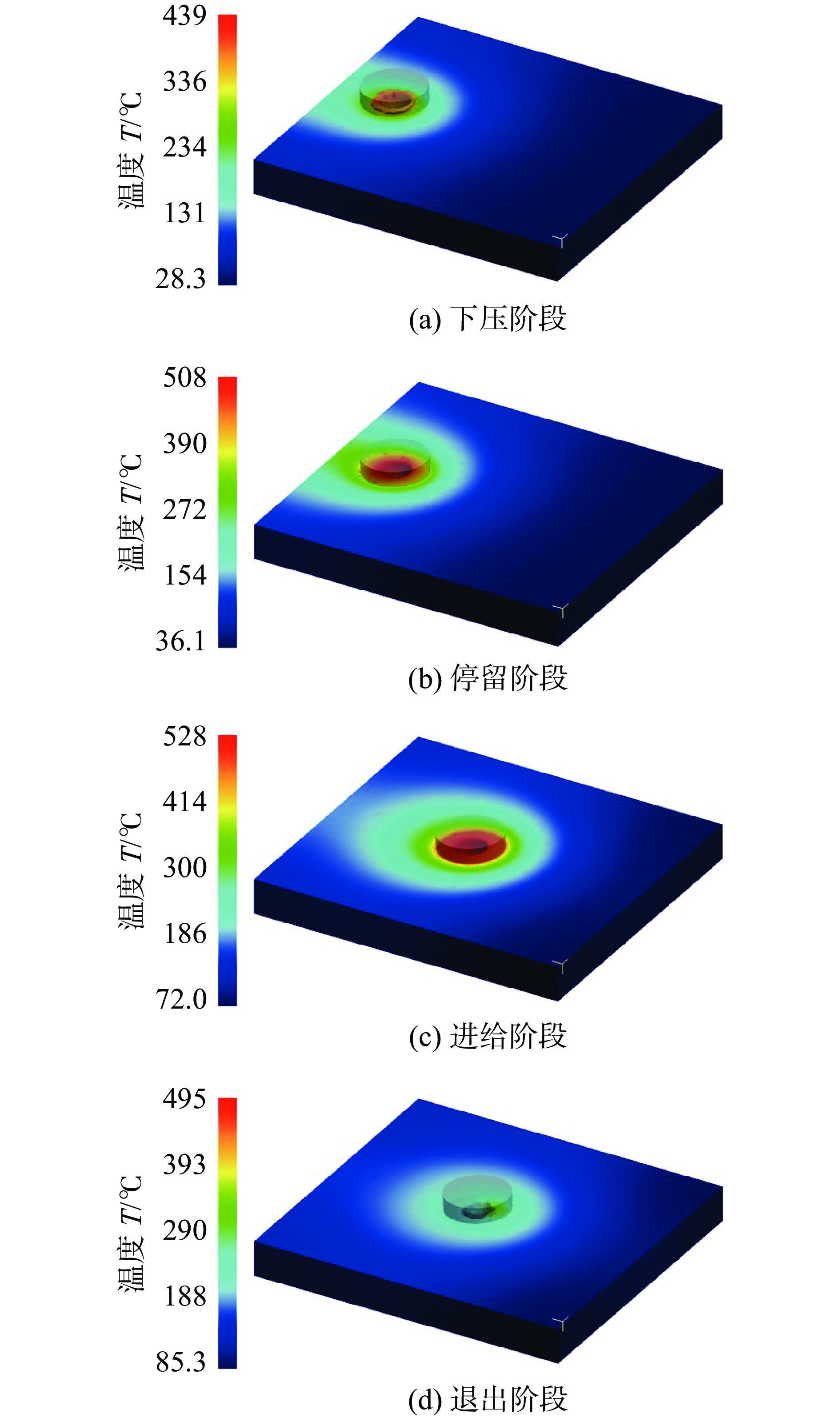

Table 4 Simulation and experimental temperature comparison of surface and weld zone sampled points
编号 转速
n/(r·min−1)焊接速度
v/(mm·min−1)表面特征点温度 核心区峰值温度 核心区最低温度 仿真结果
Ts-0/℃试验结果
Tt-0/℃仿真结果
Tsh-max/℃试验结果
Tth-max/℃仿真结果
Tsh-min/℃试验结果
Tth-min/℃1 375 75 256.56 259.97 521.38 529.02 431.69 419.48 2 375 75 265.34 263.72 515.57 521.11 418.56 411.18 3 375 75 260.21 266.11 517.43 507.75 421.56 412.56 4 375 90 257.54 259.27 519.48 511.27 415.14 395.44 5 375 90 266.34 260.19 505.75 512.73 410.31 391.25 6 375 90 259.56 257.42 514.21 500.93 415.36 400.17 7 375 105 252.14 256.64 520.89 508.28 417.89 405.79 8 375 105 250.12 253.68 514.63 506.16 406.38 385.51 9 375 105 247.38 250.65 517.53 503.77 412.71 388.93 平均相对

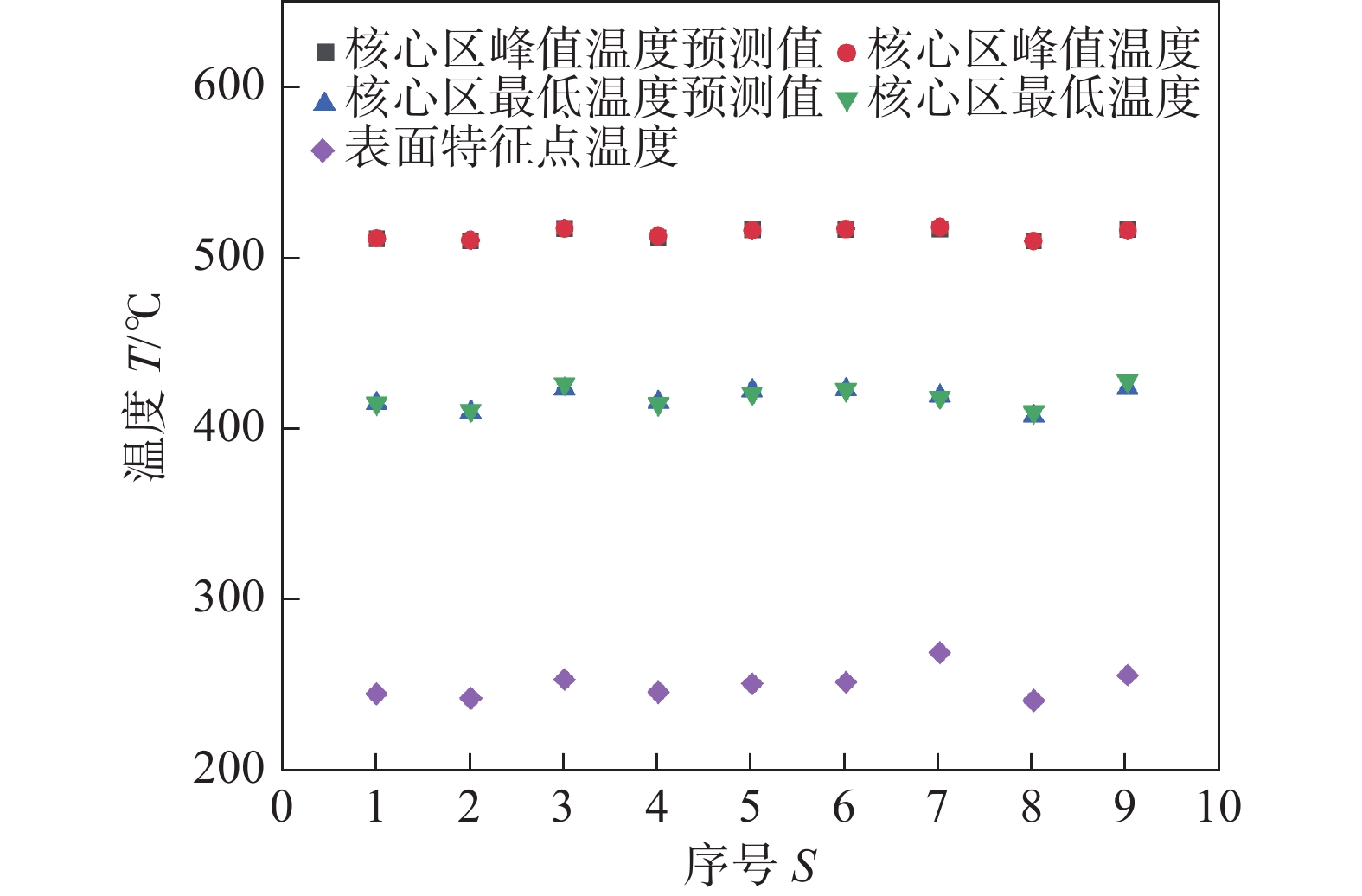

误差&(%)1.38 1.88 3.89 表 5 18 mm厚2219-T8平板FSW表面特征点温度与核心区极值温度数据集
Table 5 Surface feature point temperature and weld zone extreme temperature data sets of FSW 18 mm thick 2219-T8 plate
编号 表面特征点温度
T0/℃核心区最低温度
Tmin/℃核心区峰值温度
Tmax/℃序号 表面特征点温度
T0/℃核心区最低温度
Tmin/℃核心区峰值温度
Tmax/℃1 242.48 410.95 510.29 23 261.81 428.00 520.76 2 244.93 415.31 511.14 24 263.18 424.20 520.95 3 246.95 418.53 513.39 25 258.03 423.96 518.26 4 239.52 403.67 507.32 26 270.56 418.56 516.25 5 250.53 419.25 515.71 27 266.55 421.10 519.07 6 252.64 423.27 516.94 28 243.35 412.39 510.63 7 259.77 424.49 520.28 29 240.53 405.65 508.75 8 237.48 400.09 506.21 30 245.72 415.82 513.82 9 263.29 423.58 520.93 31 251.48 423.01 517.11 10 269.15 418.64 518.15 32 253.52 426.52 517.51 11 265.98 420.86 518.99 33 273.56 419.56 517.65 12 260.81 422.33 517.18 34 244.72 414.43 510.68 13 254.48 425.94 516.05 35 258.98 424.60 519.88 14 241.29 409.56 510.24 36 245.22 415.00 511.51 15 249.42 419.18 514.28 37 241.97 410.60 509.61 16 257.05 424.88 517.54 38 256.52 425.30 518.20 17 250.59 420.52 516.10 39 264.46 421.86 519.43 18 268.71 419.54 517.57 40 263.59 422.11 520.20 19 255.86 427.34 517.06 41 255.1 426.26 517.46 20 262.56 428.02 522.89 42 247.12 418.34 514.41 21 240.96 406.13 509.14 43 260.28 424.20 518.77 22 248.09 419.71 514.79 44 248.89 419.58 515.12 表 6 贮箱环焊表面特征点温度与核心区极值温度数据集

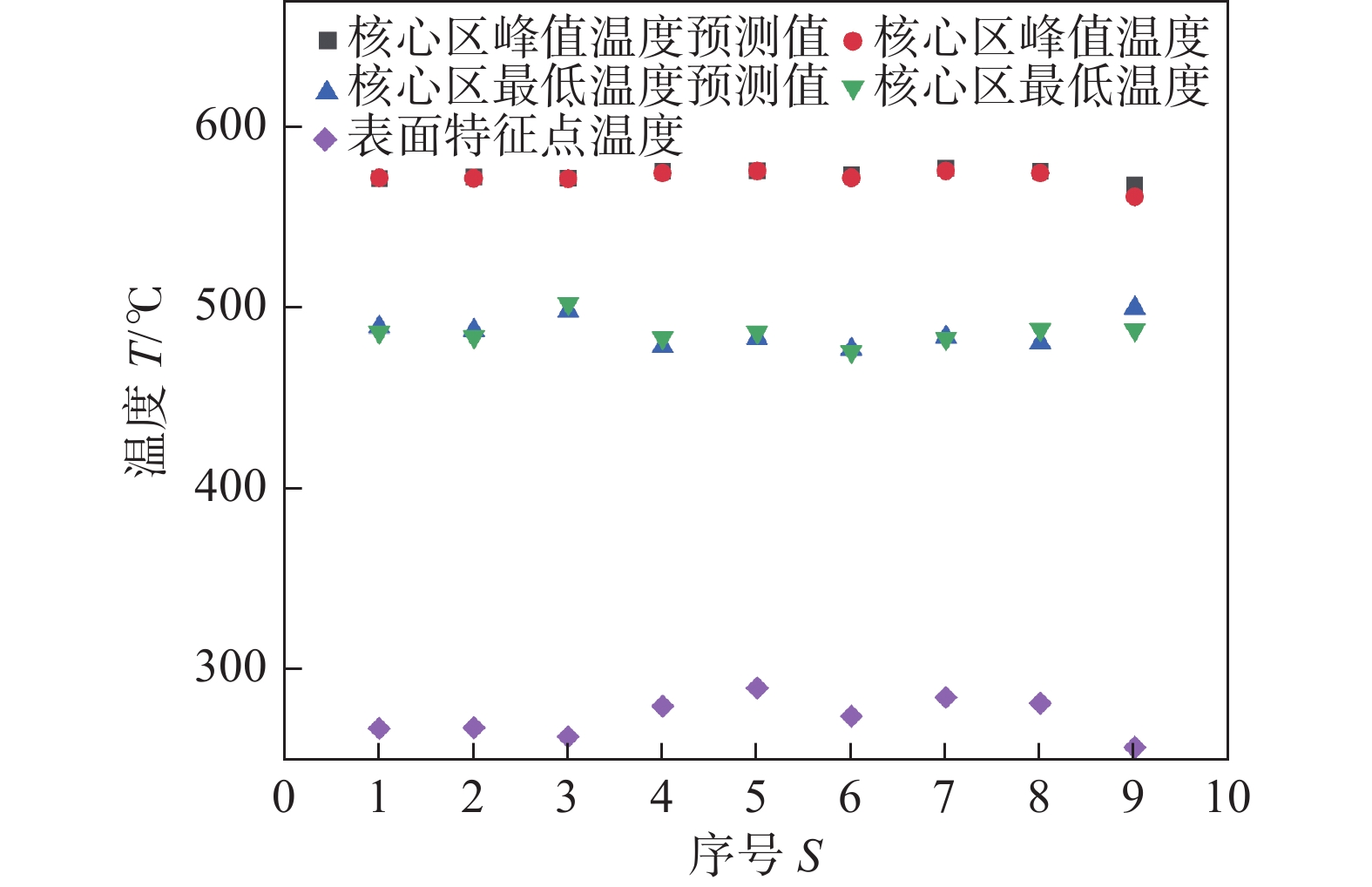

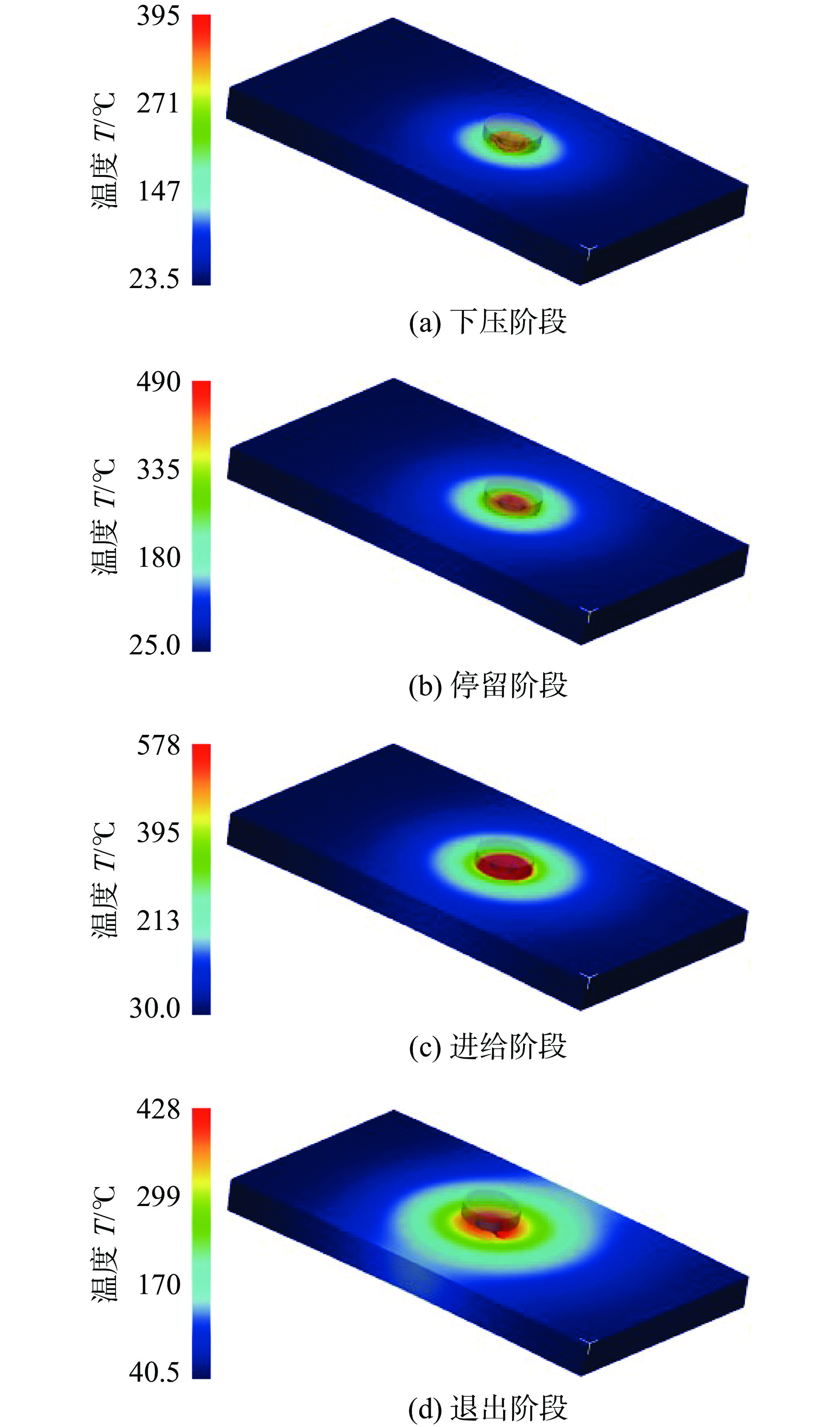

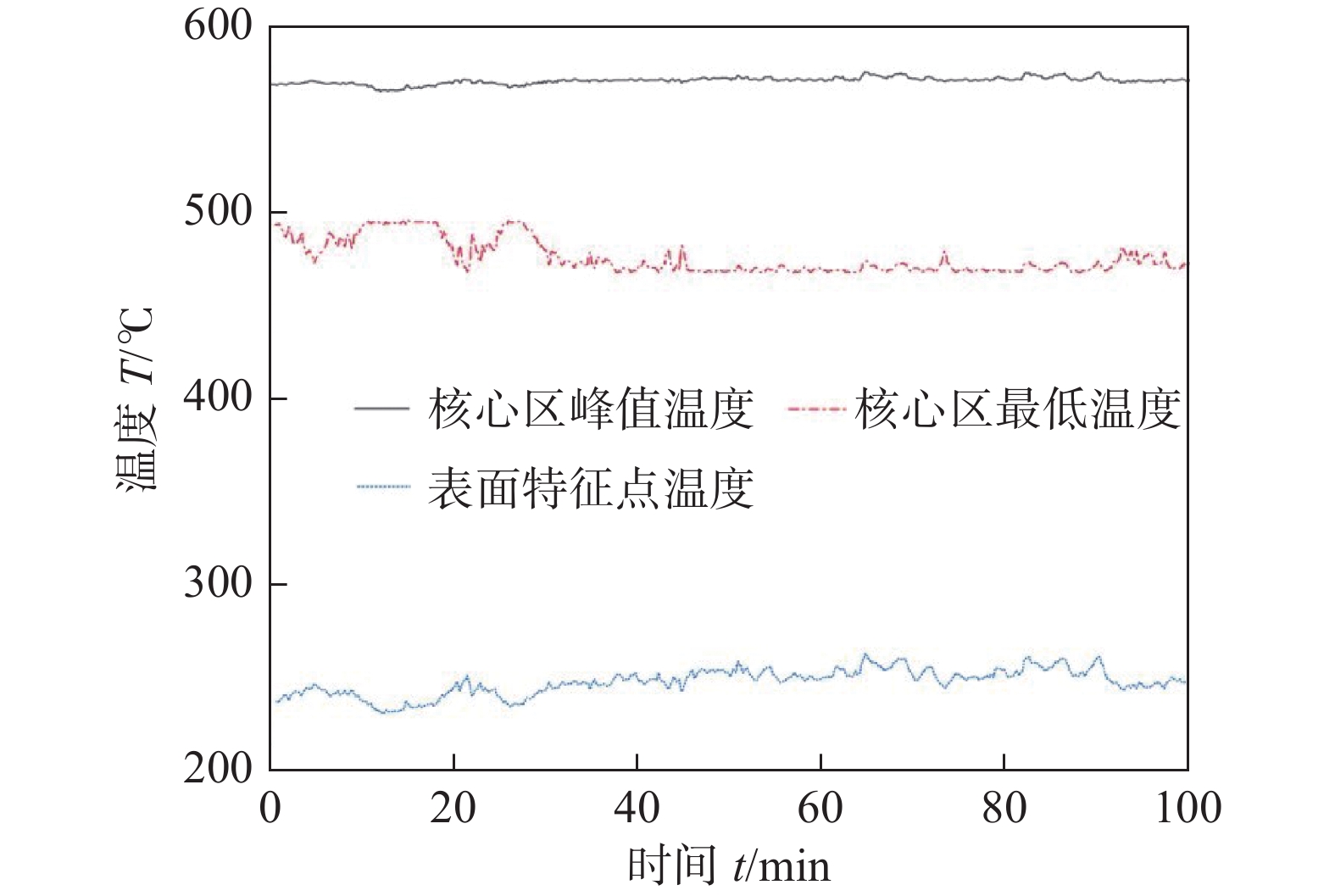

Table 6 Girth welding surface feature point and weld zone extreme temperatures data sets
编号 表面特征点温度
T0/℃核心区最低温度
Tmin/℃核心区峰值温度
Tmax/℃序号 表面特征点温度
T0/℃核心区最低温度
Tmin/℃核心区峰值温度
Tmax/℃1 235.14 497.81 567.09 23 246.45 476.55 570.44 2 232.08 480.31 559.12 24 264.36 466.03 575.73 3 238.88 494.91 569.20 25 249.12 465.04 570.79 4 250.61 461.89 570.90 26 266.51 476.77 574.55 5 245.07 477.41 571.00 27 252.53 477.23 570.99 6 233.27 493.03 567.04 28 245.61 475.71 570.04 7 259.72 470.28 574.22 29 236.64 493.77 568.15 8 234.62 496.17 566.69 30 241.07 488.26 568.49 9 241.51 487.67 569.14 31 242.14 486.88 568.85 10 248.63 464.27 571.49 32 247.62 472.88 570.74 11 232.58 492.65 565.28 33 261.84 473.95 574.17 12 266.31 475.21 574.56 34 250.96 465.04 570.01 13 245.93 475.13 570.31 35 267.79 478.45 573.89 14 258.14 479.79 572.73 36 244.46 475.51 569.53 15 240.03 489.74 568.62 37 242.58 485.30 568.95 16 237.09 494.40 568.42 38 254.72 475.03 572.90 17 243.13 480.40 569.98 39 236.25 495.02 567.09 18 258.43 478.49 573.19 40 243.66 478.44 569.94 19 239.21 490.60 569.02 41 248.21 469.51 570.41 20 234.18 495.97 566.68 42 256.49 474.82 572.67 21 251.01 466.78 569.81 43 255.78 470.99 572.47 22 249.57 463.30 571.09 44 247.37 474.56 572.77 -
[1] Sharma C, Dwivedi D K, Kumar P. Effect of welding parameters on microstructure and mechanical properties of friction stir welded joints of AA7039 aluminum alloy[J]. Materials & Design, 2012, 36: 379 − 390. doi: 10.1016/j.matdes.2011.10.054
[2] Fehrenbacher A, Duffie N A, Ferrier N J, et al. Effects of tool–workpiece interface temperature on weld quality and quality improvements through temperature control in friction stir welding[J]. The International Journal of Advanced Manufacturing Technology, 2014, 71(1-4): 165 − 179. doi: 10.1007/s00170-013-5364-4
[3] 卢晓红, 乔金辉, 周宇, 等. 搅拌摩擦焊温度场研究进展[J]. 吉林大学学报(工学版), 2023, 53(1): 1 − 17. Lu Xiaohong, Qiao Jinhui, Zhou Yu, et al. Research progress of temperature field in friction stir welding[J]. Journal of Jilin University (Engineering and Technology Edition), 2023, 53(1): 1 − 17.
[4] 高士康, 周利, 张欣盟, 等. 6061-T6/7075-T6异种铝合金搅拌摩擦焊接头组织与性能[J]. 焊接学报, 2022, 43(6): 35 − 42. doi: 10.12073/j.hjxb.20210616003 Gao Shikang, Zhou Li, Zhang Xinmeng, et al. Microstructure and properties of friction stir welded joints for 6061-T6/7075-T6 dissimilar aluminum alloy[J]. Transactions of the China Welding Institution, 2022, 43(6): 35 − 42. doi: 10.12073/j.hjxb.20210616003
[5] Han C, Zhang Q, Shi Q Y, et al. Artificial-neural-network-based storage method for three-dimensional temperature field data during friction stir welding[J]. China Welding, 2022, 31(3): 1 − 7.
[6] Dharmaraj K J, Cox C D, Strauss A M, et al. Ultrasonic thermometry for friction stir spot welding[J]. Measurement, 2014, 49: 226 − 235. doi: 10.1016/j.measurement.2013.11.054
[7] Su J Q, Nelson T W, Mishra R, et al. Microstructural investigation of friction stir welded 7050-T651 aluminium[J]. Acta Materialia, 2003, 51(3): 713 − 729. doi: 10.1016/S1359-6454(02)00449-4
[8] Kesharwani R, Jha K K, Sarkar C, et al. Numerical and experimental analysis on friction stir welding of the dissimilar materials 6061-T6 AA and pure copper[J]. Materials Today- Proceedings, 2022, 65: 3132 − 3142. doi: 10.1016/j.matpr.2022.05.353
[9] Ou W, Guo G, Cui C, et al. Heat transfer in aluminum-steel joint and weld tool during the friction stir welding: Simulation and experimental validation[J]. The International Journal of Advanced Manufacturing Technology, 2023(6): 2211 − 2224.
[10] 黄磊. ATZ511镁合金搅拌摩擦焊的工艺、组织与性能研究[D]. 长春: 吉林大学, 2021. Huang Lei. Study on process, microstructure and properties of friction stir welding of ATZ511 magnesium alloy[D]. Changchun: Jilin University, 2021.
[11] 冯莹莹, 赵双, 刘照松, 等. 7075铝合金搅拌摩擦焊模拟与实验研究[J]. 东北大学学报(自然科学版), 2021, 42(3): 340 − 346. doi: 10.12068/j.issn.1005-3026.2021.03.006 Feng Yingying, Zhao Shuang, Liu Zhaosong, et al. Experiment study and simulation for friction stir welding process of 7075 aluminum alloy[J]. Journal of Northeastern University (Natural Science), 2021, 42(3): 340 − 346. doi: 10.12068/j.issn.1005-3026.2021.03.006
[12] 高月华, 潘杨, 刘其鹏. 搅拌头几何对AZ91镁合金搅拌摩擦焊温度场及材料变形的影响[J]. 大连交通大学学报, 2020, 41(3): 51 − 57. Gao Yuehua, Pan Yang, Liu Qipeng. Influence of tool geometry on temperature field and material deformation of friction stir welding for AZ91 magnesium alloy[J]. Journal of Dalian Jiaotong University, 2020, 41(3): 51 − 57.
[13] 张子群, 姜兆亮, 魏清月. 2219铝合金动态力学性能及其本构关系[J]. 材料工程, 2017, 45(10): 47 − 51. doi: 10.11868/j.issn.1001-4381.2016.000859 Zhang Ziqun, Jiang Zhaoliang, Wei Qingyue. Dynamic mechanical properties and constitutive equations of 2219 aluminum alloy[J]. Journal of Materials Engineering, 2017, 45(10): 47 − 51. doi: 10.11868/j.issn.1001-4381.2016.000859
[14] Tutunchilar S, Haghpanahi M, Givi M K B, et al. Simulation of material flow in friction stir processing of a cast Al–Si alloy[J]. Materials & Design, 2012, 40: 415 − 426.
[15] Jain R, Pal S K, Singh S B. Finite element simulation of temperature and strain distribution during friction stir welding of AA2024 aluminum alloy[J]. Journal of The Institution of Engineers (India): Series C, 2017, 98(1): 37−43.
[16] 徐韦锋, 刘金合, 朱宏强. 2219铝合金厚板搅拌摩擦焊接温度场数值模拟[J]. 焊接学报, 2010, 31(2): 63 − 66,78. Xu Weifeng, Liu Jinhe, Zhu Hongqiang. Numerical simulation of thermal field of friction stir welded 2219 aluminum alloy thick plate[J]. Transactions of the China Welding Institution, 2010, 31(2): 63 − 66,78.
[17] Lu X H, Li X C, Teng L, et al. Simulation of temperature field and optimization of welding parameters in friction stir welding thick large circular storage tank[J]. The International Journal of Advanced Manufacturing Technology, 2024, 132(5): 2807 − 2821.
[18] 夏韦美. 6061铝合金搅拌摩擦焊完全热力耦合数值仿真及试验研究[D]. 桂林: 桂林理工大学, 2020. Xia Weimei. Full thermal-mechanical coupled numerical simulation and experimental study of 6061 aluminum alloy in friction stir welding[D]. Guilin: Guilin University of Technology, 2020.
[19] 陈婷. 搅拌摩擦焊温度场数值模拟研究[D]. 沈阳: 东北大学, 2012. Chen Ting. Research the temperature field of friction stir welding numerical simulation[D]. Shenyang: Northeastern University, 2012.
[20] 周平, 尤磊, 刘记平, 等. 基于M-SVR与RVFLNs的高炉十字测温中心温度估计[J]. 东北大学学报(自然科学版), 2017, 38(5): 614 − 619. Zhou Ping, You Lei, Liu Jiping, et al. Centre temperature estimation of blast furnace cross temperature measuring based on M-SVR and RVFLNs[J]. Journal of Northeastern University (Natural Science), 2017, 38(5): 614 − 619.
[21] 李畸勇, 汤允凤, 胡恒, 等. 基于支持向量回归的PV/T组件温度实时预测[J]. 可再生能源, 2020, 38(8): 1040 − 1046. Li Jiyong, Tang Yunfeng, Hu Heng, et al. Real-time prediction of PV/T component temperature based on support vector regression[J]. Renewable Energy Resources, 2020, 38(8): 1040 − 1046.
[22] 邓乃扬, 田英杰. 支持向量机 : 理论、算法与拓展[M]. 北京: 科学出版社, 2009. Deng Naiyang, Tian Yingjie. Support vector machines: theory, algorithm, and extension[M]. Beijing: Science Press, 2009.
[23] Zhang X G. Introduction to statistical learning theory and support vector machines[J]. Acta Automatica Sinica, 2000, 26(1): 32 − 42.
-
