6061铝合金超声辅助搅拌摩擦焊温度场分析

马付建, 李锡伟, 陈绍, 付典颐, 沙智华, 张生芳

马付建, 李锡伟, 陈绍, 付典颐, 沙智华, 张生芳. 6061铝合金超声辅助搅拌摩擦焊温度场分析[J]. 焊接学报, 2024, 45(8): 41-51. DOI: 10.12073/j.hjxb.20230726001
引用本文: 马付建, 李锡伟, 陈绍, 付典颐, 沙智华, 张生芳. 6061铝合金超声辅助搅拌摩擦焊温度场分析[J]. 焊接学报, 2024, 45(8): 41-51. DOI: 10.12073/j.hjxb.20230726001
MA Fujian, LI Xiwei, CHEN Shao, FU Dianyi, SHA Zhihua, ZHANG Shengfang. Analysis of temperature field of ultrasonic assisted friction stir welding of 6061 aluminum alloy[J]. TRANSACTIONS OF THE CHINA WELDING INSTITUTION, 2024, 45(8): 41-51. DOI: 10.12073/j.hjxb.20230726001
Citation: MA Fujian, LI Xiwei, CHEN Shao, FU Dianyi, SHA Zhihua, ZHANG Shengfang. Analysis of temperature field of ultrasonic assisted friction stir welding of 6061 aluminum alloy[J]. TRANSACTIONS OF THE CHINA WELDING INSTITUTION, 2024, 45(8): 41-51. DOI: 10.12073/j.hjxb.20230726001

6061铝合金超声辅助搅拌摩擦焊温度场分析

基金项目: 国家自然科学基金资助项目(52075066);辽宁省自然科学基金资助项目(2021-MS-295);辽宁省教育厅基本科研项目(JYTMS20230001).
详细信息
    作者简介:

    马付建,博士,教授;主要从事超声辅助及复合加工技术方面的研究;Email: mafj@djtu.edu.cn

    通讯作者:

    张生芳,博士,教授;Email: zsf@djtu.edu.cn.

  • 中图分类号: TG 453.9

Analysis of temperature field of ultrasonic assisted friction stir welding of 6061 aluminum alloy

  • 摘要:

    为了分析超声振动对6061铝合金超声辅助搅拌摩擦焊接过程温度场的影响,采用解析建模和数值模拟的方法,建立了超声辅助搅拌摩擦焊过程中接触界面摩擦系数模型和热力耦合有限元分析模型,开展了6061铝合金超声辅助搅拌摩擦焊温度测量试验,结合有限元与试验结果进行对比分析. 结果表明,仿真得到的工件表面温度分布曲线及取样点温度都与试验结果基本吻合,验证了建立模型的准确性;超声振动可以改变摩擦状态,降低焊接摩擦产热,减少峰值温度及高温区域的面积,振幅对焊接峰值温度影响的显著性高于频率.

    Abstract:

    In order to investigate the influence of ultrasonic vibration on the temperature field of ultrasonic assisted friction stir welding of 6061 aluminum alloy, the contact interface friction coefficient model was established by analytical modeling, and the thermo-mechanical coupling finite element analysis model was established by numerical simulation. The temperature measurement experiment of ultrasonic assisted friction stir welding of 6061 aluminum alloy was carried out. By comparing the finite element analysis with the experimental results, it is found that the workpiece surface temperature distribution curve and sampling point temperature obtained by the analysis are basically consistent with the experimental results, which verifies the accuracy of the established model. The analysis results also show that ultrasonic vibration can change the friction state, reduce the welding friction heat generation, the peak temperature and the area of high temperature region. The effect of ultrasonic amplitude on welding peak temperature is more significant than frequency.

  • 图  1   UAFSW工作原理图

    Figure  1.   Schematic diagram of UAFSW

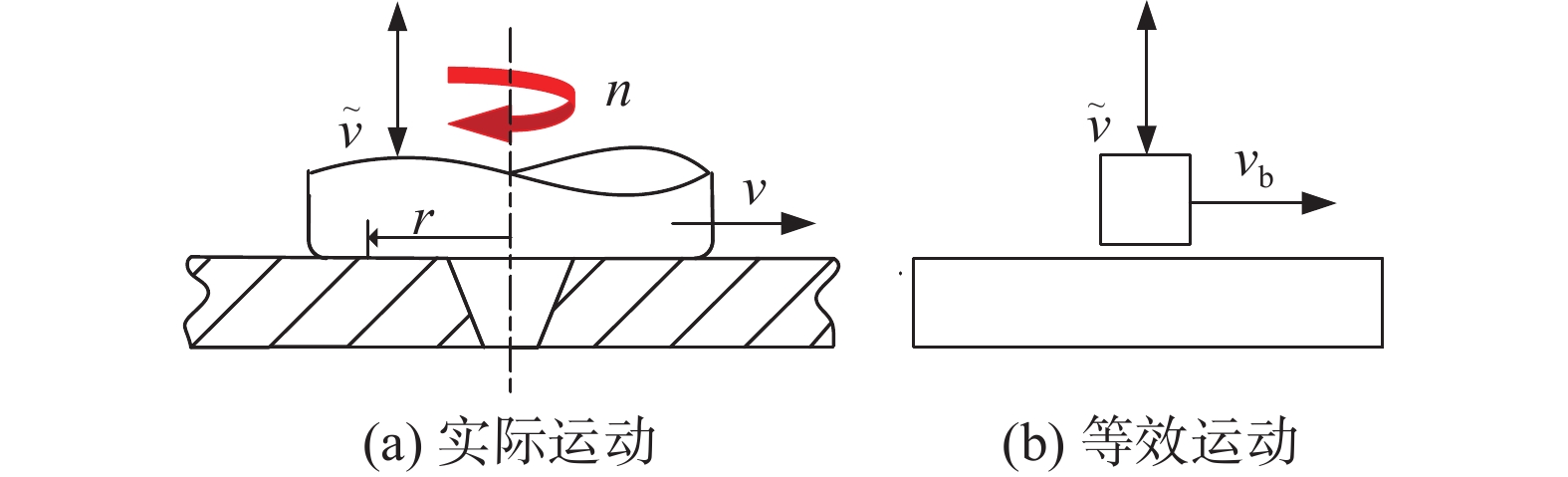

    图  2   轴肩−工件间相对运动示意图

    Figure  2.   Schematic diagram of relative movement between shoulder and workpiece. (a) actual motion; (b) equivalent motion

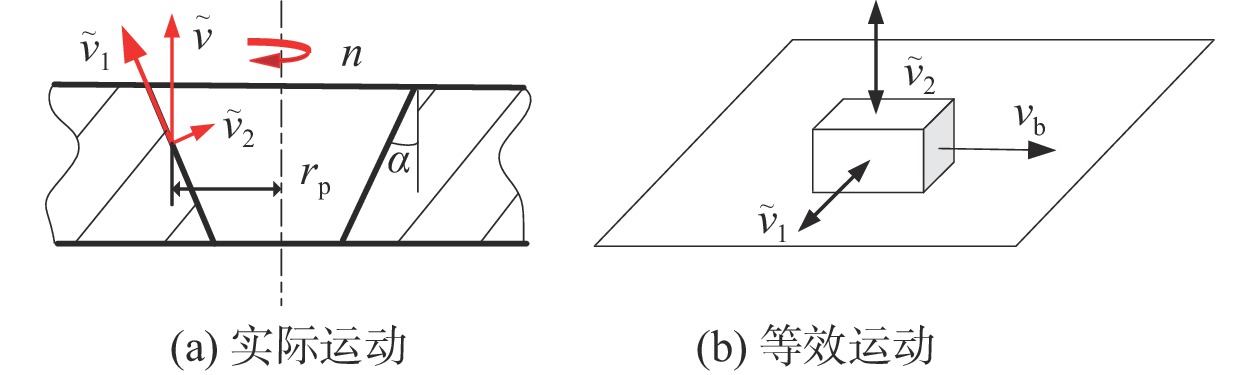

    图  3   搅拌针−工件间相对运动示意图

    Figure  3.   Schematic diagram of relative movement between welding pin and workpiece. (a) actual motion; (b) equivalent motion

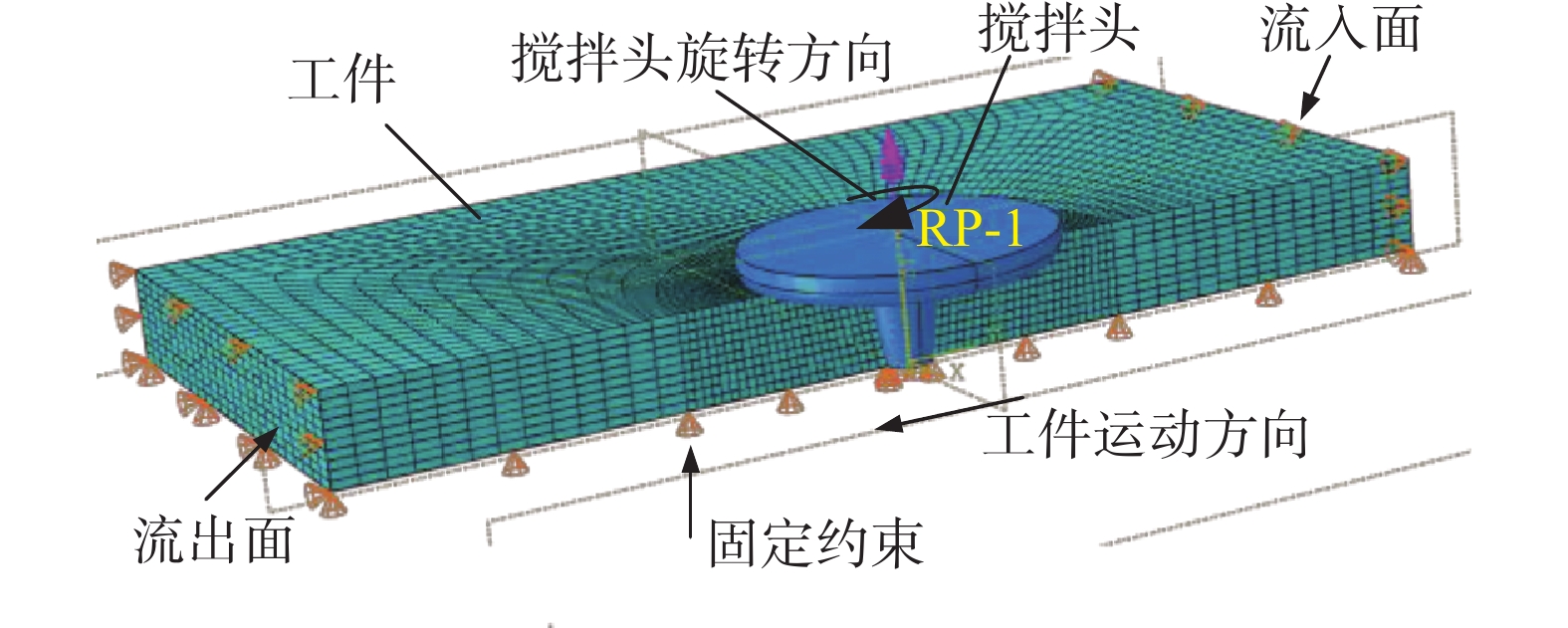

    图  4   UAFSW热力耦合有限元分析模型

    Figure  4.   Finite element model of UAFSW

    图  5   超声辅助搅拌摩擦焊试验台

    Figure  5.   Test equipment of UAFSW

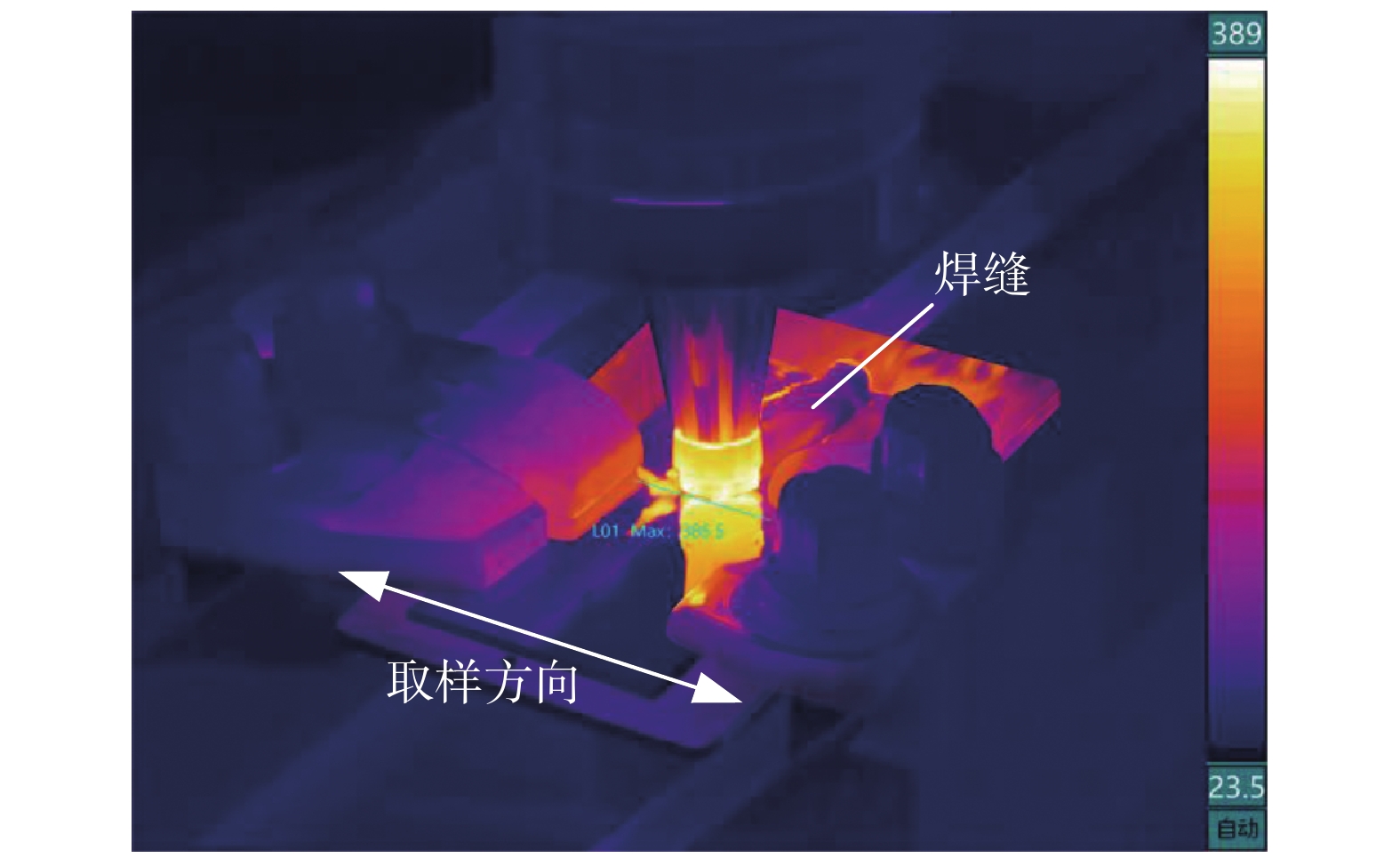

    图  6   工件温度场

    Figure  6.   Temperature field of workpiece

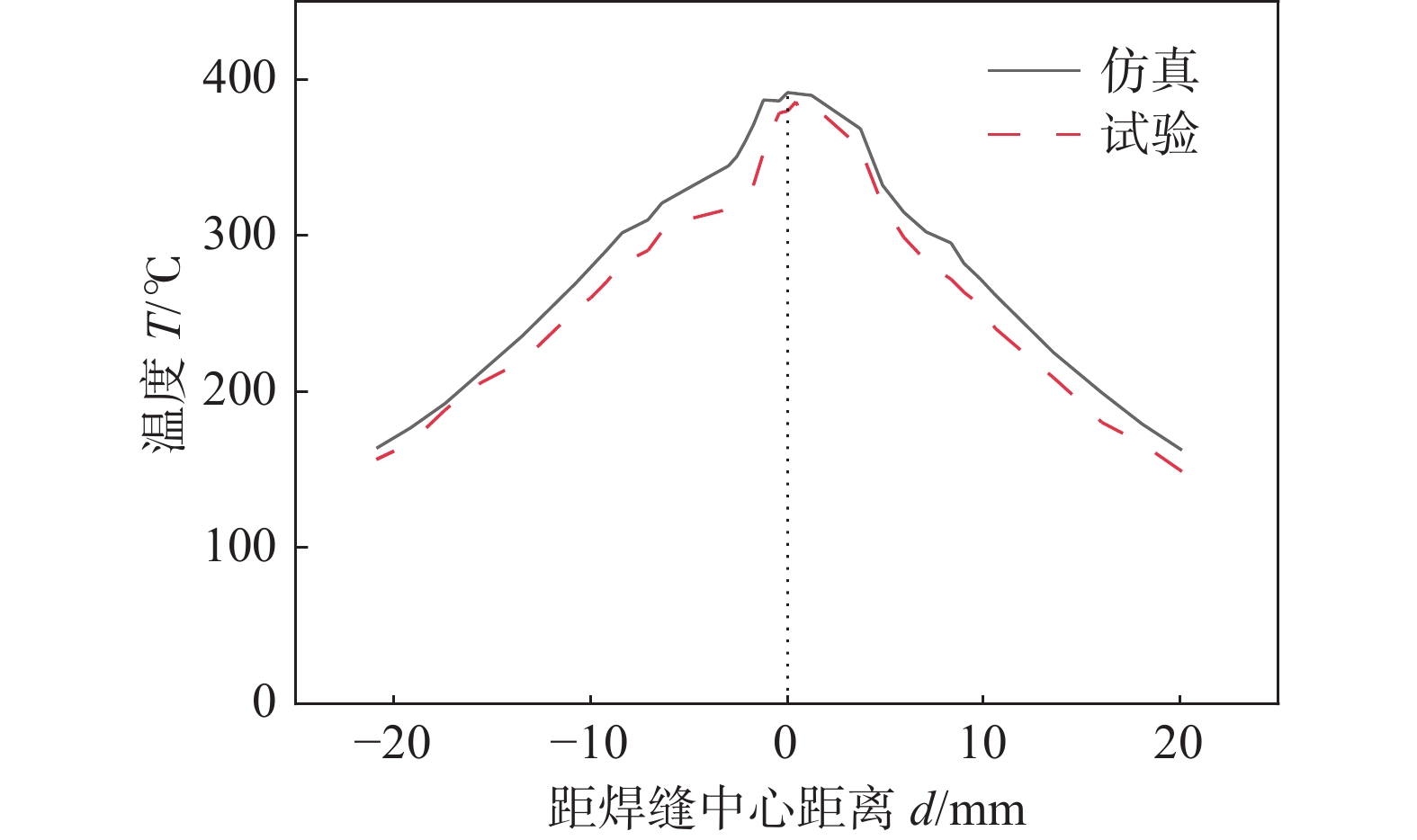

    图  7   仿真与试验温度对比曲线

    Figure  7.   Comparison curve of simulation and test temperature

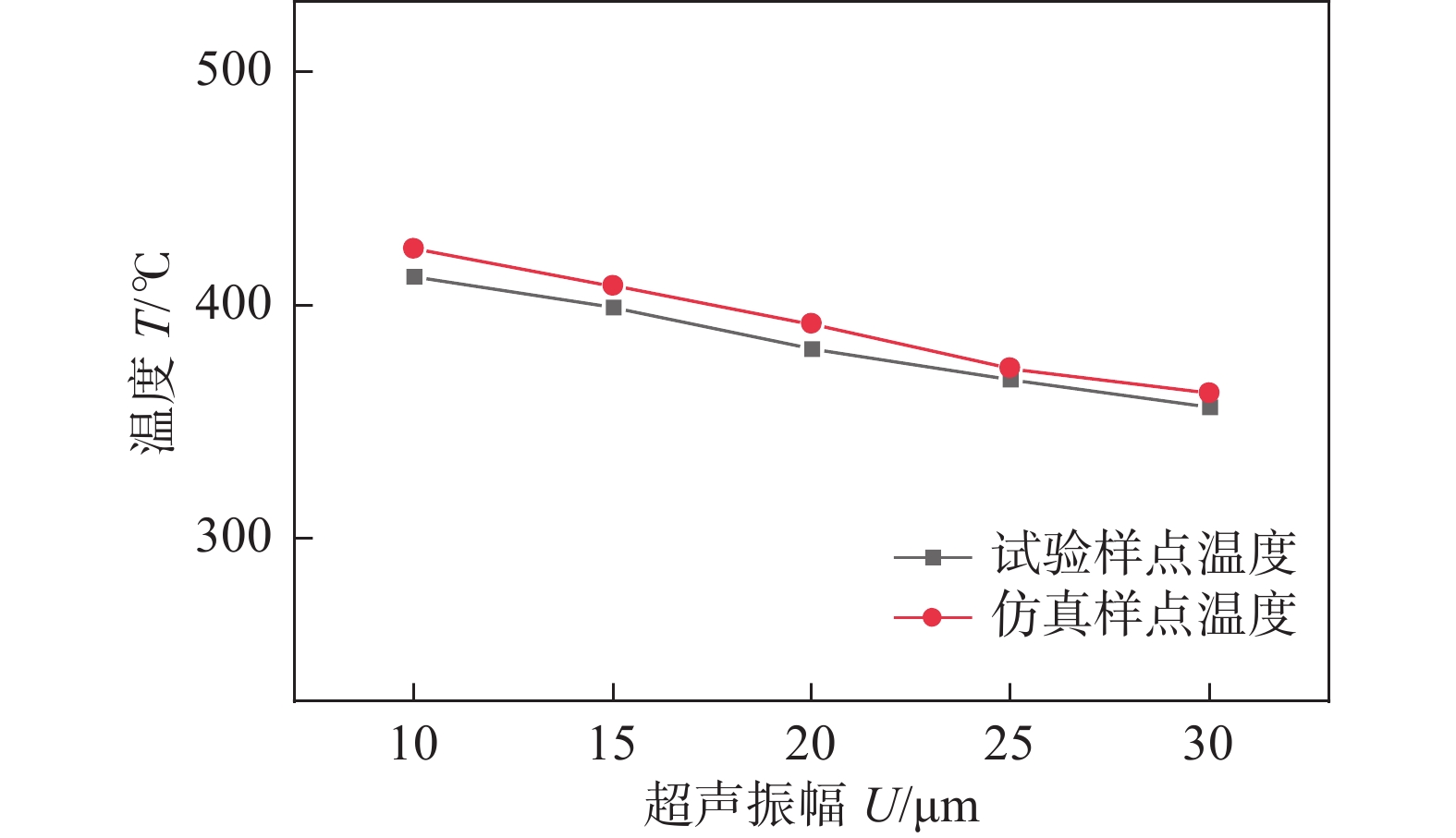

    图  8   仿真试验样点温度对比

    Figure  8.   Contrast diagram of temperature at sampling point between simulation and test

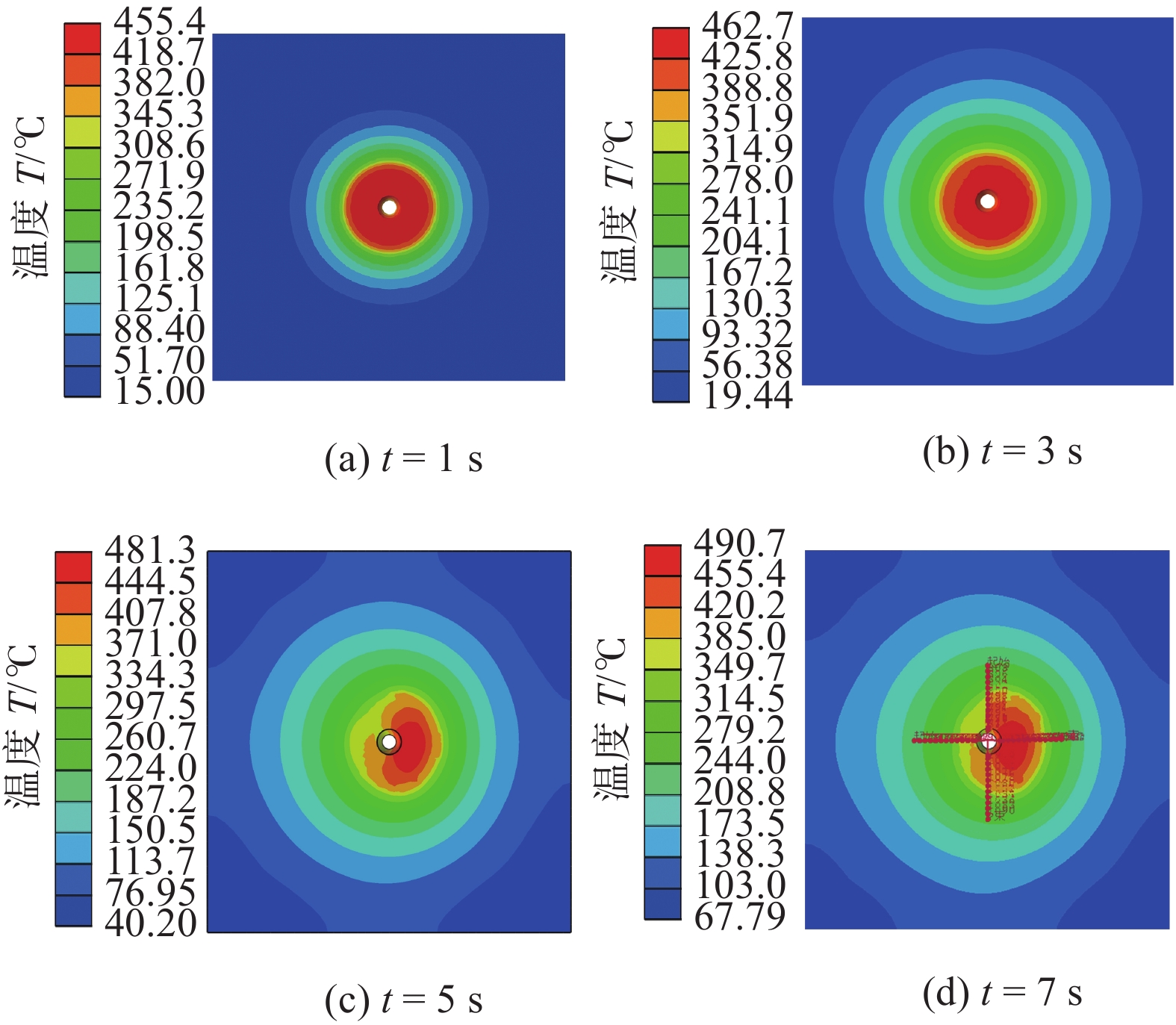

    图  9   工件表面温度

    Figure  9.   Surface temperature distribution of workpiece. (a) t = 1 s;(b) t = 3 s;(c) t = 5 s;(d) t = 7 s

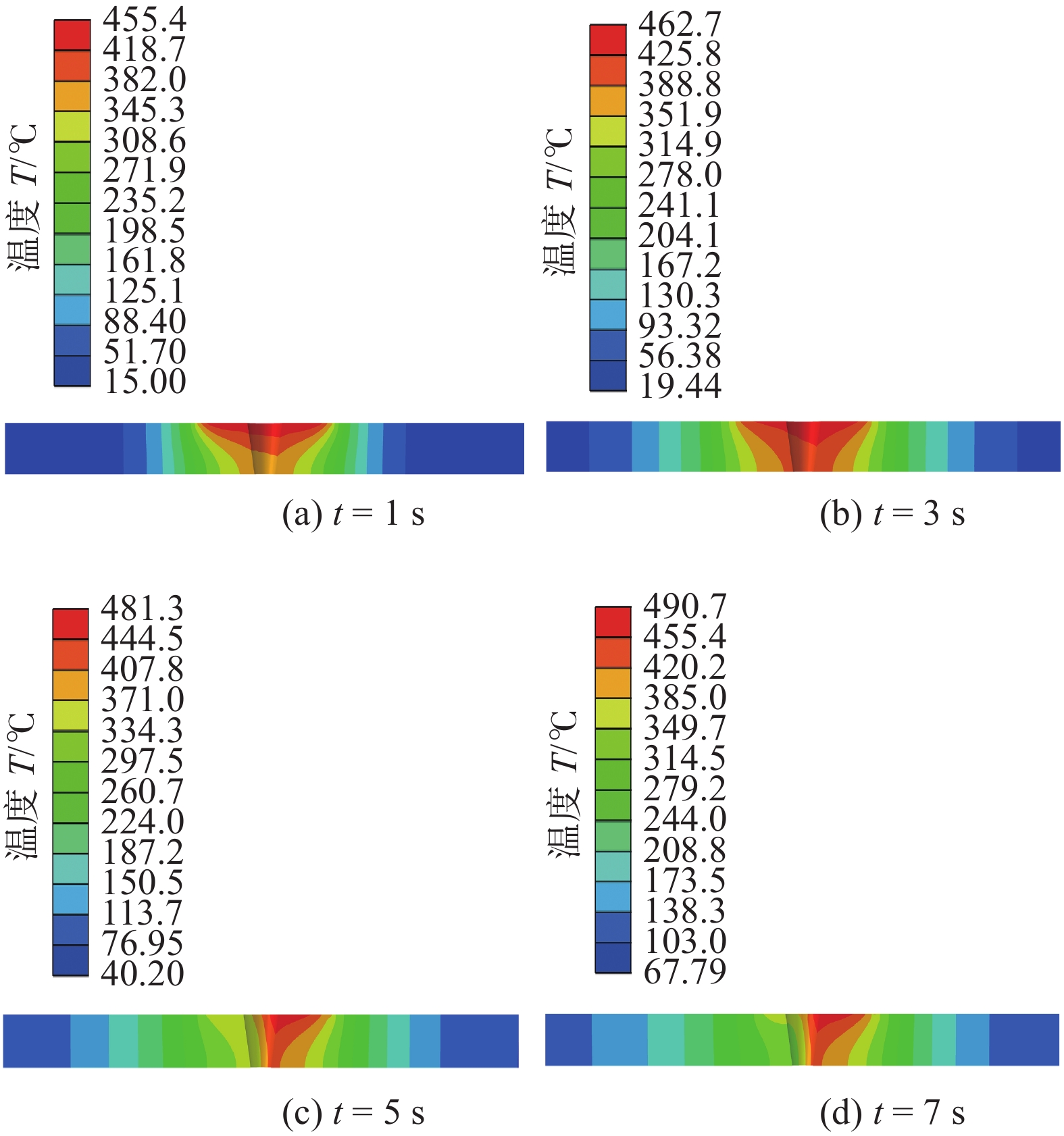

    图  10   焊缝内部温度分布

    Figure  10.   Temperature distribution inside the weld. (a) t = 1 s;(b) t = 3 s;(c) t = 5 s;(d) t = 7 s

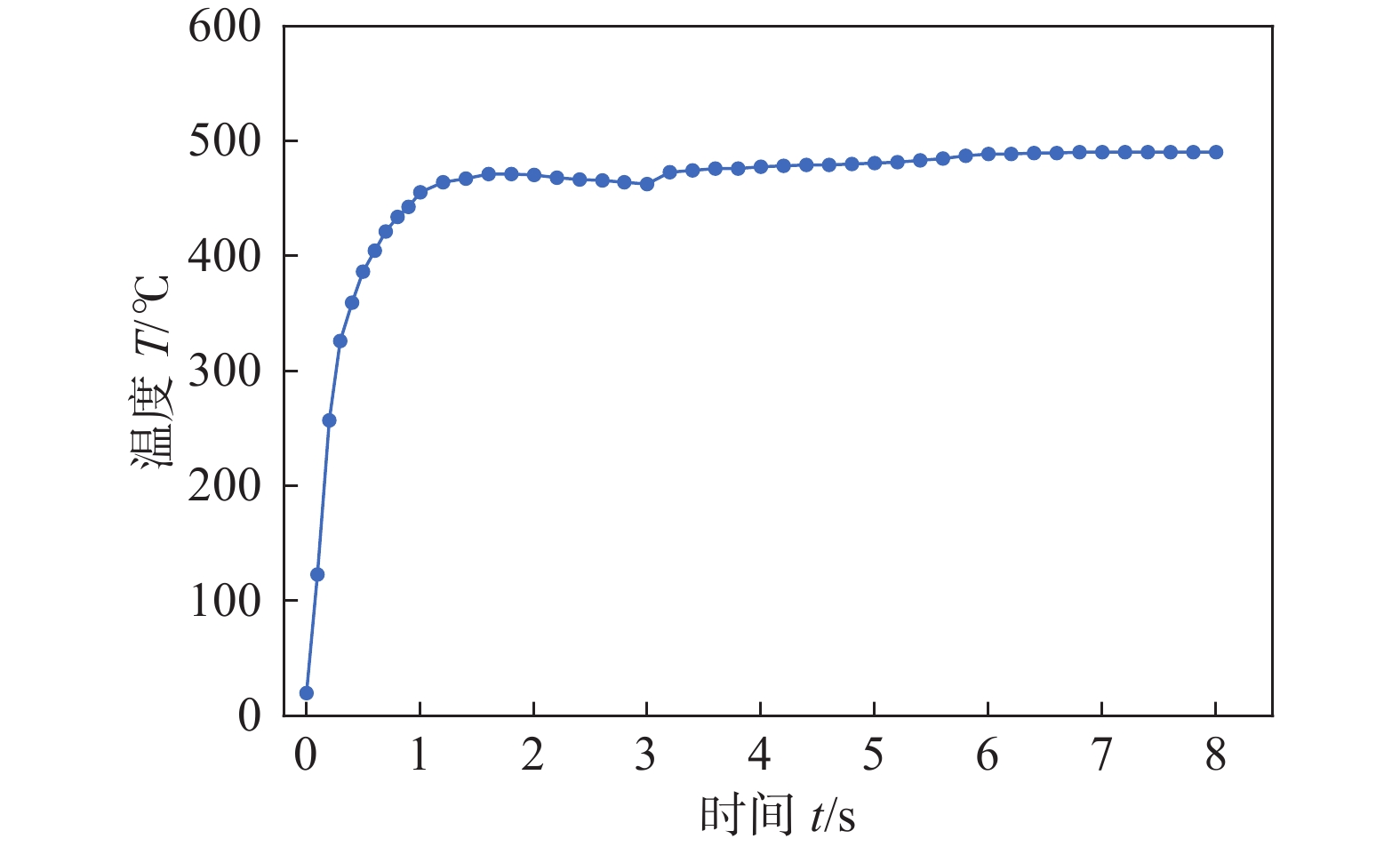

    图  11   焊接峰值温度随时间变化趋势

    Figure  11.   Peak welding temperature changed with time

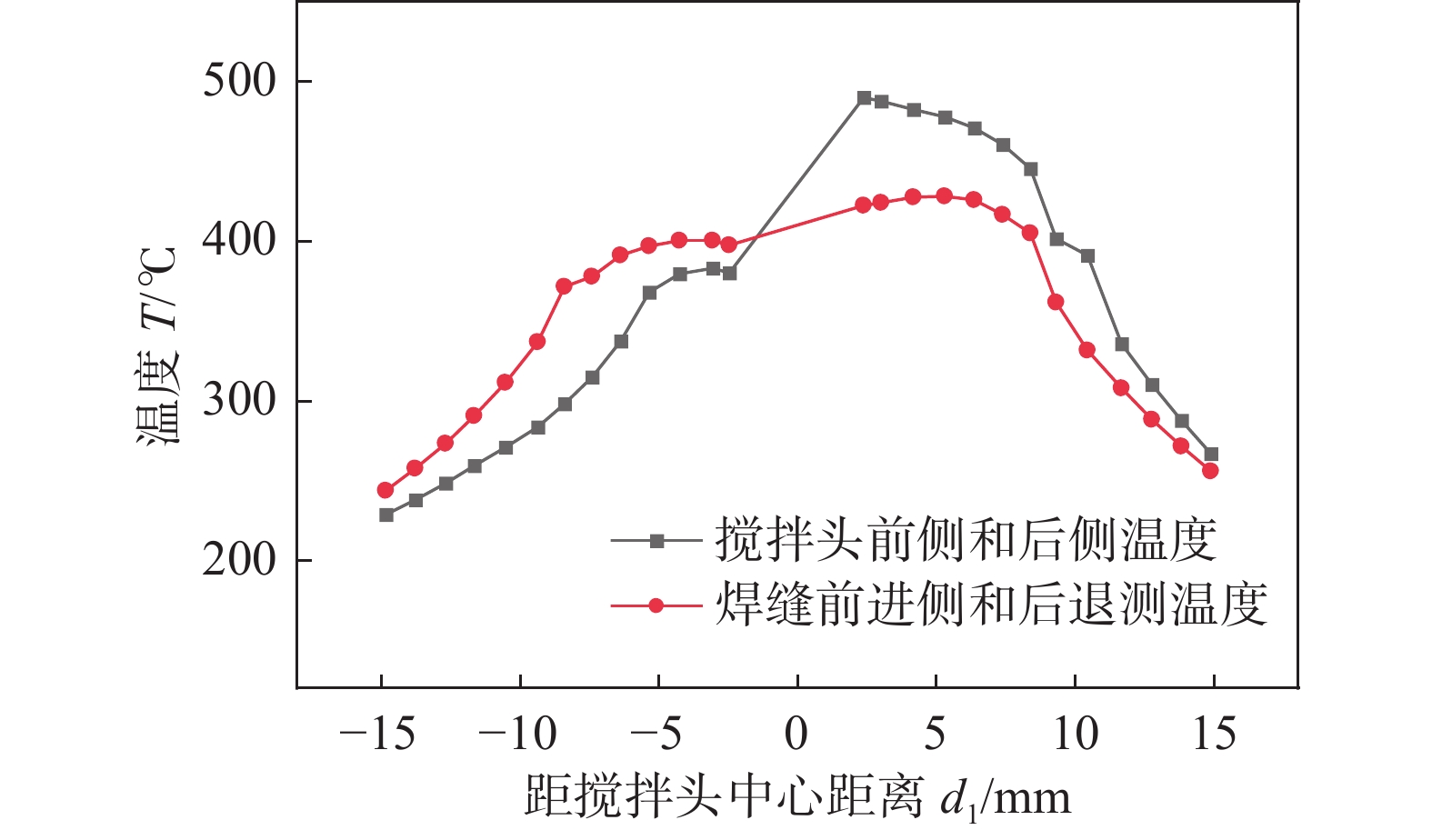

    图  12   焊缝表面温度分布曲线

    Figure  12.   Temperature distribution curve of the surface

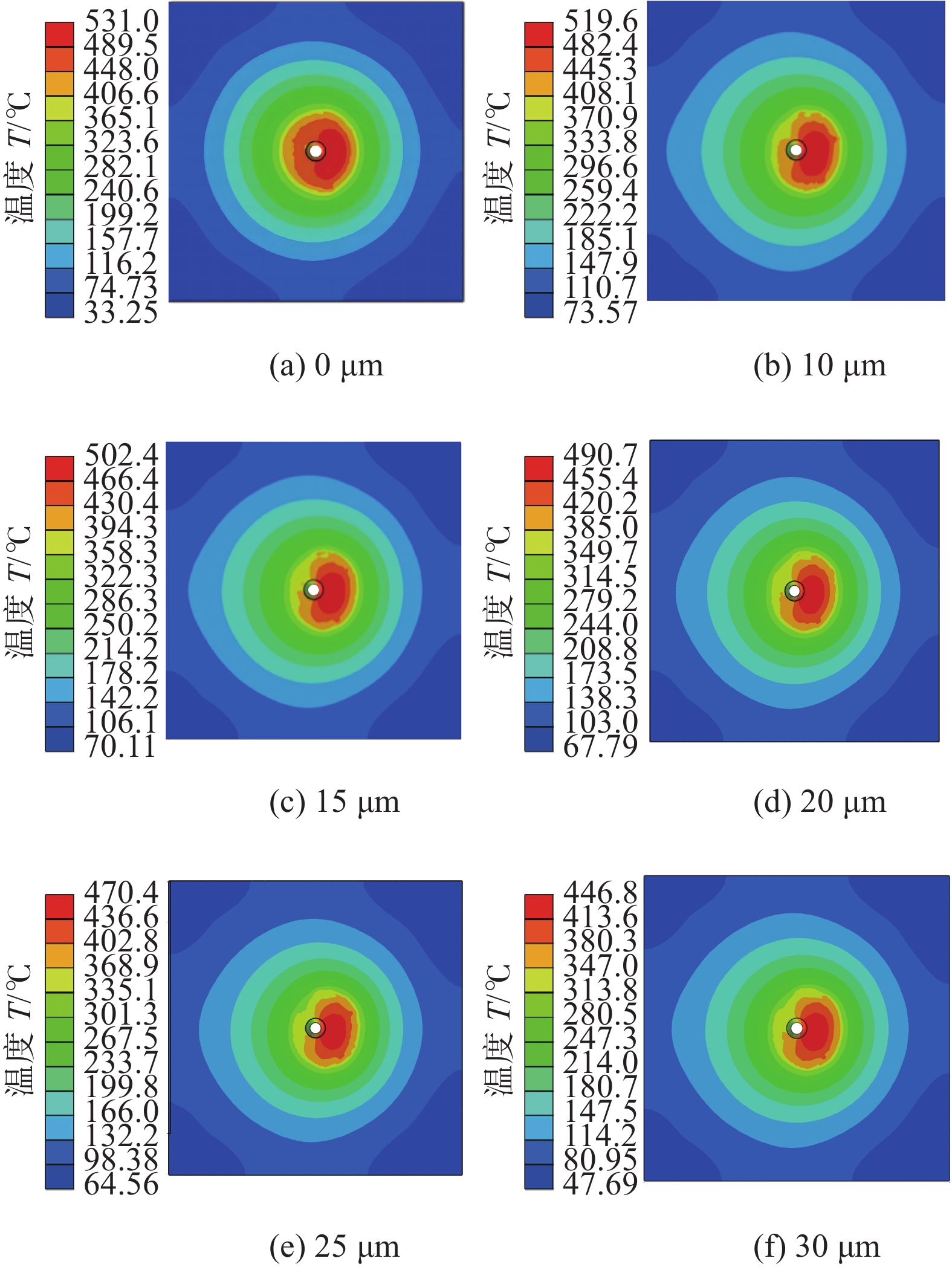

    图  13   不同振幅下表面温度分布

    Figure  13.   Welding temperature at different amplitude. (a) 0 μm; (b) 10 μm; (c) 15 μm; (d) 20 μm; (e) 25 μm; (f) 30 μm

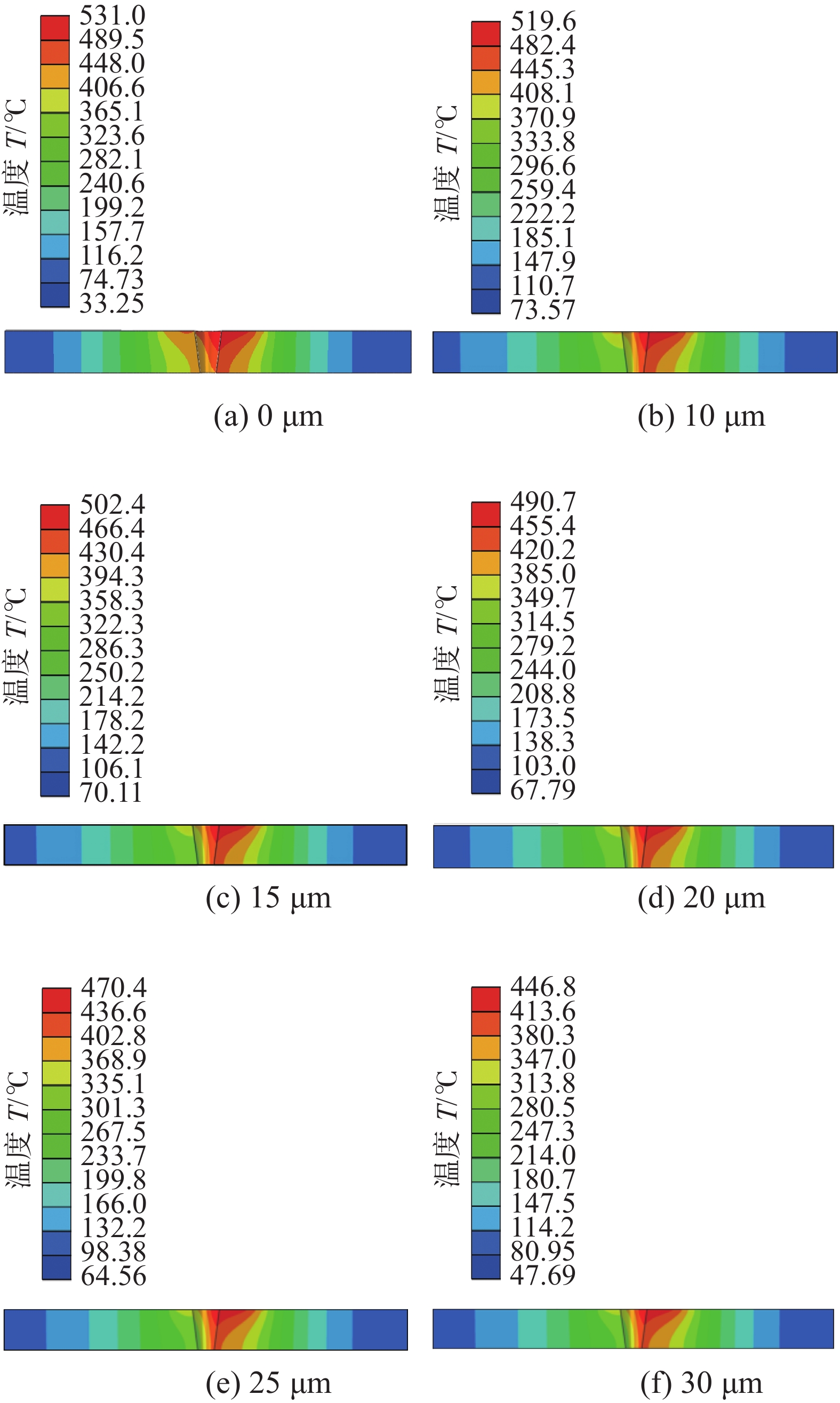

    图  14   不同振幅下焊缝温度分布

    Figure  14.   Temperature distribution inside the weld at different amplitude. (a) 0 μm; (b) 10 μm; (c) 15 μm; (d) 20 μm; (e) 25 μm; (f) 30 μm

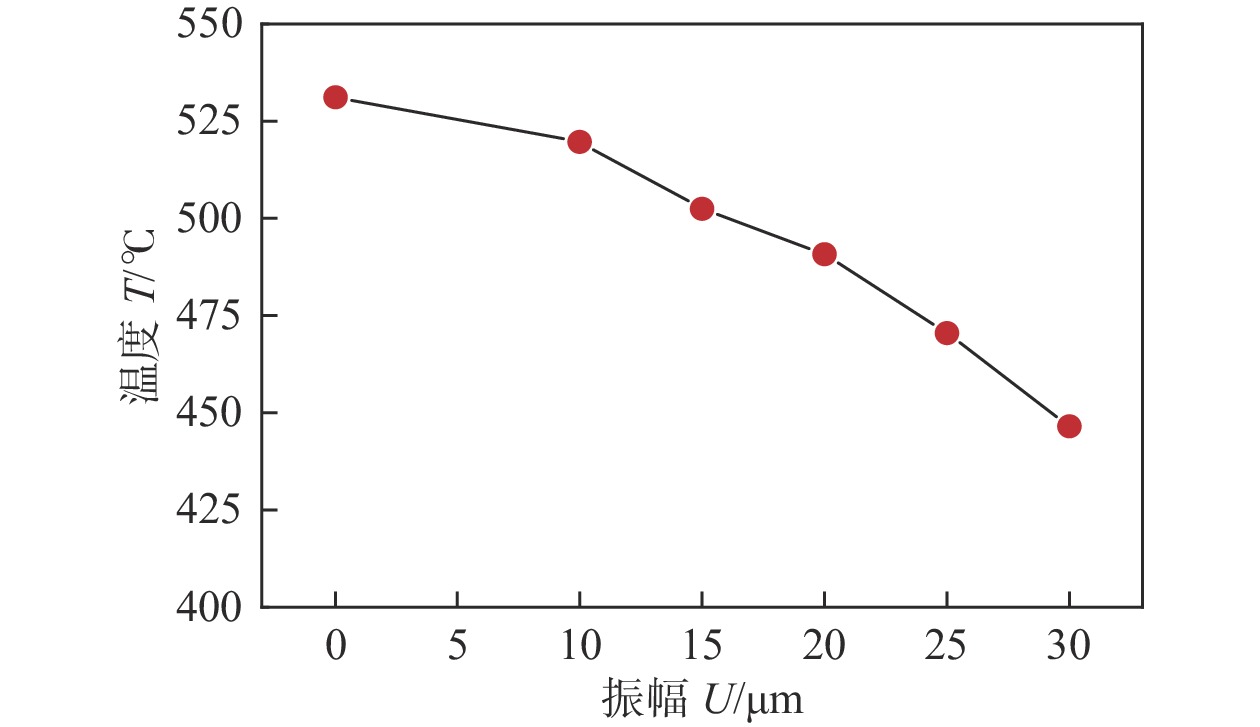

    图  15   振幅对焊接峰值温度的影响曲线

    Figure  15.   Eeffect of amplitude on peak welding temperature

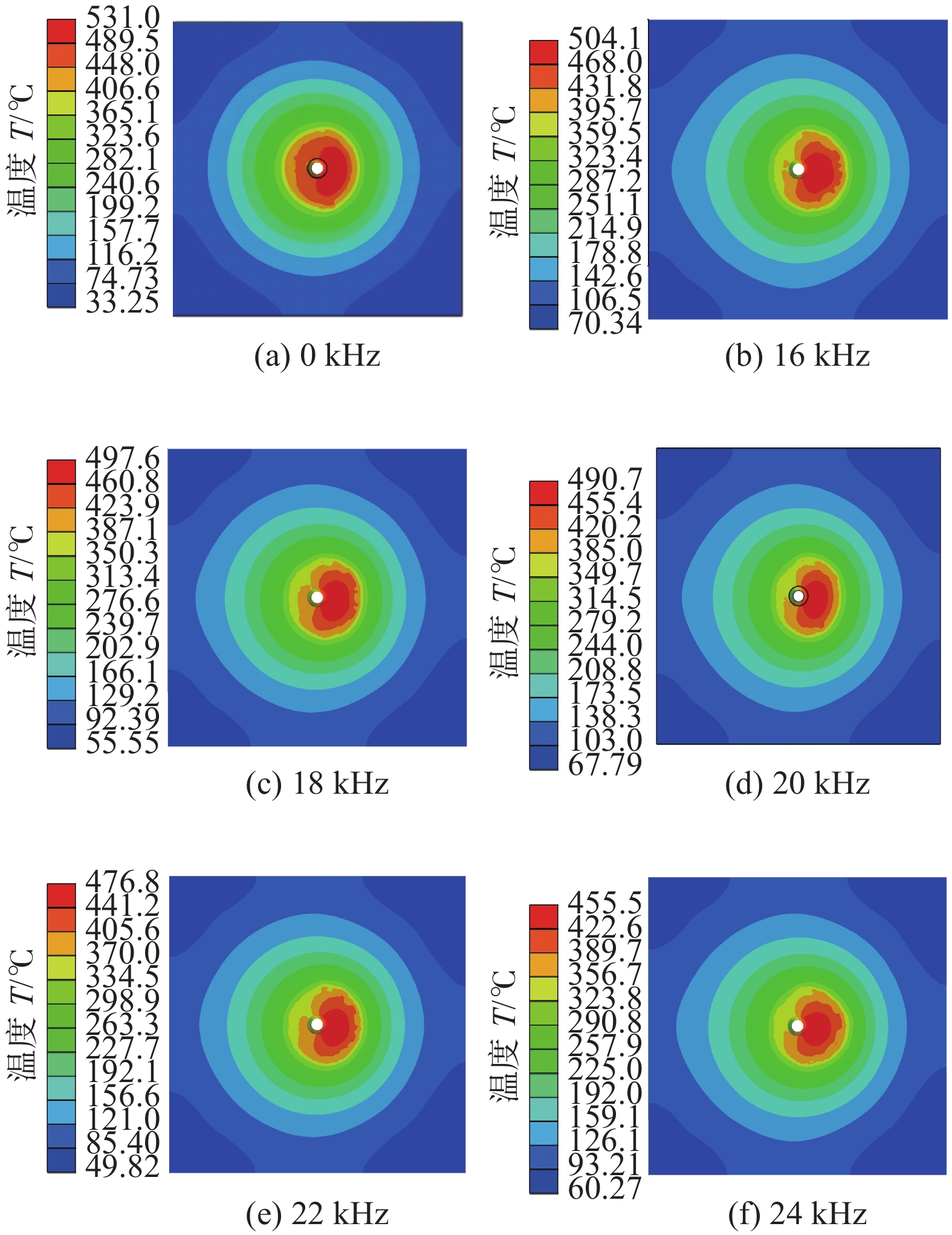

    图  16   不同频率下表面温度分布

    Figure  16.   Welding temperature at different frequency. (a) 0 kHz; (b) 16 kHz; (c) 18 kHz; (d) 20 kHz; (e) 22 kHz; (f) 24 kHz

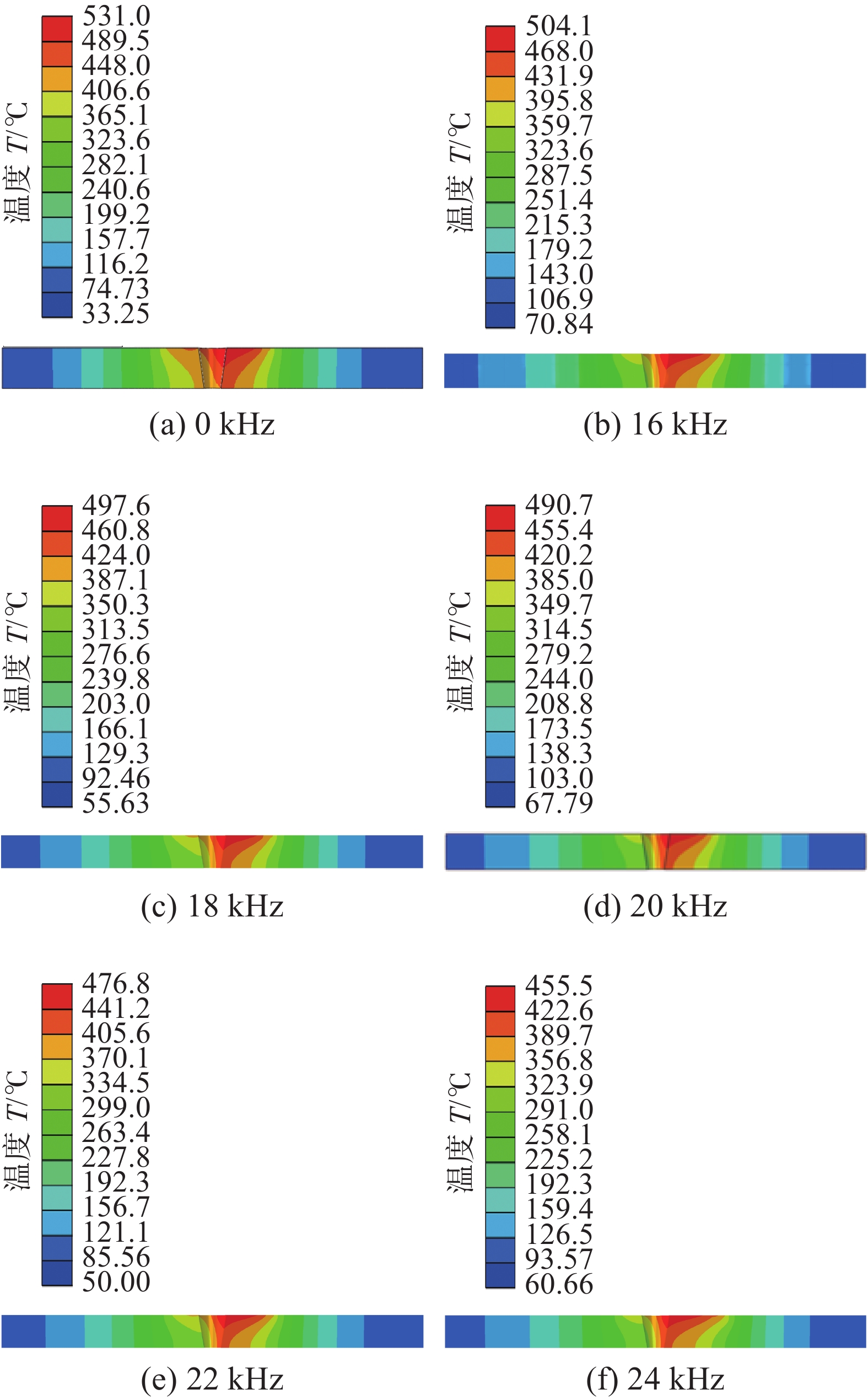

    图  17   不同频率下的焊缝温度分布

    Figure  17.   Temperature distribution inside the weld at different frequency. (a) 0 kHz; (b) 16 kHz; (c) 18 kHz; (d) 20 kHz; (e) 22 kHz; (f) 24 kHz

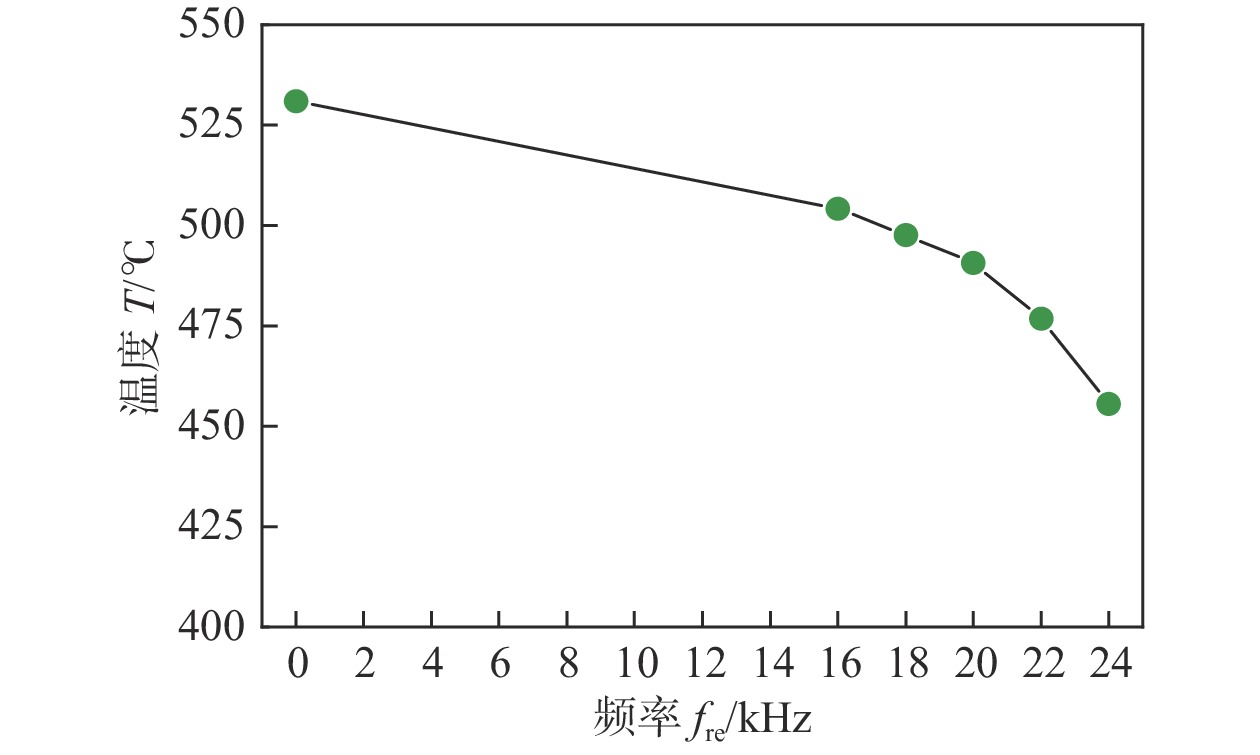

    图  18   焊接峰值温度受频率影响曲线

    Figure  18.   Effect of frequency on peak welding temperature

    表  1   6061铝合金物理性能参数

    Table  1   Physical property parameters of 6061 aluminum alloy

    温度
    T/℃
    密度
    ρ/(kg·mm−3)
    比热容
    c/(J·kg−1·K−1)
    热导率
    k /(W·m−1·K−1)
    25.0
    93.3
    204.4
    315.5
    426.7
    500.0
    2700
    2685
    2657
    2630
    2602
    2580
    896
    978
    1028
    1078
    1133
    1160
    167
    177
    192
    207
    223
    244
    下载: 导出CSV

    表  2   本构模型参数

    Table  2   Parameters of constitutive model

    初始屈服应力
    A/MPa
    应变硬化模量
    B/MPa
    材料应变率强化参数
    C
    硬化指数
    q
    热软化系数
    m
    熔点温度
    ${T_{\rm{m}}}$/℃
    参考温度
    $ {T_{\rm{r}}} $/℃
    289.6203.40.0110.351.34652.3720
    下载: 导出CSV

    表  3   UAFSW焊接工艺参数

    Table  3   Welding parameters of UAFSW

    轴肩压入深度H/mm 转速n/(r·min−1) 焊接速度v/(mm·min−1) 环境温度T/℃ 超声频率f / kHz 超声振幅U/μm
    0.1 950 60 20 0,16,18,20,22,24 0,10,15,20,25,30
    下载: 导出CSV
