Research progress of laser direct writing technologies for the conductive metallic wire on dielectric surface
-
摘要:
电介质表面金属导线在微电子、光电子、机电系统等领域的需求极大. 作为一种无掩膜柔性制造技术,激光直写可在多种电介质表面制造任意形状金属导线,近年来迅速发展. 基于激光与材料相互作用的光化学和光热效应,电介质表面金属导线激光直写技术可分为光致化学还原金属离子、选择性激光烧结、激光诱导向前转移、激光加热还原金属离子等. 文中详细介绍了几种金属导线激光直写技术的原理、特点以及最新研究进展,并对激光直写技术在金属导线的制造中的发展进行了总结和展望.
Abstract:Fabrication of conductive metallic wire on dielectric surface has a broad application in microelectronics, optoelectronics, electromechanical systems, etc. As a very promising alternative, laser direct writing is a maskless, efficient, and flexible approach that readily allows for free-form writing of a wide range of conductive metallic patterns on substrates, and hence has attracted an enormous amount of attention in the past several years. Laser direct writing can be achieved via photochemical or photothermal process, including photochemical reduction of metal ions, laser induced forward transfer, laser heating reduction of metal ions, etc. Herein, the laser direct writing strategies for fabrication of conductive metallic wires including the principle, characteristics and research progress have been reviewed in detail. Furthermore, remaining challenges and development trends are summarized and prospected.
-
Keywords:
- laser manufacturing /
- laser direct writing /
- conductive metallic wire
-
-

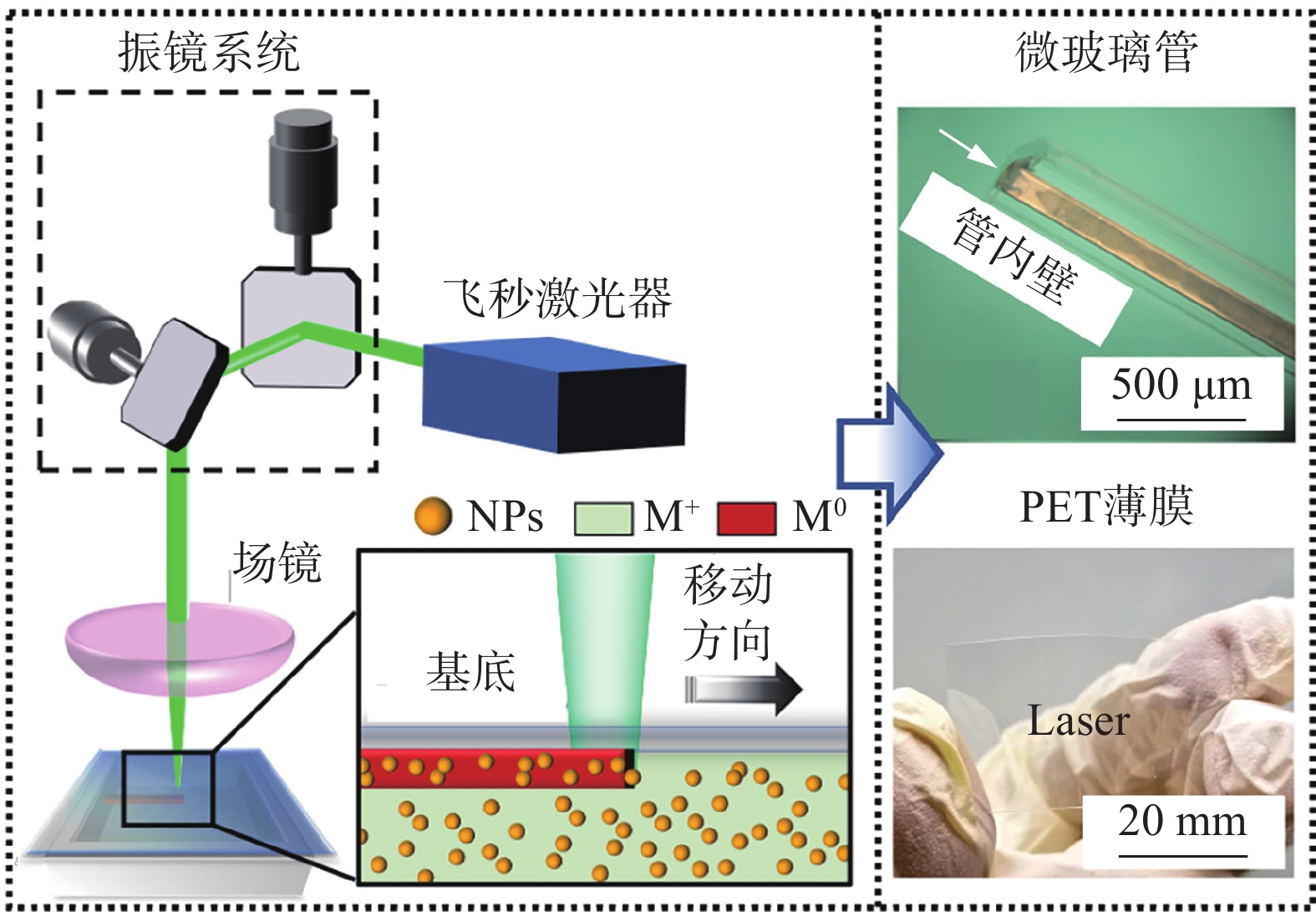

图 5 纳米颗粒增强吸收飞秒激光加热还原Cu2+[69]
Figure 5. Femtosecond laser heating reduction of Cu2+ via nanoparticle enhanced absorption
表 1 不同激光直写技术制造金属导线典型研究结果对比
Table 1 Comparison of the conductive metallic wires based on the laser direct writing technologies
光学效应 激光直写技术 相组成 最小线宽 最高制造速率 导电性 技术优/缺点 光化学 单光子还原
金属离子Ag[19] 15 μm 100 μm/s 3.1 × 10−8 Ω·m
(化学镀Cu)优点:基底热累积少、热变形低,避免金属过氧化.
缺点:金属颗粒孤立不连续,导线不连续.Au[20] — 曝光60 min — Au[21] 1 μm 曝光3 s — 光化学 双光子还原
金属离子Au[25] 228 nm 5 μm/s 1.7 × 10−7 Ω·m 优点:金属导线分辨率高,线宽可以突破光学衍射
极限.
缺点:直写速度一般低于百微米每秒,制造效率低.Ag[28] 120 nm 6 μm/s — Ag[30] 700 nm 24 μm/s 5.3 × 10−8 Ω·m Ag[31] 186 nm 10 μm/s 4.1 × 10−7 Ω·m 光热 选择性激光烧结金属纳米颗粒 Cu[18] 16.5 μm 400 mm/s 1.5 × 10−7 Ω·m 优点:激光引起纳米颗粒表面形成局部等离子体共
振增强光热效应,缩短金属材料烧结时间.
缺点:金属纳米颗粒不稳定,材料合成难度大、成
本高.Ag[38] ~ 200 μm 4 mm/s 8.0 × 10−8 Ω·m Ag[39] 4 μm 40 mm/s 5.3 × 10−8 Ω·m Ag[41] 5 μm 4 mm/s 8.9 × 10−8 Ω·m Ag[42] — 200 μm/s 7.1 × 10−8 Ω·m 光热 激光诱导
向前转移Ag[53] 70 μm 450 mm/s 2.5 × 10−7 Ω·m 优点:供体层与接收基底分离,避免成形金属对待
加工材料造成污染.
缺点:金属导线边缘精度不高,墨水层状态不稳定.Ag[46] 85 μm — 4.0 × 10−8 Ω·m Pt[47] 600 nm 10 μm/s 4.2 × 10−6 Ω·m Ag[47] 720 nm 20 μm/s 1.7 × 10−7 Ω·m 光热 激光加热还原
金属离子Ni[58] 6.5 μm 10 mm/s 6.3 × 10−7 Ω·m 优点:条件简单、制造效率高.
缺点:采用连续或短脉冲激光器,热影响明显、金
属导线精度不高,热敏基底易损伤.Cu[16] — 20 mm/s 0.57 Ω/sq Cu[62] 130 μm 10 mm/s 4.0 × 10−8 Ω·m Cu[63] ~ 500 μm 5 mm/s 3.4 × 10−6 Ω·m Cu[64] 760 μm 3 mm/s 1.2 Ω/sq Cu[69] 50 μm 100 mm/s 0.13 Ω/sq 技术优化:纳米材料增强吸收飞秒激光加热还原金属
离子,制造效率高、金属导线成形质量高. -
