Bending fatigue behavior of biomedical Ti-6Al-4V alloy prepared by selective laser melting
-
摘要:
分析了SLM Ti-6Al-4V合金的弯曲疲劳行为及相应的微观组织和断口形貌，设置与SLM试样化学成分相同的轧制态Ti-6Al-4V合金进行对比研究. 采用X射线衍射(XRD)、结合电子背散射衍射(EBSD)的扫描电子显微镜(SEM)对合金的微观组织进行分析. 结果表明， 三点弯曲疲劳裂纹起始于准解理断裂表面附近的应力集中，随后向内扩展. SLM成形Ti-6Al-4V合金的弯曲疲劳寿命高于轧制成形Ti-6Al-4V合金，SLM Ti-6Al-4V合金内部孔洞缺陷导致表面附近应力集中，促进疲劳裂纹形核；而SLM Ti-6Al-4V合金中随机取向的α + β晶粒、二次裂纹和孔洞延缓了裂纹扩展，提高了疲劳寿命. 对于轧制态Ti-6Al-4V合金， 由大量近似取向α晶粒组成的宏观区引起应力集中， 形成微裂纹，导致疲劳裂纹形核，而且宏观区对裂纹扩展的阻碍作用较小，不利于材料的疲劳寿命.
-
关键词:
- 激光选区熔化 /
- Ti-6Al-4V合金 /
- 微观组织 /
- 弯曲疲劳 /
- 裂纹扩展
Abstract:The bending fatigue behavior, the corresponding microstructure and fracture morphology of SLM Ti-6Al-4V alloy were studied. The rolled Ti-6Al-4V alloy with the same chemical composition as the SLM sample was set for comparative study. X-ray diffraction (XRD), scanning electron microscope (SEM) with electron backscatter diffraction (EBSD) were used to analyze the microstructure of the alloy. The results show that the three-point bending fatigue cracks initiate from stress concentration areas near the quasi-cleavage fracture surface, and then propagate inward.The bending fatigue life of SLM Ti-6Al-4V alloy was higher than that of rolled Ti-6Al-4V alloy. SLM Ti-6Al-4V internal hole defects led to stress concentration near the surface, resulting in fatigue crack nucleation. However, the random orientation α + β grains, secondary cracks, and holes in the SLM Ti-6Al-4V alloy delayed the crack propagation and improved fatigue life. As for rolled Ti-6Al-4V, the macrozone composed of a large number of α grains with approximate orientation caused the stress concentration and the formation of micro-cracks, which led to the nucleation of fatigue cracks. Moreover, the macrozone had little hindrance to crack propagation, which is not conducive to the fatigue life of materials.
-
Keywords:
- selective laser melting /
- Ti-6Al-4V alloy /
- microstructure /
- bending fatigue /
- crack propagation
-
0. 序言
Ti-6Al-4V合金具有良好的力学性能、耐腐蚀性和生物相容性，被认为是在航空航天、石油化工、生物医疗、汽车[1-5]等领域具有良好应用前景的材料. 然而，由于市场上Ti-6Al-4V合金构件大多是通过锻造或轧制原材料机械加工成形，这类传统加工工艺存在能耗高、生产周期长、材料利用率低以及复杂零件成形难度大等问题，限制了钛合金的利用和发展[6-8].
激光选区熔化(selective laser melting，SLM)是一种将切片三维模型输入打印机，再利用高能激光束将金属粉末熔化到基板上，最终粉末冷却凝固逐层成形的技术，通过SLM成形可以获得形状复杂、密度大、精度高的Ti-6Al-4V合金产品[9-11]. 由于SLM成形Ti-6Al-4V合金具有高度的个性化和材料利用率高等优点，已被广泛应用于生物金属领域. 相较于锻造或轧制，SLM制备的Ti-6Al-4V合金在成形过程中的熔化和凝固速率较高，导致其晶粒细小，从而具有更优异的力学性能[12-18].
近年来，学者们对Ti-6Al-4V的疲劳性能进行了大量研究[19-23]. Hu等人[20]研究了气孔和未熔合缺陷的数量、形状及尺寸对疲劳性能的影响，发现尺寸较大的缺陷是造成疲劳裂纹产生的主要原因，这也导致试样的疲劳性能差，疲劳寿命低； Ganor等人[21]利用超声表面冲击技术对Ti-6Al-4V合金进行表面处理，观察到其表面上出现了纳米晶粒，这些晶粒能够使得疲劳裂纹在靠近表面一定深度处萌生，从而有效提高了疲劳性能；Wang等人[22]研究了锻造温度、变形量对弯曲疲劳性能的影响，发现不同锻造工艺下的裂纹萌生机制主要为表层或亚表层初生α相解理、表层α-β相界面滑移和表层α′晶界滑移.
在生物医学应用中，例如牙科支架、支架连接体、牙冠等修复体以及其他金属生物植入体在服役中经常受到弯曲应力和侧向压力的作用，从而产生弯曲疲劳失效. 目前，关于SLM Ti-6Al-4V合金弯曲疲劳的研究还较少，为了确保SLM Ti-6Al-4V合金在生物医学应用中具有可靠性和较长使用寿命，对其弯曲疲劳行为及性能进行研究. 从微观组织角度分析了SLM成形生物医用Ti-6Al-4V合金的弯曲疲劳行为，并用轧制成形Ti-6Al-4V合金与之对比，为SLM生物医用合金的制备提供了参考，为进一步应用SLM Ti-6Al-4V合金提供了思路.
1. 试验方法
Ti-6Al-4V合金粉末和轧制态Ti-6Al-4V合金由成都科宁达材料有限公司提供，以轧制态Ti-6Al-4V合金棒为前驱体材料，采用电极感应气雾化法制备Ti-6Al-4V合金粉末. SLM与轧制态Ti-6Al-4V合金具有相同的化学成分，该成分符合Ti-6Al-4V合金外科植入物的金属材料标准ISO5832-3—2016. 表1列出了Ti-6Al-4V合金的主要化学成分，Ti-6Al-4V合金粉末的SEM形貌，如图1所示，颗粒尺寸在10 ~ 60 μm之间.
表 1 Ti-6Al-4V合金的化学成分 (质量分数，%)Table 1. Chemical compositions of Ti-6Al-4V alloyAl C Fe S V Ti 6.094 0.027 0.125 0.043 3.982 余量 采用广东汉邦科技有限公司HBD-150型3D打印机制备SLM Ti-6Al-4V合金块体、弯曲、拉伸和弯曲疲劳试样(图2)，弯曲和弯曲疲劳试样均采用水平成形[24]. SLM成形Ti-6Al-4V合金试样的优化工艺参数为激光功率180 W，扫描速度1 000 mm/s，光斑直径100 μm，扫描间距110 μm，铺粉层厚度30 μm. 为释放应力和改善微观组织[25]，SLM制备的Ti-6Al-4V合金在真空炉中850 ℃退火1 h，再通过线切割机加工SLM试样，然后逐步用SiC砂纸去除剩余的加工痕迹，打磨至2 000粒度，轧制试样的微观组织和力学性能均在轧制态下观察和测定.

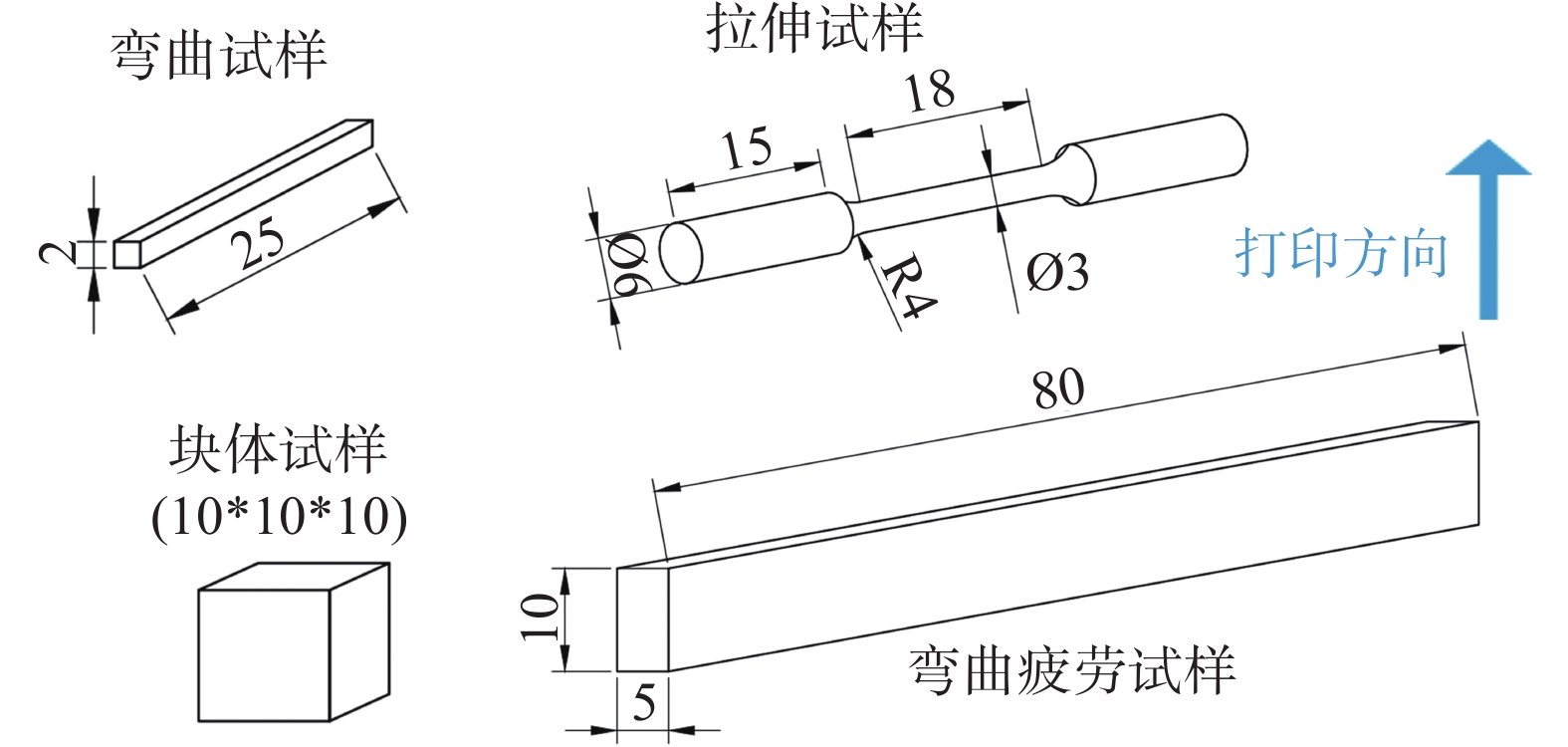

采用RGM-4300万能试验机，加载单元为20 kN，进行名义应变率为1.0 mm/min的拉伸试验和三点弯曲试验，SLM和轧制态每组试样至少测量3次取其平均值. 采用疲劳试验机(WDW-RD100)对SLM和轧制态试样采用不完全相同的载荷水平进行正弦单轴应力弯曲疲劳试验，各载荷水平采用3个试样进行疲劳寿命评估，试样放置在两个半径为1 mm的金属支架上，支撑跨距为60 mm，加载位置位于试样正中，设备采用载荷控制模式，加载波形为正弦波，恒定速率为400 N/min，选用相同的应力比R = σmin/σmax = 0.1和加载频率f = 10 Hz，试验中试样截面最大应力计算式为
$$ \sigma_{\max }=\frac{3 F L}{2 b d^{2}} $$ 式中：σmax为最大应力 (MPa)；F为加载载荷(N)；L为支撑跨距(mm)；b为试样宽度(mm)；d为试样深度(mm).
将块体试样预先用SiC砂纸打磨至3 000粒度，然后在抛光机上用0.04 μm二氧化硅抛光液抛光至镜面，采用XRD (Rigaku D / Max-2400)对SLM和轧制态Ti-6Al-4V合金在20° ~ 80° Cu K α辐射下的晶相组成进行分析. 在进行SEM测试前，所有试样在室温下用Kroll溶液(6 mL HF + 12 mL HNO3 + 100 mL H2O)腐蚀50 ~ 60 s，用丙酮超声清洗5 min. 采用场发射扫描电子显微镜(FESEM)对疲劳试验后制备的块体试样断口形貌进行表征，并进一步采用电子背散射衍射(EBSD，Oxford)对SLM和轧制态Ti-6Al-4V合金组织进行表征，采用场发射透射电镜(JEOL JEM 2100F)对轧制态Ti-6Al-4V合金组织进行表征.
2. 结果分析及讨论
2.1 微观组织

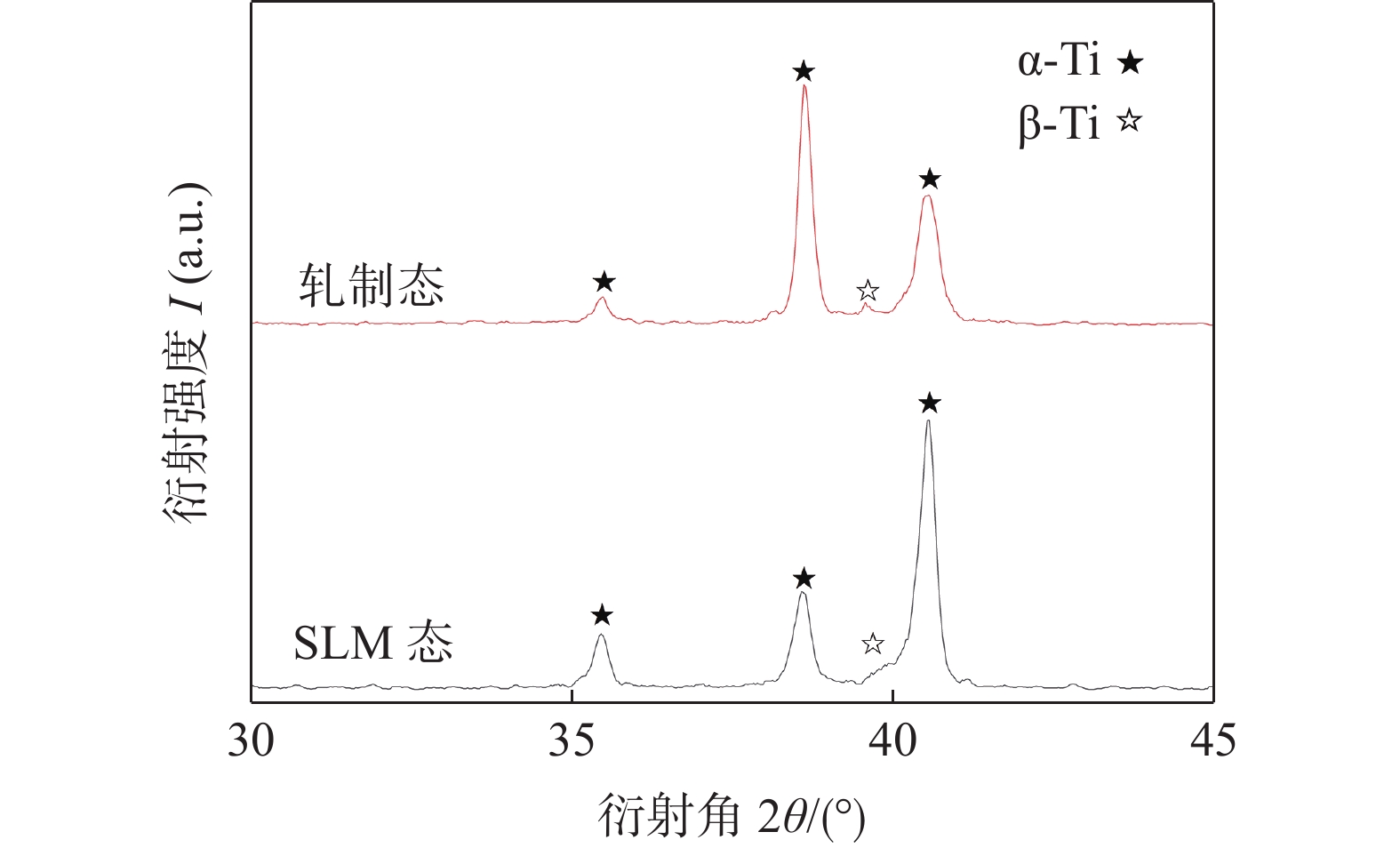

图3为SLM和轧制态Ti-6Al-4V合金的XRD图谱. SLM和轧制态Ti-6Al-4V合金均由密排六方( hexagonal close packed，HCP)α-Ti相(PDF#44-1294)和体心立方(body center cubic，BCC )β-Ti相(PDF#44-1288)组成. 从XRD图谱可以看出，SLM和轧制态均具有较高的α相含量和较低的β相含量，且成形方式对相组成无明显影响.
图4为轧制态和SLM Ti-6Al-4V合金微观组织形貌. 图4 (a)和图4(b)显示轧制态Ti-6Al-4V合金为α + β双相组织，其中α相沿特定方向呈现形变织构，β相分布于α相之间，同时在α相内部发现了纳米β相；图4 (c)和图4(d)为SLM Ti-6Al-4V合金在850 ℃退火状态下的微观组织，呈现出典型的SLM超细α + β组织，发现SLM的晶粒尺寸小于轧制的晶粒尺寸， α相呈针状，厚度为2 ~ 3 μm，β相分布在α相之间. SLM Ti-6Al-4V合金的α相中未观察到超细β相，与轧制态Ti-6Al-4V合金有较大差异.
![]()
图 4 轧制态和SLM Ti-6Al-4V合金微观组织形貌Figure 4. Microstructure morphology of rolled and SLM Ti-6Al-4V alloy. (a) rolled Ti-6Al-4V alloy; (b) rolled Ti-6Al-4V alloy (high magnification); (c) SLM Ti-6Al-4V alloy; (d) SLM Ti-6Al-4V alloy (high magnification)为了进一步明确Ti-6Al-4V合金的微观组织，对SLM和轧制态Ti-6Al-4V合金进行了电子背散射衍射(EBSD)分析. 结果由相图、核平均错向图(KAM)和反极图(IPF)组成(图5). 从相图(图5(a)和图5(d))可以看出，SLM和轧制态Ti-6Al-4V合金均以α-Ti相(HCP)为主，体积分数大于90%，β相分布在α相周围，只有1%左右. 从IPF图中可以看出，SLM Ti-6Al-4V合金具有随机取向的针状α相的网状结构，起到缓解各向异性的作用. 在轧制态Ti-6Al-4V合金中，许多区域由具有相似取向的细长α相组成，称为宏观区，此外SLM和轧制态Ti-6Al-4V合金的KAM值较低(图5(b)和图5(e))，表明残余应力较低.
![]()
图 5 SLM和轧制态Ti-6Al-4V合金电子背散射衍射分析结果Figure 5. EBSD analysis results of SLM and rolled Ti-6Al-4V alloy. (a) phase diagram of SLM(95.29% α-Ti，1.05% β-Ti); (b) KAM maps of SLM; (c) IPF of SLM; (d) phase diagram of rolled (91.94% α-Ti，1.01% β-Ti); (e) KAM maps of rolled; (c) IPF of rolled2.2 静态力学性能

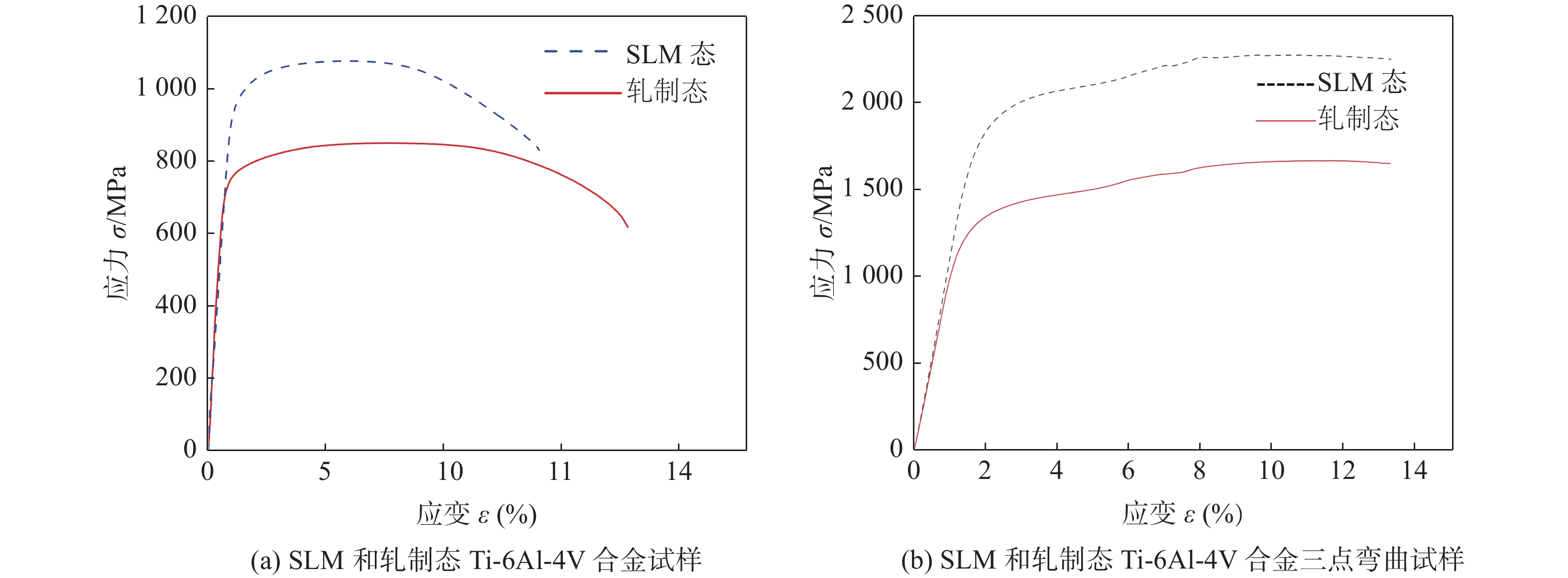

图6为SLM和轧制态Ti-6Al-4V试样及弯曲试样未发生断裂的弯曲应力—应变曲线. 在相同条件下至少测试了3个试样，力学性能汇总于表2. 与轧制态Ti-6Al-4V相比，SLM成形Ti-6Al-4V合金具有更高的屈服强度、抗拉强度和抗弯强度，但轧制态Ti-6Al-4V合金的断后伸长率优于SLM Ti-6Al-4V合金.
![]()
图 6 SLM和轧制态Ti-6Al-4V合金应力-应变曲线Figure 6. Stress-strain curves of SLM and rolled Ti-6Al-4V alloy. (a) tensile；(b) three-point bending表 2 SLM和轧制态Ti-6Al-4V合金的力学性能和标准偏差Table 2. Mechanical properties and standard deviation of SLM and rolled Ti-6Al-4V alloy试样 断后伸长率
A (%)拉伸屈服强度
Rp0.2 / MPa抗拉强度
Rm / MPa抗弯强度
Rf / MPaSLM态 13.17±0.90 934±6.71 1057±9.85 2244.12±12.23 轧制态 16.33±0.41 706.67±29.63 856.67±3.40 1636.67±20.56 2.3 疲劳性能

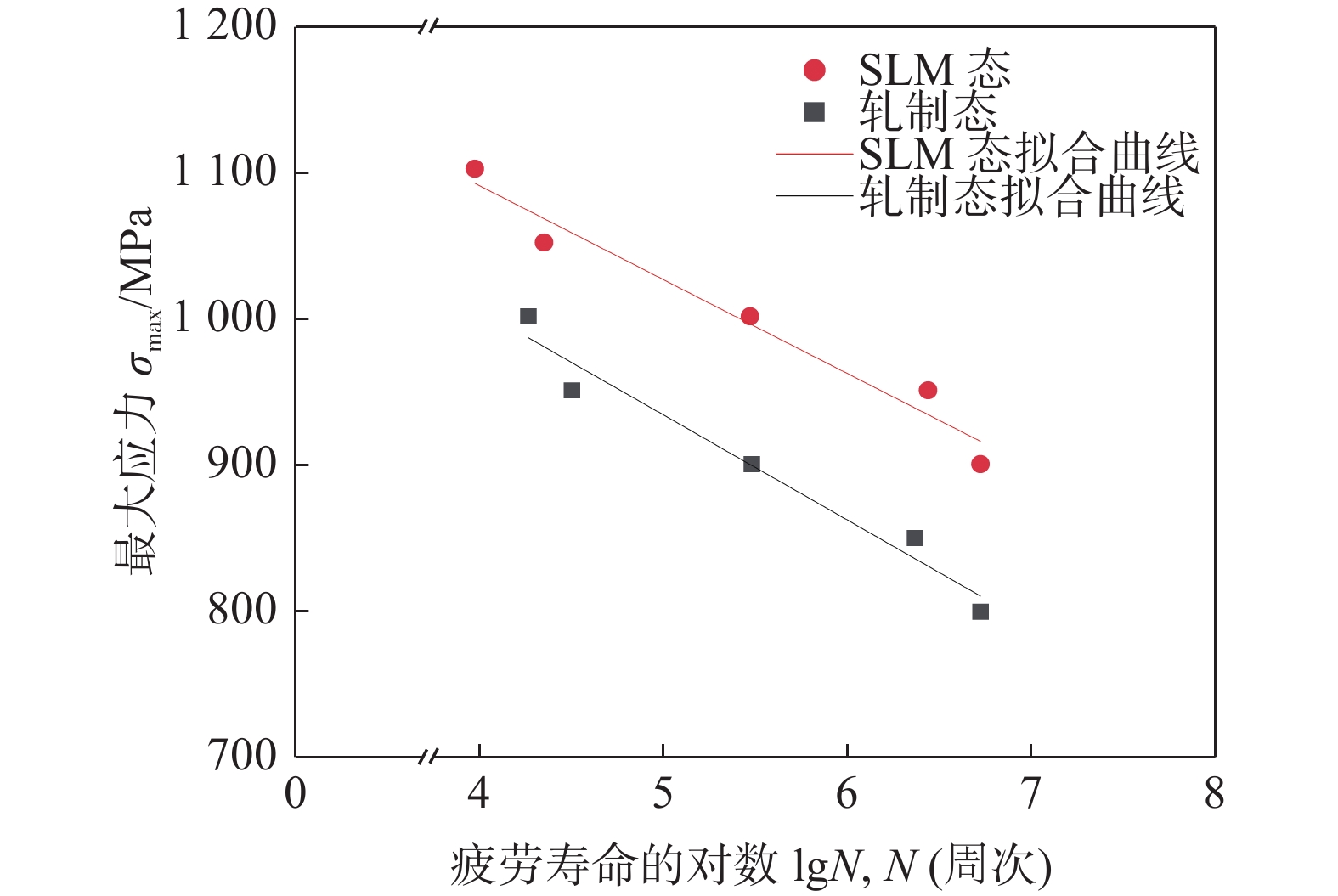

表3为SLM和轧制态Ti-6Al-4V试样在弯曲疲劳试验中承受的最大应力和疲劳寿命，对应的S-N曲线如图7所示，从图中可以发现，两条拟合曲线几乎平行，在相同应力条件下，轧制态Ti-6Al-4V合金的疲劳寿命低于SLM Ti-6Al-4V合金. SLM Ti-6Al-4V合金在1 100 MPa应力下的疲劳寿命为2.8 × 104周次，在最大900 MPa应力下承受1 × 107次载荷循环后未发生断裂；轧制态Ti-6Al-4V合金在1 000 MPa应力下的疲劳寿命为5.1 × 104周次，比相同应力下SLM Ti-6Al-4V合金的疲劳寿命降低了10倍左右，当应力最大为800 MPa时，轧制态Ti-6Al-4V合金经1 × 107次加载循环后未发生断裂. 以上Ti-6Al-4V合金的疲劳性能数据与前人研究结果相当[26-27].
表 3 SLM和轧制态Ti-6Al-4V合金在不同最大应力下的疲劳寿命Table 3. Fatigue life of SLM and rolled Ti-6Al-4V alloy under different maximum stressesSLM态 轧制态 最大应力σmax/MPa 疲劳寿命N(104次) 最大应力σmax/MPa 疲劳寿命N(104次) 900 1 000(未断) 800 1 000(未断) 950 540 850 460 1 000 68 900 70 1 050 6.2 950 8.5 1 100 2.8 1 000 5.1 为了进一步分析SLM和轧制态Ti-6Al-4V合金的弯曲疲劳行为机理，对两种合金的弯曲疲劳断口形貌进行了表征. 图8为SLM Ti-6Al-4V合金试样在1 000 MPa应力下循环6.8 × 105次后的弯曲疲劳断口形貌，宏观形貌由典型的疲劳裂纹萌生区(图8(b)和图8(c))、裂纹扩展区(图8(e)和图8(f))和最终断裂区组成(图8(d)). 在裂纹萌生区表面附近发现孔洞，靠近表面的孔洞萌生了弯曲疲劳裂纹，在孔洞附近发现了一些台阶，表明孔洞附近区域存在高度应力集中，这些应力集中会诱发周围的解理状裂纹，导致台阶面的出现. 由此得出，孔洞等缺陷处容易存在应力集中，从而成为弯曲疲劳裂纹的萌发起源，对SLM试样的弯曲疲劳性能产生较大影响. 图8(e)和图8(f)为SLM Ti-6Al-4V合金的弯曲疲劳裂纹扩展区，弯曲疲劳的裂纹扩展区形貌中发现了一些孔洞，主裂纹附近的孔洞会引起应力集中，使主裂纹的方向发生偏转[28]. 在SLM Ti-6Al-4V合金的裂纹扩展区可以观察到二次裂纹(图8(f))，主裂纹尖端附近存在严重的塑性变形，导致二次裂纹产生，同时二次裂纹的形成消耗了大量的能量，降低了原生裂纹的扩展速率[29]. 图8(d)为SLM疲劳试样的最终断裂区域，形貌显示有较多的韧窝和撕裂孔洞，表明断裂模式为韧性断裂.
![]()
图 8 SLM Ti-6Al-4V合金在最大应力1 000 MPa下疲劳循环6.8 × 105次的断口形貌Figure 8. Fracture morphology of SLM Ti-6Al-4V alloy after fatigued 6.8 × 105 cycles at maximum stress of 1 000 MPa. (a) fatigue fracture morphology of SLM Ti-6Al-4V alloy; (b) crack initiation region(magnification of red region in fig. 8(a)); (c) magnification of red region in fig.8 (b); (d) final fracture region; (e) crack propagation region (magnification of green region in fig.8 (a)); (f) magnification of green region in fig.8 (e)图9为轧制态Ti-6Al-4V合金试样在最大应力850 MPa下循环4.6 × 106次宏观疲劳断口形貌. 宏观断口上的亮区为图9(b)中的裂纹萌生区，这些明亮区域包含光滑的断面(图9(c))，表现出准解理断裂的特征，这些解理面的特征能够推断裂纹的扩展路径和裂纹形核的位置. 图9(e)和图9(f)为疲劳裂纹扩展区，在该区域也发现了一些二次裂纹，但这些二次裂纹都主要沿着解理面和裂纹扩展的方向，并未使主裂纹方向明显偏转，因此其阻止裂纹扩展的作用较弱. 图9(d)为轧制态试样的断裂区，同样存在大量韧窝和撕裂痕迹，这也表明其弯曲疲劳断裂属于韧性断裂模式.
![]()
图 9 轧制态Ti-6Al-4V合金在最大应力850 MPa下疲劳循环4.6 × 106次断口形貌Figure 9. Fracture morphology of rolled Ti-6Al-4V alloy after fatigued 4.6 × 106 cycles at maximum stress of 1 000 MPa.(a) fatigue fracture morphology of rolled Ti-6Al-4V alloy; (b) crack initiation region(magnification of red region in fig.9 (a)); (c) magnification of red region in fig.9 (b); (d) final fracture region; (e) crack propagation region( magnification of green region in fig.9 (a); (f) magnification of green region in fig.9 (e)从疲劳断口分析得出，SLM和轧制态Ti-6Al-4V合金是由试样边缘处存在孔洞等缺陷或形变织构形成的α晶粒，宏观区在循环载荷下的应力集中而萌发初始细小的疲劳微裂纹，微裂纹在交变载荷的持续循环下扩展形成疲劳断裂的主裂纹，主裂纹沿着特定晶界或宏观区边界扩展产生解理形貌，同时主裂纹尖端附近发生严重塑性变形后会萌生二次裂纹，这些二次裂纹降低了主裂纹扩展的速率. 当裂纹扩展途径中遇到孔洞缺陷时会因为应力集中阻碍扩展，随着疲劳裂纹的持续扩展，当Ti-6Al-4V合金试样剩余截面快达到塑性失稳状态时会发生类似静态拉伸中的韧性断裂，断口上的大量韧窝和撕裂棱随之产生，最终试样截面完全断裂.
结合EBSD结果(图5(c)和图5(f))分析得出，轧制态Ti-6Al-4V合金相同晶粒取向的α相形成了一些宏观区，相比之下，宏观区周围的晶粒取向与宏观区相差较大，因此变形过程中应力更容易集中在宏观区附近，增加了裂纹形核的概率. 在先前的研究中[30]，有学者发现致命的裂纹形核位置总是位于含有高体积分数α晶粒的宏观区中，这些区域利于疲劳裂纹的萌生，而SLM Ti-6Al-4V合金有较多随机取向的针状α相，这形成了与轧制态合金完全不同的晶界特征.
在疲劳裂纹的正向扩展中，晶界有着阻碍裂纹扩展的作用. α相晶界附近的一些微量杂质元素会削弱α相晶粒间的结合力，疲劳短裂纹总是沿着α + β晶界扩展，裂纹扩展方向随α相晶粒取向变化[31]. 图10为结合微观组织形貌绘制的SLM和轧制态Ti-6Al-4V合金疲劳裂纹扩展模式示意图.由此可以推断，SLM Ti-6Al-4V合金α + β晶界存在弯曲，在裂纹扩展路径上起到了抑制裂纹持续扩展的作用. 对于轧制态Ti-6Al-4V合金，由于宏观区中所有晶粒的取向几乎相同，因此可以将整个区域视为大晶粒，其晶界对阻碍裂纹扩展的作用较小[32-33]. 如图10所示，裂纹沿着宏观区的边界前进，没有穿过内部，甚至裂纹会沿着特定的晶界取向延展，这导致裂纹扩展速率增加，降低了疲劳寿命.
![]()

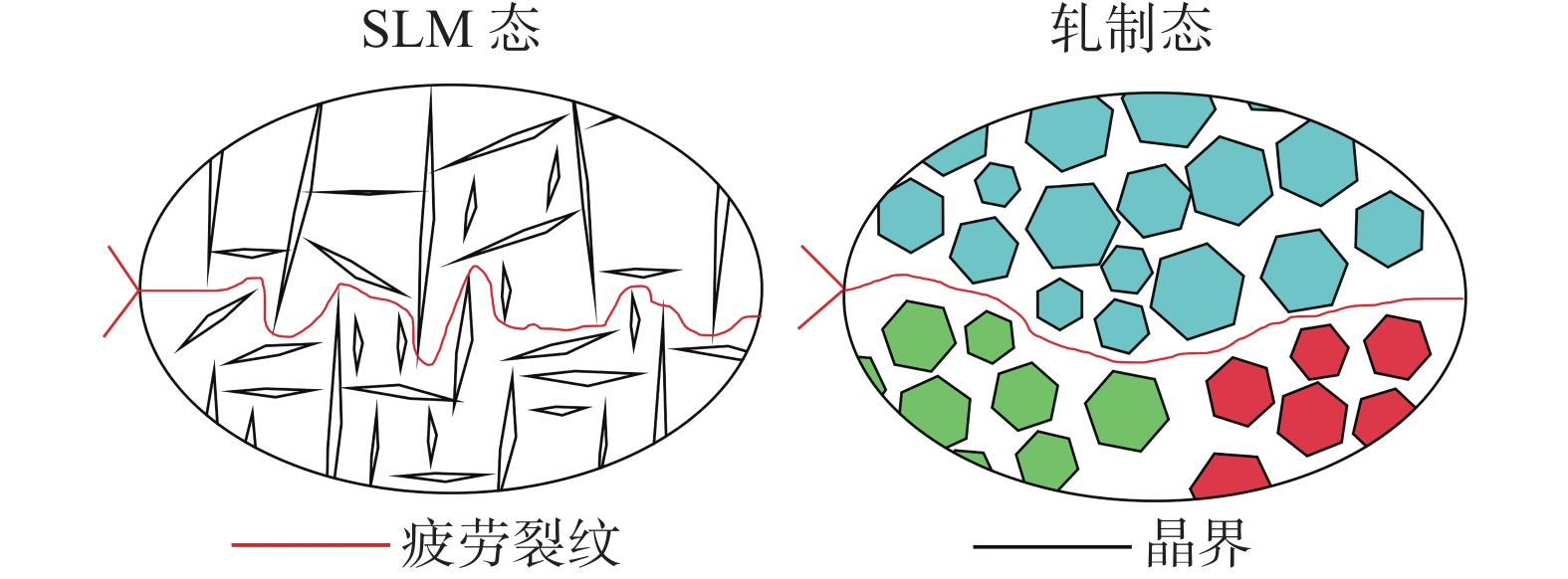

图 10 SLM和轧制态Ti-6Al-4V合金疲劳裂纹扩展模式图Figure 10. Fatigue crack propagation mode diagram in SLM and rolled Ti-6Al-4V alloy3. 结论
(1) SLM和轧制态Ti-6Al-4V合金均主要由α相(HCP)和少量β相(BCC)组成，两者均有良好的静态力学性能. SLM Ti-6Al-4V合金热处理后组织为取向随机、晶粒细小的针状α + β相，轧制态Ti-6Al-4V合金具有大量近似取向的α晶粒宏观区，且在α晶粒内部发现了分散的纳米级β晶粒. 轧制态Ti-6Al-4V合金晶粒尺寸大于SLM Ti-6Al-4V合金，且沿轧制方向存在择优取向.
(2) SLM和轧制态Ti-6Al-4V合金弯曲疲劳断裂模式属于解理/准解理断裂，裂纹主要起源于SLM Ti-6Al-4V合金边缘处孔洞缺陷和轧制Ti-6Al-4V合金α晶粒宏观区在疲劳载荷作用下的应力集中. SLM Ti-6Al-4V合金拥有细小随机取向的α + β晶粒，这些细小晶粒能减小应力集中对疲劳裂纹萌生的影响，也能使裂纹扩展路径发生偏转，从而降低裂纹扩展速率. 轧制Ti-6Al-4V合金的α晶粒宏观区更易萌生裂纹，且边界对裂纹扩展的阻碍作用较小，甚至会促进特定方向的疲劳裂纹扩展， 因此SLM Ti-6Al-4V合金相较于轧制Ti-6Al-4V合金具有更高的疲劳寿命.
-
![]()
图 4 轧制态和SLM Ti-6Al-4V合金微观组织形貌
Figure 4. Microstructure morphology of rolled and SLM Ti-6Al-4V alloy. (a) rolled Ti-6Al-4V alloy; (b) rolled Ti-6Al-4V alloy (high magnification); (c) SLM Ti-6Al-4V alloy; (d) SLM Ti-6Al-4V alloy (high magnification)
![]()
图 5 SLM和轧制态Ti-6Al-4V合金电子背散射衍射分析结果
Figure 5. EBSD analysis results of SLM and rolled Ti-6Al-4V alloy. (a) phase diagram of SLM(95.29% α-Ti，1.05% β-Ti); (b) KAM maps of SLM; (c) IPF of SLM; (d) phase diagram of rolled (91.94% α-Ti，1.01% β-Ti); (e) KAM maps of rolled; (c) IPF of rolled
![]()
图 6 SLM和轧制态Ti-6Al-4V合金应力-应变曲线
Figure 6. Stress-strain curves of SLM and rolled Ti-6Al-4V alloy. (a) tensile；(b) three-point bending
![]()
图 8 SLM Ti-6Al-4V合金在最大应力1 000 MPa下疲劳循环6.8 × 105次的断口形貌
Figure 8. Fracture morphology of SLM Ti-6Al-4V alloy after fatigued 6.8 × 105 cycles at maximum stress of 1 000 MPa. (a) fatigue fracture morphology of SLM Ti-6Al-4V alloy; (b) crack initiation region(magnification of red region in fig. 8(a)); (c) magnification of red region in fig.8 (b); (d) final fracture region; (e) crack propagation region (magnification of green region in fig.8 (a)); (f) magnification of green region in fig.8 (e)
![]()
图 9 轧制态Ti-6Al-4V合金在最大应力850 MPa下疲劳循环4.6 × 106次断口形貌
Figure 9. Fracture morphology of rolled Ti-6Al-4V alloy after fatigued 4.6 × 106 cycles at maximum stress of 1 000 MPa.(a) fatigue fracture morphology of rolled Ti-6Al-4V alloy; (b) crack initiation region(magnification of red region in fig.9 (a)); (c) magnification of red region in fig.9 (b); (d) final fracture region; (e) crack propagation region( magnification of green region in fig.9 (a); (f) magnification of green region in fig.9 (e)
![]()
图 10 SLM和轧制态Ti-6Al-4V合金疲劳裂纹扩展模式图
Figure 10. Fatigue crack propagation mode diagram in SLM and rolled Ti-6Al-4V alloy
表 1 Ti-6Al-4V合金的化学成分 (质量分数，%)
Table 1 Chemical compositions of Ti-6Al-4V alloy
Al C Fe S V Ti 6.094 0.027 0.125 0.043 3.982 余量
下载: 导出CSV
表 2 SLM和轧制态Ti-6Al-4V合金的力学性能和标准偏差
Table 2 Mechanical properties and standard deviation of SLM and rolled Ti-6Al-4V alloy
试样 断后伸长率
A (%)拉伸屈服强度
Rp0.2 / MPa抗拉强度
Rm / MPa抗弯强度
Rf / MPaSLM态 13.17±0.90 934±6.71 1057±9.85 2244.12±12.23 轧制态 16.33±0.41 706.67±29.63 856.67±3.40 1636.67±20.56
下载: 导出CSV
表 3 SLM和轧制态Ti-6Al-4V合金在不同最大应力下的疲劳寿命
Table 3 Fatigue life of SLM and rolled Ti-6Al-4V alloy under different maximum stresses
SLM态 轧制态 最大应力σmax/MPa 疲劳寿命N(104次) 最大应力σmax/MPa 疲劳寿命N(104次) 900 1 000(未断) 800 1 000(未断) 950 540 850 460 1 000 68 900 70 1 050 6.2 950 8.5 1 100 2.8 1 000 5.1
下载: 导出CSV
-
[1] Liu Shunyu, Shin Yung C. Additive manufacturing of Ti-6Al-4V alloy: A review[J]. Materials & Design, 2019, 164: 107552.
[2] Azizi H, Zurob H, Bose B, et al. Additive manufacturing of a novel Ti-Al-V-Fe alloy using selective laser melting[J]. Additive Manufacturing, 2018, 21: 529 − 535. doi: 10.1016/j.addma.2018.04.006
[3] Galindo-Valdés J S, Cortés-Hernández D A, Ortiz-Cuellar J C, et al. Laser deposition of bioactive coatings by in situ synthesis of pseudowollastonite on Ti6Al4V alloy[J]. Optics & Laser Technology, 2020, 134: 106586.
[4] Ginestra P, Ferraro R M, Zohar-Hauber K, et al. Selective laser melting and electron beam melting of Ti6Al4V for orthopedic applications: A comparative study on the applied building direction[J]. Materials, 2020, 13(23): 5584. doi: 10.3390/ma13235584
[5] 李星燃, 刘政麟, 姜鹏飞, 等. 激光增材制造Ti6Al4V/NiTi仿生功能梯度材料的界面特征及性能[J]. 焊接学报, 2023, 44(10): 27 − 33. doi: 10.12073/j.hjxb.20230307001 Liu Xingran, Liu Zhenglin, Jiang Pengfei, et al. Interface characteristics and properties of Ti6Al4V/NiTi bionic functionally graded materials fabricated by laser additive manufacturing[J]. Transactions of the China Welding Institution, 2023, 44(10): 27 − 33. doi: 10.12073/j.hjxb.20230307001
[6] Qian C, Xu H, Zhong Q. The influence of process parameters on corrosion behavior of Ti-6Al-4V alloy processed by selective laser melting[J]. Journal of Laser Applications, 2020, 32(3): 032010. doi: 10.2351/1.5139499
[7] Hafiz Muhammad Hamza, Kashif Mairaj Deen, Waseem Haider. Microstructural examination and corrosion behavior of selective laser melted and conventionally manufactured Ti-6Al-4V for dental applications[J]. Materials Science and Engineering:C, 2020, 113: 110980. doi: 10.1016/j.msec.2020.110980
[8] Fernandez D S, Wynne B P, Crawforth D P, et al. The Effect of forging texture and machining parameters on the fatigue performance of titanium alloy disc components[J]. International Journal of Fatigue, 2020, 142: 105949.
[9] Manowar Hussain, Pranshul Gupta, P Kumar, et al. Selective laser melting of single track on Ti–6Al–4V powder: Experimentation and finite element analysis[J]. Arabian Journal for Science and Engineering, 2020, 45: 1173 − 1180. doi: 10.1007/s13369-019-04263-1
[10] Thijs L, Verhaeghe F, Craeghs T, et al. A study of the microstructural evolution during selective laser melting of Ti-6Al-4V[J]. Acta Materialia, 2010, 58(9): 3303 − 3312. doi: 10.1016/j.actamat.2010.02.004
[11] Xiao Zhongxu, Chen Changpeng, Zhu Haihon, et al. Study of residual stress in selective laser melting of Ti-6Al-4V[J]. Materials & Design, 2020, 193: 108846.
[12] Liu Wei, Chen Chaoyue, Shuai Sansan, et al. Study of pore defect and mechanical properties in selective laser melted Ti6Al4V alloy based on X-ray computed tomography[J]. Materials Science & Engineering, A. Structural Materials:Properties, Misrostructure and Processing, 2020, 797: 139981.
[13] Chang Cheng, Huang Jian, Yan Xingchen, et al. Microstructure and mechanical deformation behavior of selective laser melted Ti-6Al-4V ELI alloy porous structures[J]. Materials Letters, 2020, 277: 128366. doi: 10.1016/j.matlet.2020.128366
[14] Miao Xiaojin, Liu Xin, Lu Peipei, et al. Influence of scanning strategy on the performances of GO-reinforced Ti-6Al-4V nanocomposites manufactured by SLM[J]. Metals - Open Access Metallurgy Journal, 2020, 10(10): 1379.
[15] Liu Jiangwei, Sun Qidon, Zhou Chang'an, et al. Achieving Ti-6Al-4V alloys with both high strength and ductility via selective laser melting[J]. Materials Science and Engineering, 2019, 766: 138319.1 − 138319.8.
[16] Xu Yangli, Zhang Dongyun, Guo Yanwu, et al. Microstructural tailoring of as-selective laser melted Ti-6Al-4V alloy for high mechanical properties[J]. Journal of Alloys and Compounds, 2019, 816: 152536.
[17] Li Junfeng, Wei Zhengying, Yang Lixiang, et al. Finite element analysis of thermal behavior and experimental investigation of Ti-6Al-4V in selective laser melting[J]. Optik - International Journal for Light and Electron Optics, 2020, 207: 163760. doi: 10.1016/j.ijleo.2019.163760
[18] Rautio T, Hamada A, Mkikangas J, et al. Laser welding of selective laser melted Ti-6Al-4V: Microstructure and mechanical properties[J]. Materials Today: Proceedings, 2020, 28: 907 − 911.
[19] Jeremy H Rao, Nikki Stanfor. A survey of fatigue properties from wrought and additively manufactured Ti-6Al-4V[J]. Materials Letters, 2020, 283: 128800.
[20] Hu Y N, Wu S, Wu Z, et al. A new approach to correlate the defect population with the fatigue life of selective laser melted Ti-6Al-4V alloy[J]. International Journal of Fatigue, 2020, 136: 105584. doi: 10.1016/j.ijfatigue.2020.105584
[21] Ganor Yaron Italy, Eitan Tiferet, Vogel Sven C, et al. Tailoring microstructure and mechanical properties of additively-manufactured Ti-6Al-4V using post processing[J]. Materials, 2021, 14(3): 658.
[22] Wang Bohan, Cheng Li, Cui Wenbin, et al. Effect of forging process on high cycle and very high cycle fatigue properties of TC4 titanium alloy under three-point bending[J]. Fatigue & Fracture of Engineering Materials & Structures, 2021, 44: 2054 − 2069.
[23] Jesus J S, Borrego L P, Ferreira J A M, et al. Fatigue crack growth behaviour in Ti-6Al-4V alloy specimens produced by selective laser melting[J]. International Journal of Fracture, 2020, 223: 123 − 133. doi: 10.1007/s10704-019-00417-2
[24] Simonelli M, Tse Y Y, Tuck C. Effect of the build orientation on the mechanical properties and fracture modes of SLM Ti–6Al–4V[J]. Materials Science & Engineering A, 2014, 616: 1 − 11.
[25] Vilaro T, Colin C, Bartout J D. As-fabricated and heat-treated microstructures of the Ti-6AI-4V alloy processed by selective laser melting[J]. Metallurgical and Materials Transactions, A. Physical Metallurgy and Materials Science, 2011, 42A(10): 3190 − 3199.
[26] Xu Z W, Liu A, Wang X S. Fatigue performance differences between rolled and selective laser melted Ti6Al4V alloys[J]. Materials Characterization, 2022, 189: 111963. doi: 10.1016/j.matchar.2022.111963
[27] Bao X, Cheng L, Ding J, et al. The effect of microstructure and axial tension on three-point bending fatigue behavior of TC4 in high cycle and very high cycle regimes[J]. Materials, 2020, 13(1): 68.
[28] Qian Guian, Jian Zhimo, Pan Xiangnan, et al. In-situ investigation on fatigue behaviors of Ti-6Al-4V manufactured by selective laser melting[J]. International Journal of Fatigue, 2019, 133: 105424.
[29] Dong Xin, Zhou Yanan, Sun Qi, et al. Fatigue behavior of biomedical Co–Cr–Mo–W alloy fabricated by selective laser melting[J]. Materials Science and Engineering:A, 2020, 795: 140000. doi: 10.1016/j.msea.2020.140000
[30] Uta E, Gey N, Bocher P, et al. Texture heterogeneities in αp/αs titanium forging analysed by EBSD‐Relation to fatigue crack propagation[J]. Journal of Microscopy, 2010, 233(3): 451 − 459.
[31] Xu Zhongwei, Liu An, Wang Xishu, et al. Fatigue limit prediction model and fatigue crack growth mechanism for selective laser melting Ti-6Al-4V samples with inherent defects[J]. International Journal of Fatigue, 2020, 143: 106008.
[32] Gey N, Bocher P, Uta E, et al. Texture and microtexture variations in a near-α titanium forged disk of bimodal microstructure[J]. Acta Materialia, 2012, 60(6-7): 2647 − 2655. doi: 10.1016/j.actamat.2012.01.031
[33] Kou Hongchao, Chen Yi, Tang Bin, et al. An experimental study on the mechanism of texture evolution during hot-rolling process in a β titanium alloy[J]. Journal of Alloys and Compounds, 2014, 603: 23 − 27. doi: 10.1016/j.jallcom.2014.03.070
-
