Identification method of GTAW welding penetration state based on improved CeiT

Northeast Petroleum University, Daqing, 163318, China

摘要

摘要:
针对熔池信息与背景相似度高、噪声多、预测实时性差、识别精度低等问题，提出了基于改进CeiT网络模型的GTAW焊接熔透状态识别方法.首先通过MobileNetV3对Image-to-Tokens模块进行轻量化改进，提升预测的实时性能；其次设计DGCA模块改进LeFF模块来增强特征间的远程依赖关系、丰富类标记中所包含的分类信息；最后将LeFF模块中的底层特征和高层语义特征进行融合，提高模型对熔池特征的表示能力.仿真结果表明，与MobileNetV3，ResNet50，ShuffleNetV2，DeiT和CeiT模型相比，所提出的模型获得了更高的准确率和较快的检测速度.
- 图像处理 /
- 熔池 /
- 熔透状态 /
- CeiT网络 /
- 熔化极气体保护焊
Abstract:
Aiming at the problems of high similarity between melt pool information and background, much noise, poor real-time prediction and low recognition accuracy, a GTAW welding fusion state recognition method based on improved CeiT network model is proposed. First, the Image-to-Tokens module is lightened and improved by MobileNetV3 to enhance the real-time performance of prediction; second, the DGCA module is designed to improve the LeFF module to enhance the remote dependencies among features and enrich the categorical information contained in the class labels; and lastly, the fusion of the underlying features and the high-level semantic features in the LeFF module improves the model's ability to represent the features of the melt pool. Simulation experiments show that the proposed model obtains higher accuracy and faster detection speed compared with MobileNetV3, ResNet50, ShuffleNetV2, DeiT, and CeiT models.
- image processing /
- melt pool /
- penetration state /
- CeiT network /
- gas tungsten arc welding

HTML全文

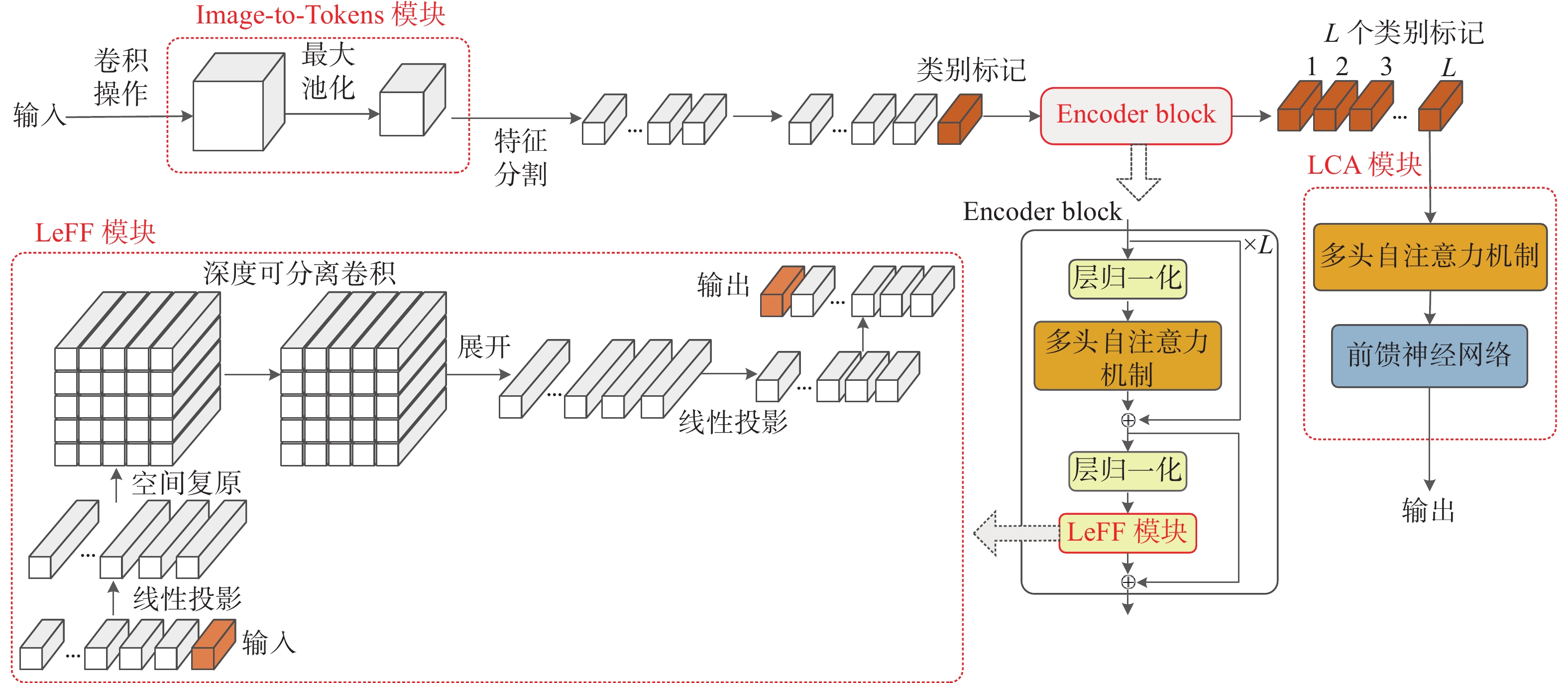

图 1 CeiT网络结构

Figure 1. CeiT network structure

下载: 全尺寸图片幻灯片

图 2 改进前后的bneck结构

Figure 2. Improved bneck structure before and after. (a) bneck original structure; (b) FMCbneck structure

下载: 全尺寸图片幻灯片

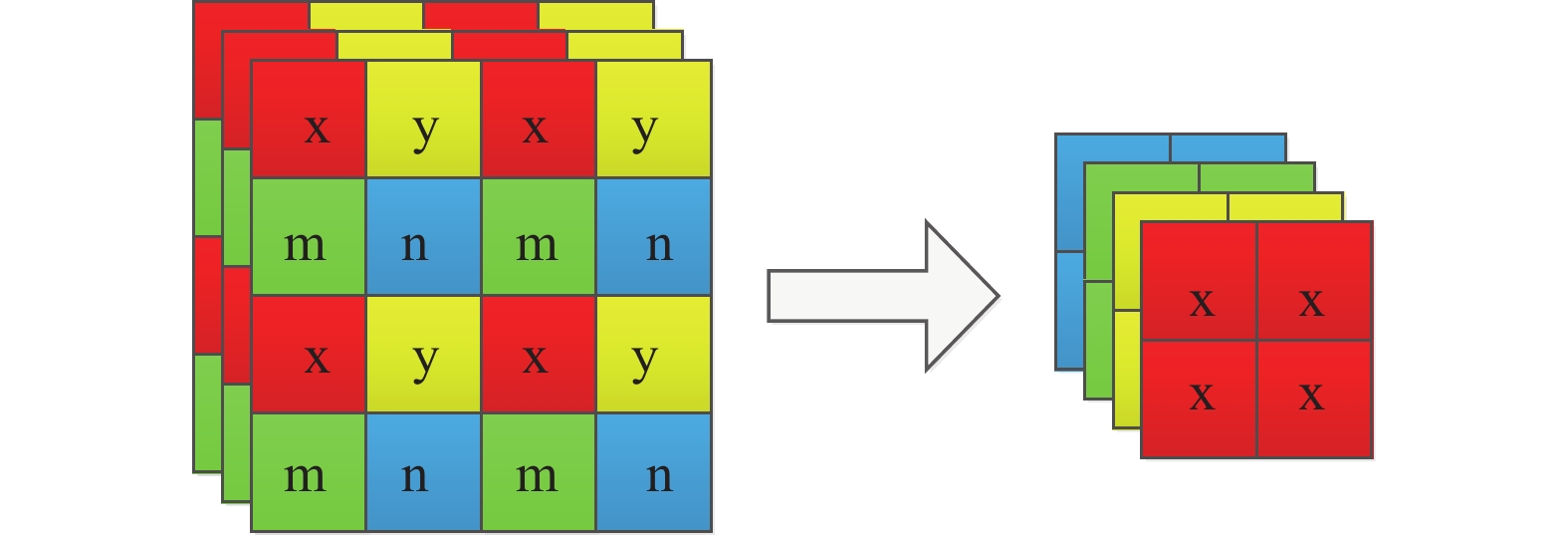

图 3 Focus切片采样原理

Figure 3. Focus slice sampling principle

下载: 全尺寸图片幻灯片

图 4 原始LeFF结构图

Figure 4. Original LeFF structure diagram

下载: 全尺寸图片幻灯片

图 5 改进的LeFF结构图

Figure 5. Improved LeFF structure diagram

下载: 全尺寸图片幻灯片

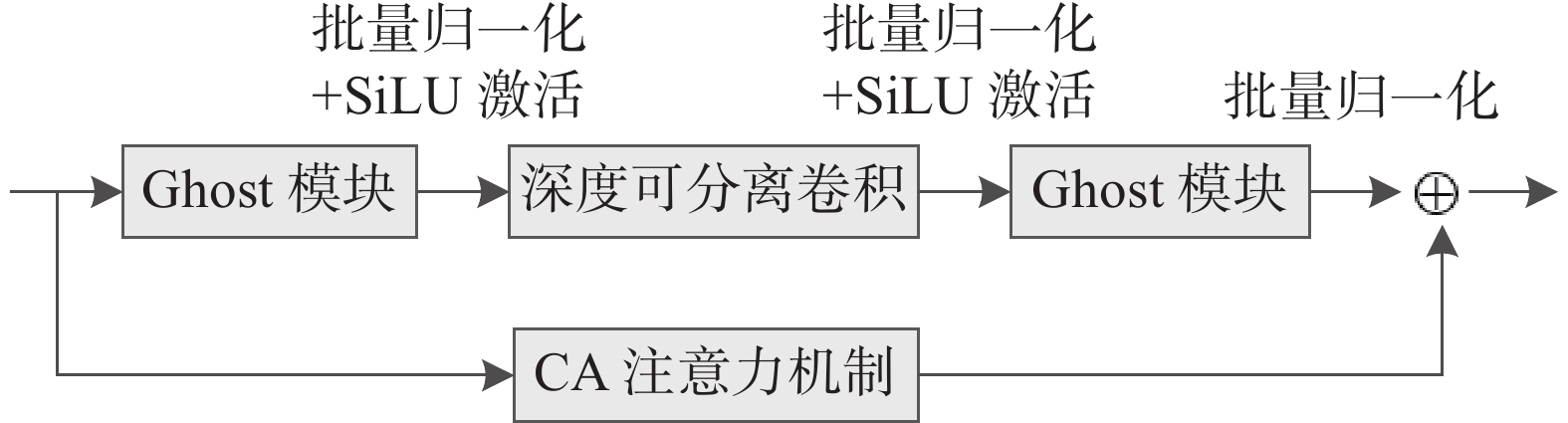

图 6 DGCA模块

Figure 6. DGCA Module

下载: 全尺寸图片幻灯片

图 7 CA注意力模块结构图

Figure 7. CA attention module structure diagram

下载: 全尺寸图片幻灯片

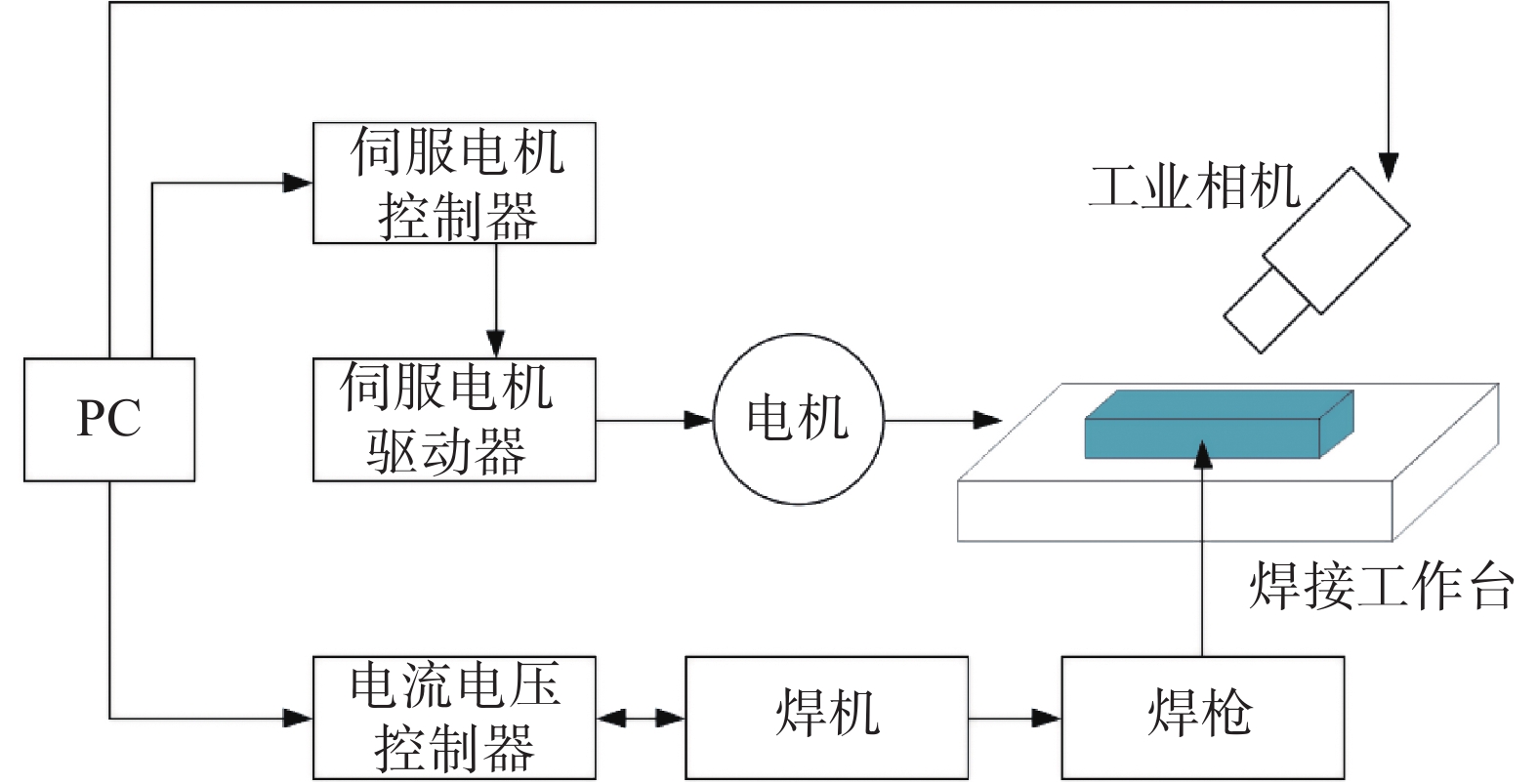

图 8 图像采集平台

Figure 8. Image acquisition platform

下载: 全尺寸图片幻灯片

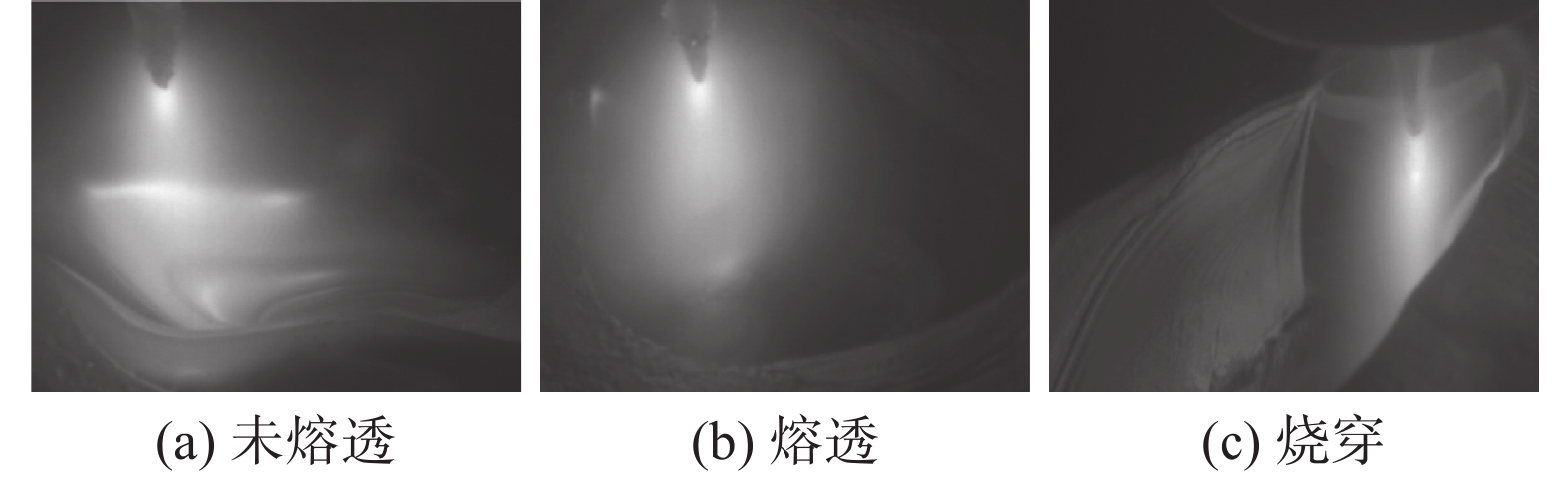

图 9 三种焊接熔池

Figure 9. Three types of welding pools. (a) not melted through; (b) melt through; (c) burn through

下载: 全尺寸图片幻灯片

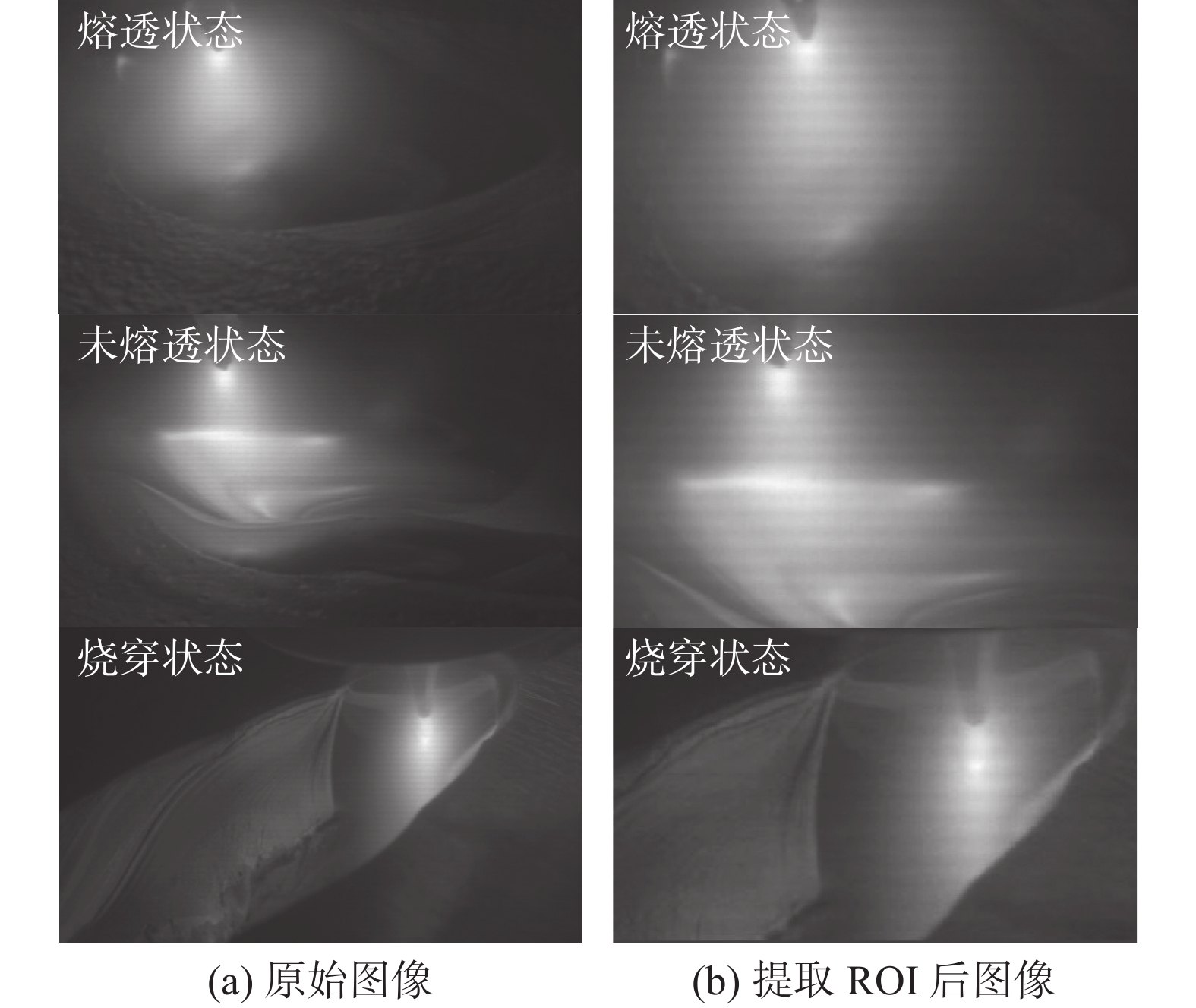

图 10 ROI提取结果

Figure 10. ROI extraction results. (a) original image; (b) image after ROI extraction

下载: 全尺寸图片幻灯片

图 11 样本数据增强效果

Figure 11. Sample data enhancement effect. (a) fusion state; (b) burn-through condition

下载: 全尺寸图片幻灯片

图 12 学习率对比结果

Figure 12. Learning rate comparison results. (a) validation set loss value curve; (b) validation set accuracy curve

下载: 全尺寸图片幻灯片

图 13 组合改进策略的模型迭代曲线

Figure 13. Model iteration curves for combined improvement strategies. (a) Iteration curves of loss values on the training set for different improvement schemes; (b) Iteration curves of the accuracy of different improvement schemes on the validation set

下载: 全尺寸图片幻灯片

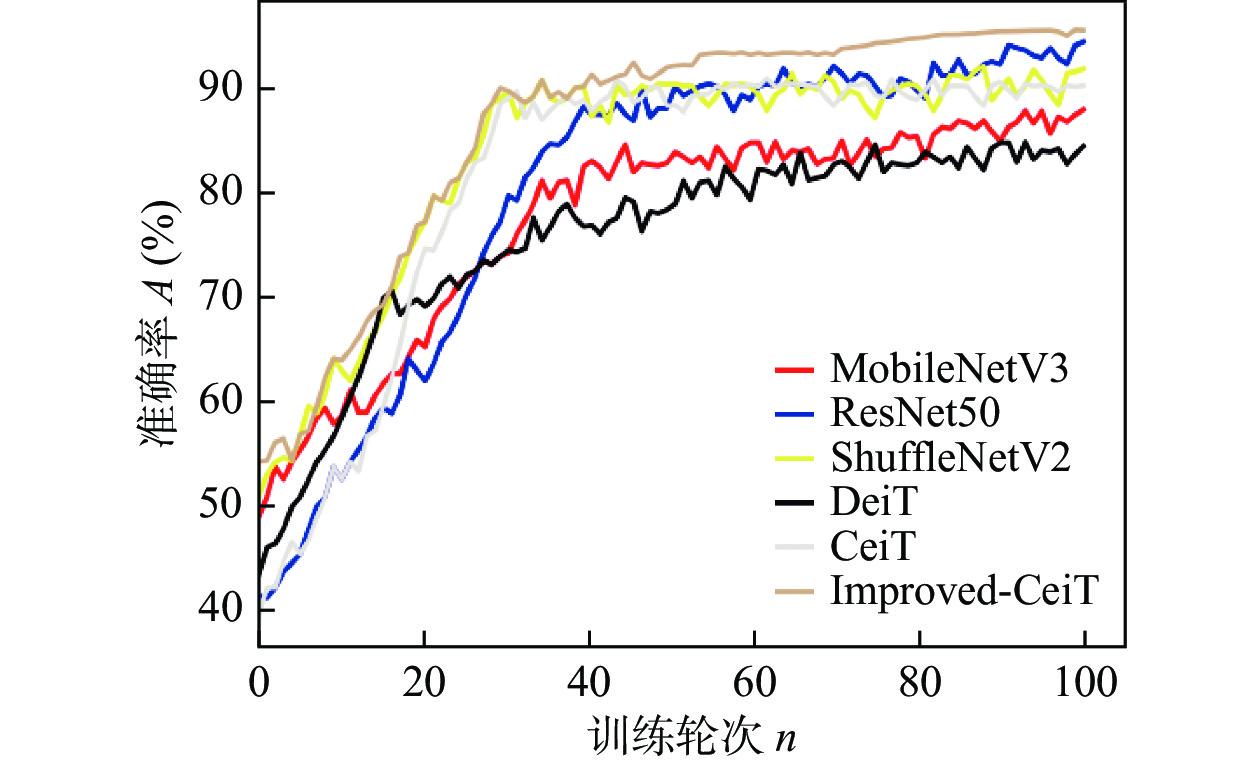

图 14 各对比模型在验证集上准确率的迭代曲线

Figure 14. Iteration curves of the accuracy of each comparison model on the validation set

下载: 全尺寸图片幻灯片

表 1 MobileNetV3网络参数

Table 1 MobileNetV3 network parameters

序号号	输入层	操作	步长	exp size	#out	SE	激活函数
1	224² × 3	Conv2d	2	—	16	—	h-swish
2	112² × 16	FMCbneck,3 × 3	1	16	16	—	ReLU
3	112² × 16	bneck,3 × 3	2	64	24	—	ReLU
4	56² × 24	FMCbneck,3 × 3	1	72	24	—	ReLU
5	56² × 24	bneck,3 × 3	2	72	40	—	ReLU
6	28² × 40	FMCbneck,3 × 3	1	120	40	—	ReLU
7	28² × 40	FMCbneck,3 × 3	1	120	40	—	ReLU
8	28² × 40	bneck,3 × 3	2	240	80	—	h-swish
9	14² × 80	FMCbneck,5 × 5	1	200	80	√	h-swish
10	14² × 80	FMCbneck,5 × 5	1	184	80	√	h-swish
11	14² × 80	FMCbneck,5 × 5	1	184	80	√	h-swish
12	14² × 80	FMCbneck,5 × 5	1	480	112	√	h-swish

下载: 导出CSV

表 2 扩充后各数据集数量(张)

Table 2 Number of each data set after expansion

数据集	未熔透	熔透	烧穿	总和
训练集	5899	6053	5263	17215
验证集	738	757	658	2153
测试集	738	757	658	2153
总和	7375	7567	6579	21521

下载: 导出CSV

表 3 未数据增强试验结果

Table 3 No data enhancement test results

熔透类别	未熔透	正常熔透	烧穿
未熔透	82.5	12.5	5.0
正常熔透	3.0	96.0	1.0
烧穿	15.0	5.0	80
注：12.5表示未熔透状态的数据被预测为正常熔透的概率.

下载: 导出CSV

表 4 数据增强试验结果

Table 4 Data enhancement test results

熔透类别	未熔透	正常熔透	烧穿
未熔透	96.5	2.0	1.5
正常熔透	2.5	96.5	1.0
烧穿	1.0	2.0	97

下载: 导出CSV

表 5 消融试验结果

Table 5 Ablation test results

方案	I2T模块改进		LeFF模块改进		精确率			召回率			F1分数			准确率			训练时间 t/h
方案	M3	BNSA	DG	FI	C0	C1	C2	C0	C1	C2	C0	C1	C2	C0	C1	C2	训练时间 t/h
1	—	—	—	—	85.1	86.9	85.3	80.6	81.3	80.0	84.6	87.3	84.5	87.5	87.9	86.8	4.07
2	Π	—	—	—	81.2	83.7	81.9	74.7	80.7	79.2	81.1	83.8	80.9	82.1	84.3	83.5	3.23
3	Π	Π	—	—	91.2	92.3	92.0	87.8	88.8	88.6	92.5	93.3	92.9	90.3	93.8	91.4	3.58
4	—	—	Π	—	90.6	91.6	91.4	87.4	89.0	86.7	90.6	92.4	91.0	90.8	92.4	91.3	4.94
5	—	—	Π	Π	91.3	92.5	92.1	87.7	89.5	87.6	91.7	91.6	92.2	91.7	92.6	92.4	5.16
6	Π	Π	Π	Π	94.6	95.4	94.9	91.0	92.7	90.7	94.3	95.5	94.3	95.9	96.0	95.8	3.76

下载: 导出CSV

表 6 不同模型试验结果

Table 6 Test results of different models

模型	精确率	召回率	F1 分数	准确率	训练时间t/h	模型内存占用量 δ/MB	识别单个样本平均时间t'/s
MobileNetV3	82.2	80.1	81.3	85.1	3.24	17.6	0.16
ResNet50	90.4	89.3	90.0	94.3	6.18	179	0.78
ShuffleNetV2	85.1	83.5	84.8	90.2	3.04	9.85	0.11
DeiT	75.5	73.3	74.2	80.3	3.27	35.8	0.35
tttCeiT	82.9	80.7	81.0	87.8	4.07	44.8	0.47
Improved-CeiT	92.7	90.2	91.6	95.4	3.76	27.7	0.24

下载: 导出CSV
