Nd对Sn-3.8Ag-0.7Cu/Cu焊点高温可靠性的影响

Effect of Nd on the high temperature reliability of Sn-3.8Ag-0.7Cu/Cu solder joint

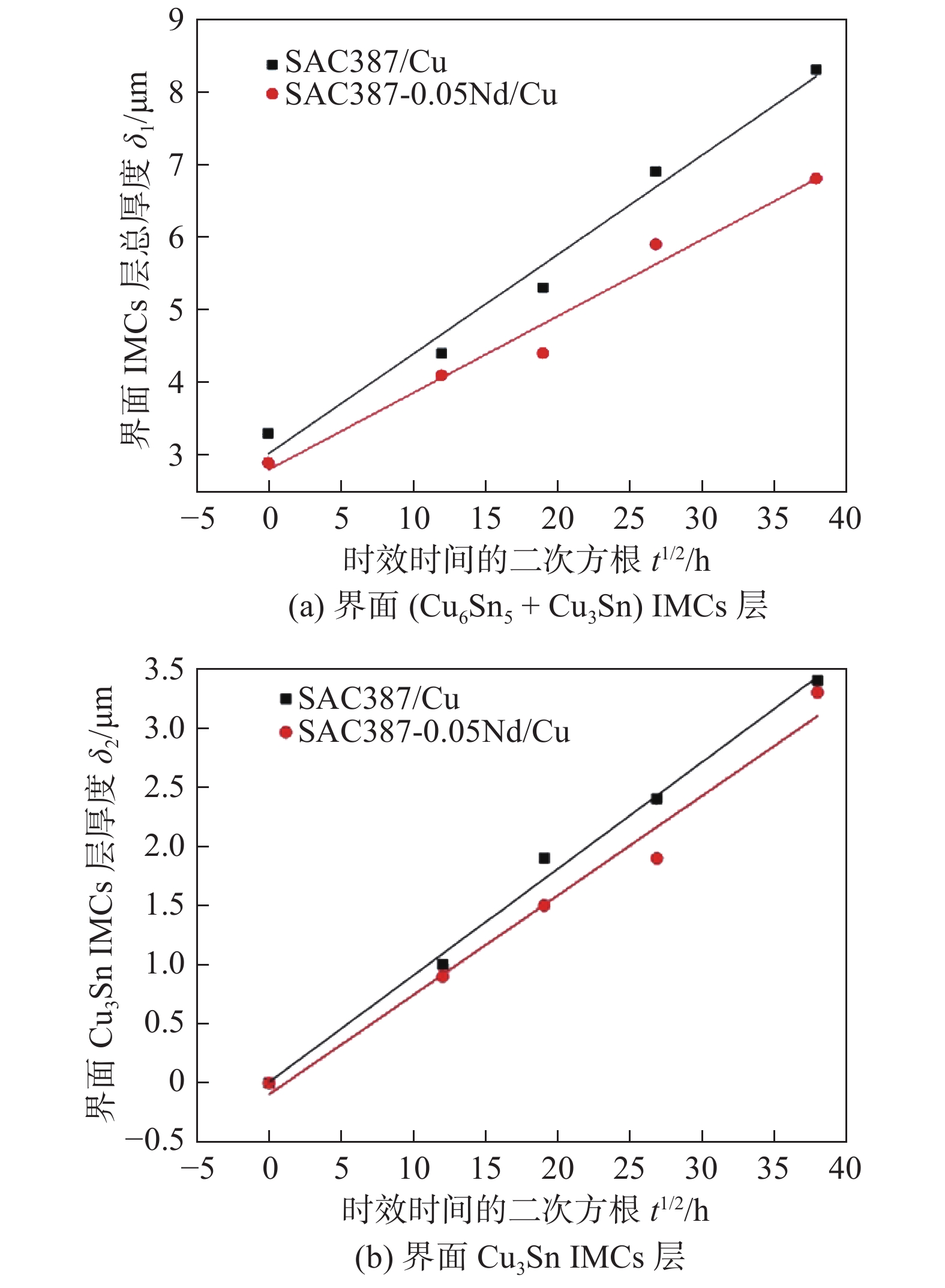

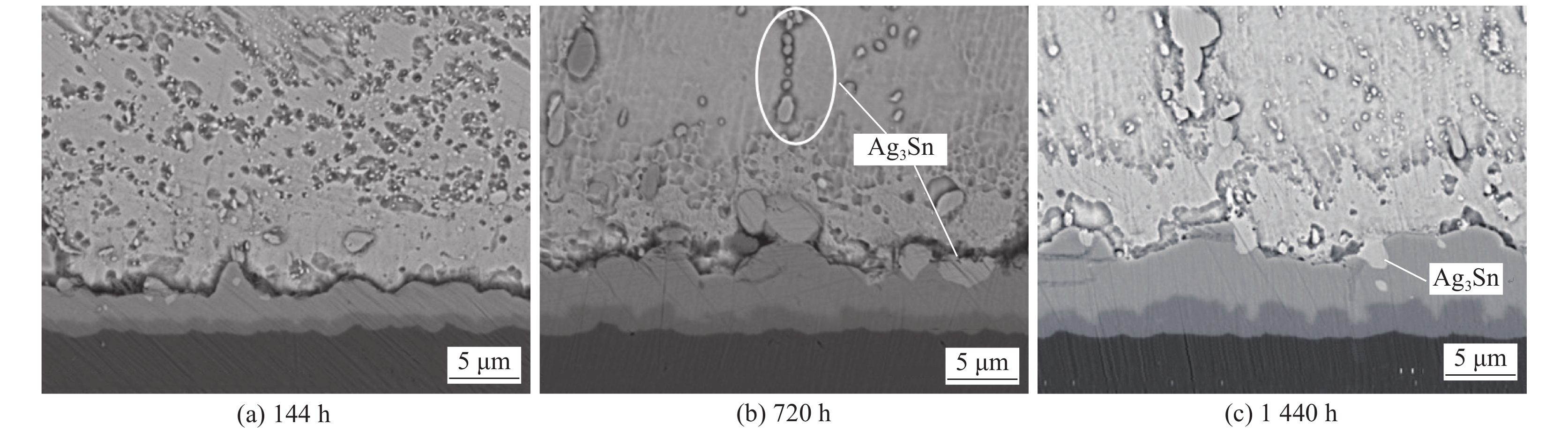

  • 摘要: 通过研究150 ℃时效条件下Sn-3.8Ag-0.7Cu-0.05Nd/Cu焊点剪切力变化和界面微观结构演变,探讨稀土元素Nd对焊点高温可靠性的影响及其影响机制. 结果表明,不同时效时间后Sn-3.8Ag-0.7Cu-0.05Nd/Cu焊点剪切力明显高于Sn-3.8Ag-0.7Cu/Cu焊点,且时效过程中Sn-3.8Ag-0.7Cu-0.05Nd/Cu焊点剪切力的下降速率低于原焊点. 这是由于0.05%Nd可将界面原子扩散系数由1.88 × 10−10 cm2/h降低至1.10 × 10−10 cm2/h,即通过抑制界面金属间化合物的粗化来提高焊点的高温可靠性.



    Abstract: The change in shear force and evolution of interfacial microstructure of Sn-3.8Ag-0.7Cu-0.05Nd/Cu solder joint at the temperature 150 ℃ were investigated. The effect of rare earth Nd on the high temperature reliability of the solder joint and the corresponding enhanced mechanism were discussed. The results showed that the shear force of Sn-3.8Ag-0.7Cu-0.05Nd/Cu solder joint was significantly higher than that of Sn-3.8Ag-0.7Cu/Cu solder joint after different aging hours, and the decrease rate of shear force of Sn-3.8Ag-0.7Cu-0.05Nd/Cu solder joint was lower than that of the original solder joint during the aging process. This is because 0.05% Nd could reduce the interfacial diffusion coefficient from 1.88×10−10 cm2/h to 1.10×10−10 cm2/h, that is to say, the high temperature reliability of solder joints could be improved by inhibiting the coarsening of interfacial intermetallic compounds.



/
