3D reconstruction of laser scanning at weld surface defects
-

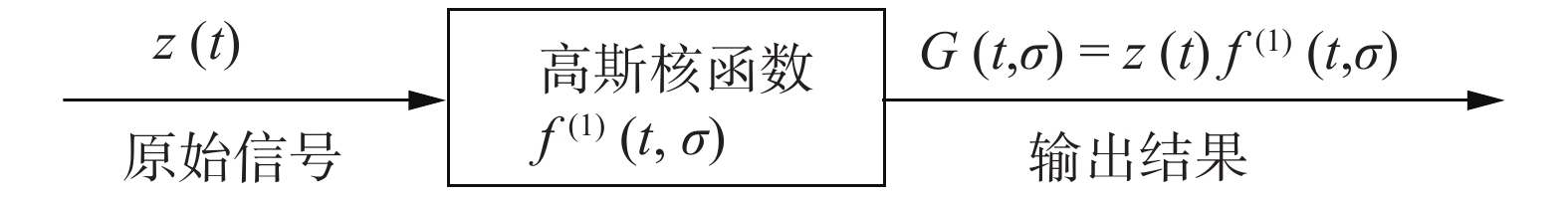

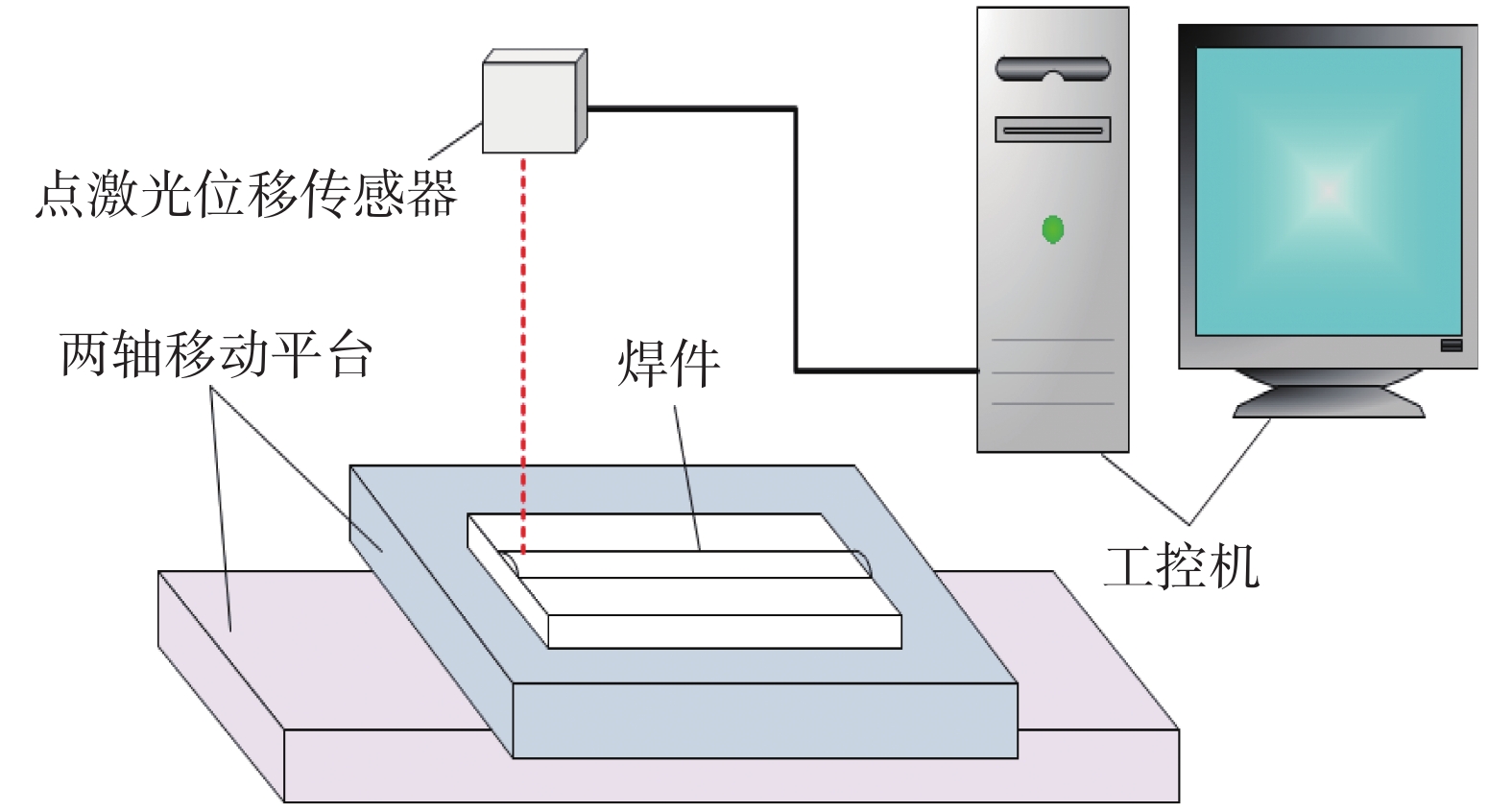

摘要: 为检测工件焊缝表面缺陷，采用点激光位移传感测距法和数据拟合技术进行焊缝表面缺陷检测试验研究. 首先采集缺陷表面轮廓数据点，利用高斯滤波对原始数据降噪处理. 再对处理后的数据点进行Delaunay三角剖分，使散乱点连接并结合其空间坐标重构出缺陷的三维模型. 结果表明，基于点激光位移传感测距技术及焊缝表面缺陷三维重构方法可以准确判断焊缝成形情况.Abstract: The surface defects of the workpiece weld bead were detected suing a point laser displacement sensing method. Firstly, the data of weld defect surface was collected and the original data was filtered by Gaussian filtering. Then the Delaunay triangulation was applied for the processed data points and reconstruction of a three-dimensional model with the spatial coordinates. Experimental results showed that the 3D reconstruction method based on the point laser displacement sensing and the surface defect images of the weld bead can accurately judge the appearance of welds.
-
Keywords:
- laser ranging /
- weld defect /
- triangulation /
- 3D reconstruction
-
-
![]()

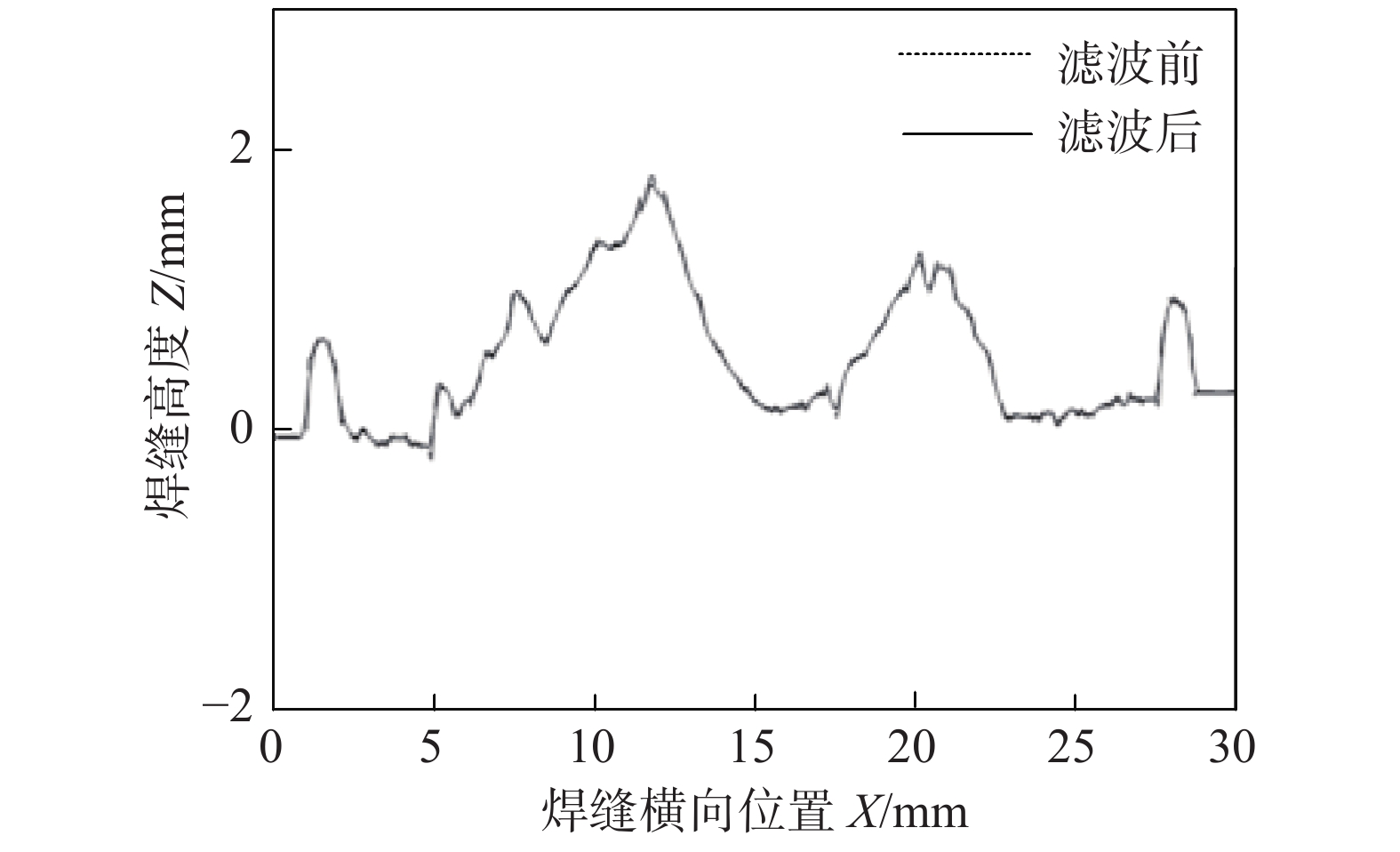

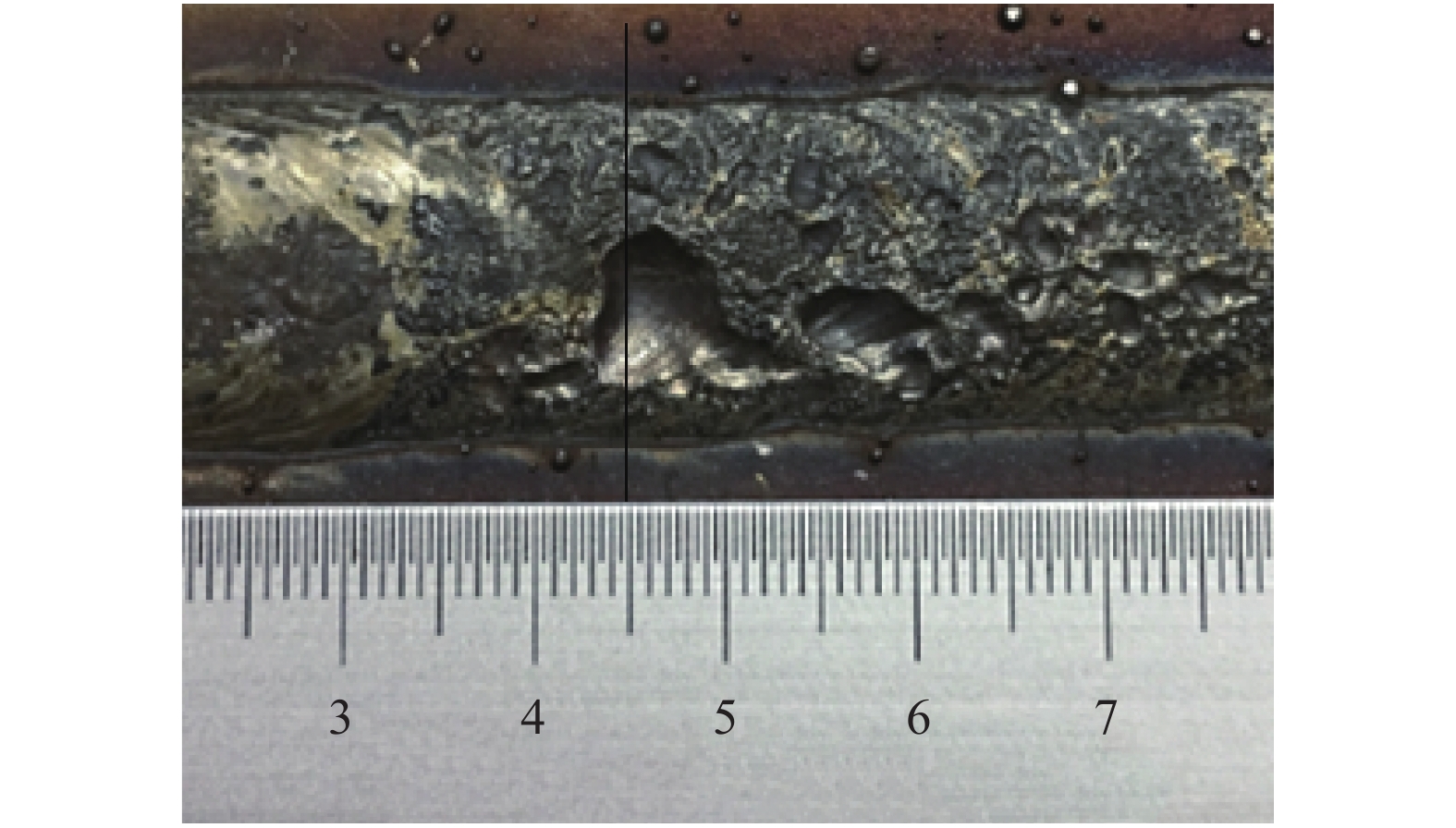

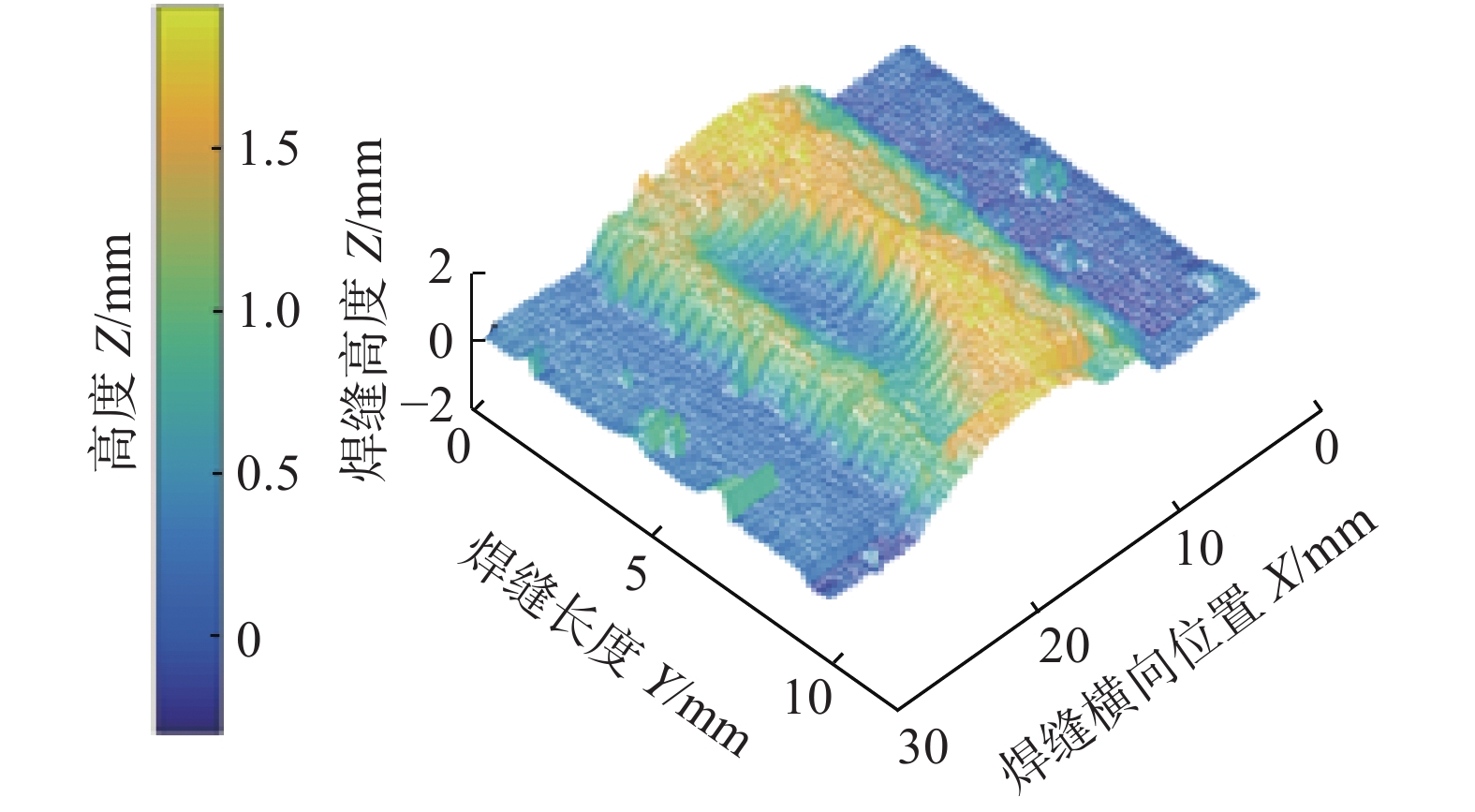

图 6 含有凹坑缺陷的单次焊缝扫描横向轮廓图
Figure 6. Single weld scanning horizontal profile including pits defects
![]()

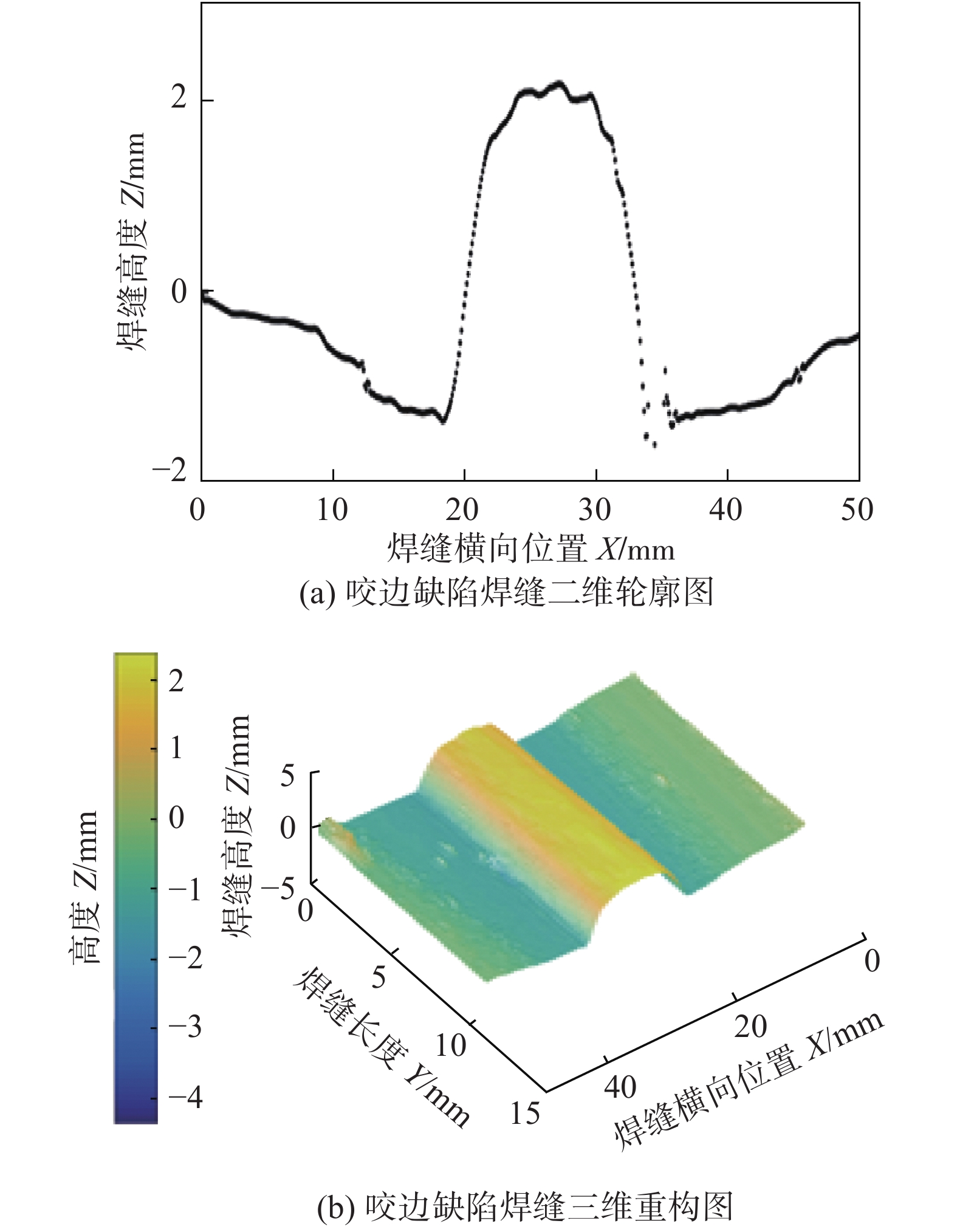

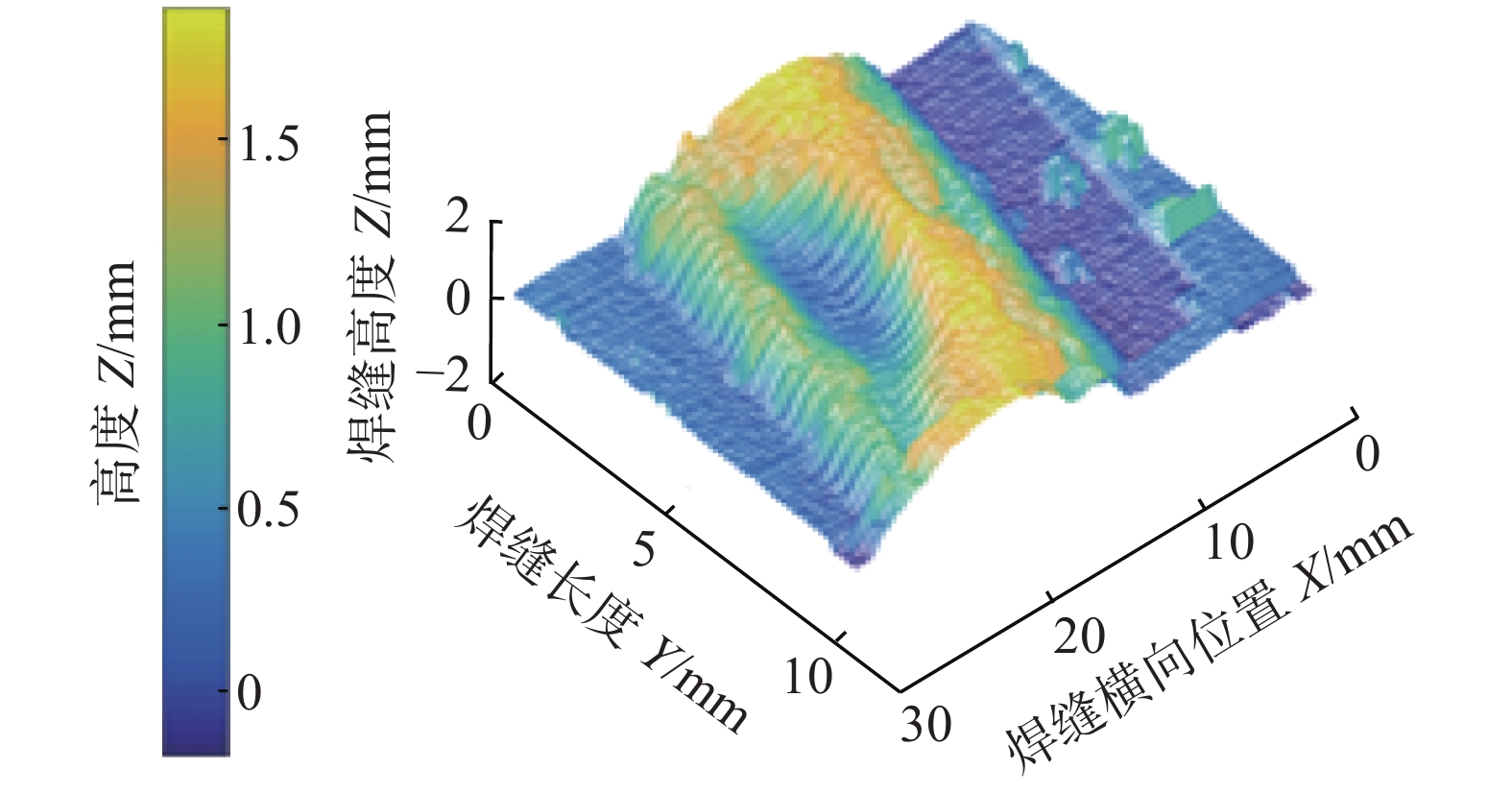

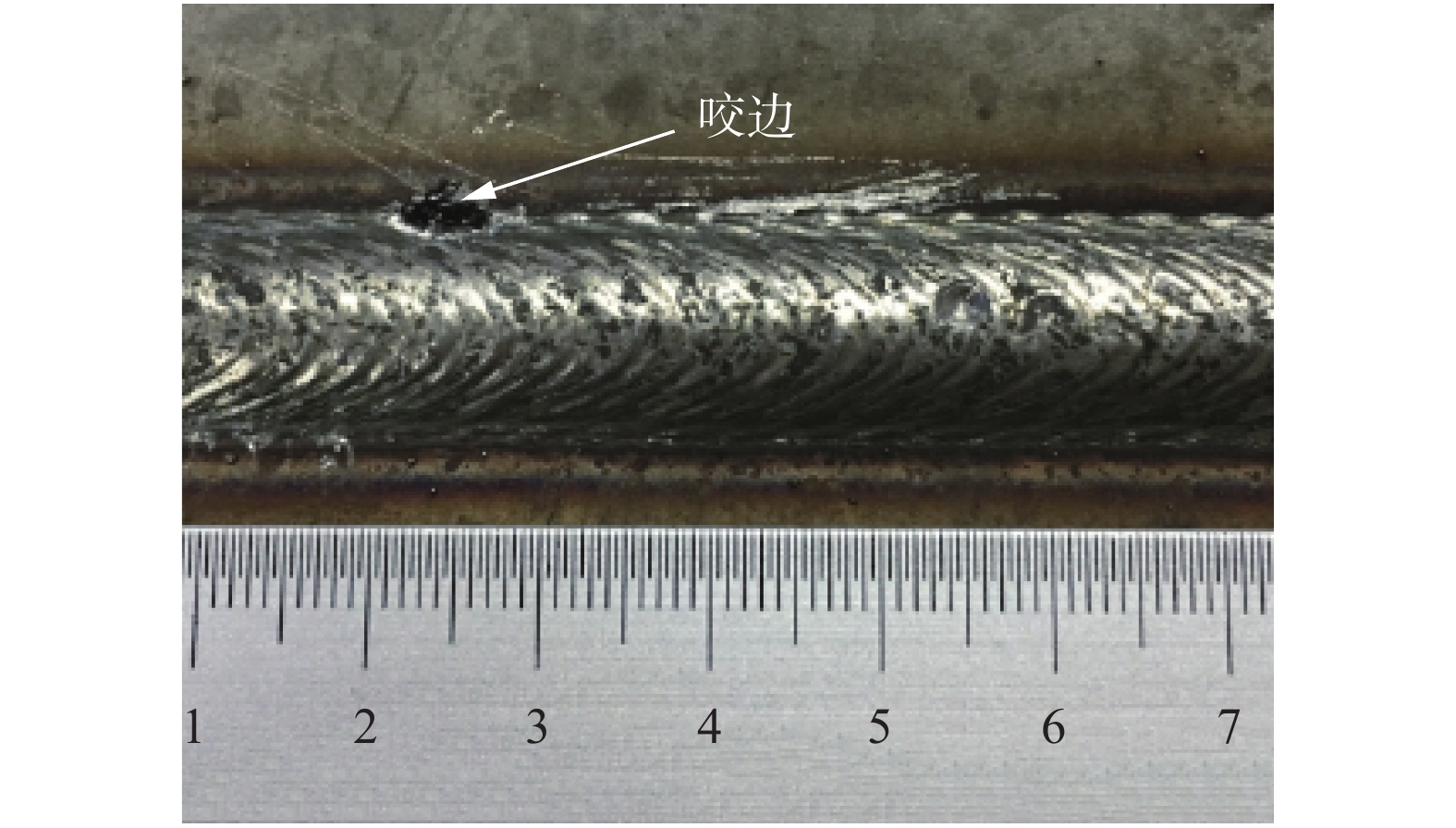

图 10 咬边缺陷焊缝二维轮廓图及三维重构图
Figure 10. Two-dimensional contour and three-dimensional reconstruction picture of weld with undercut defect. (a) two-dimensional contour of weld with undercut defect; (b) three-dimensional reconstruction picture of weld with undercut defect

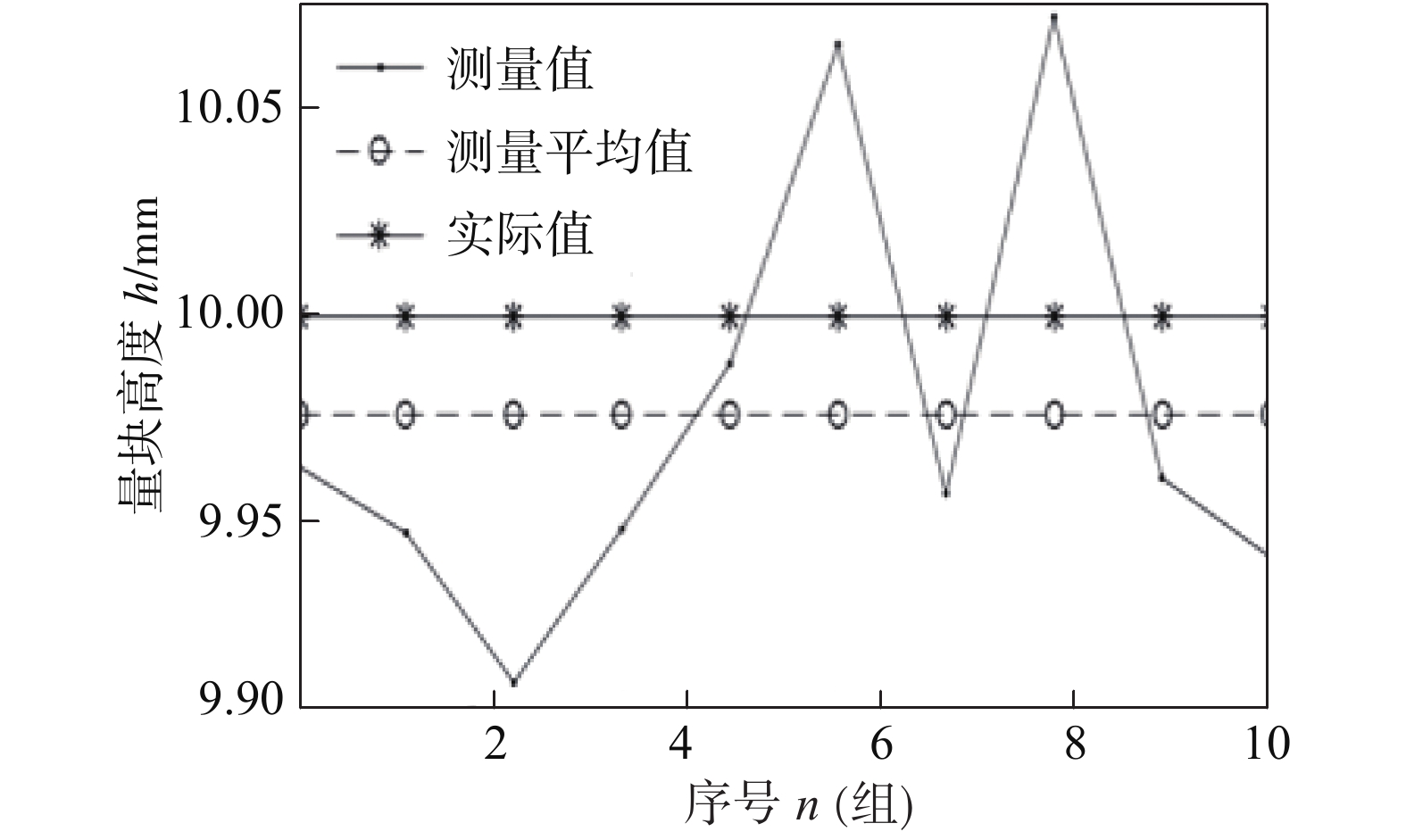

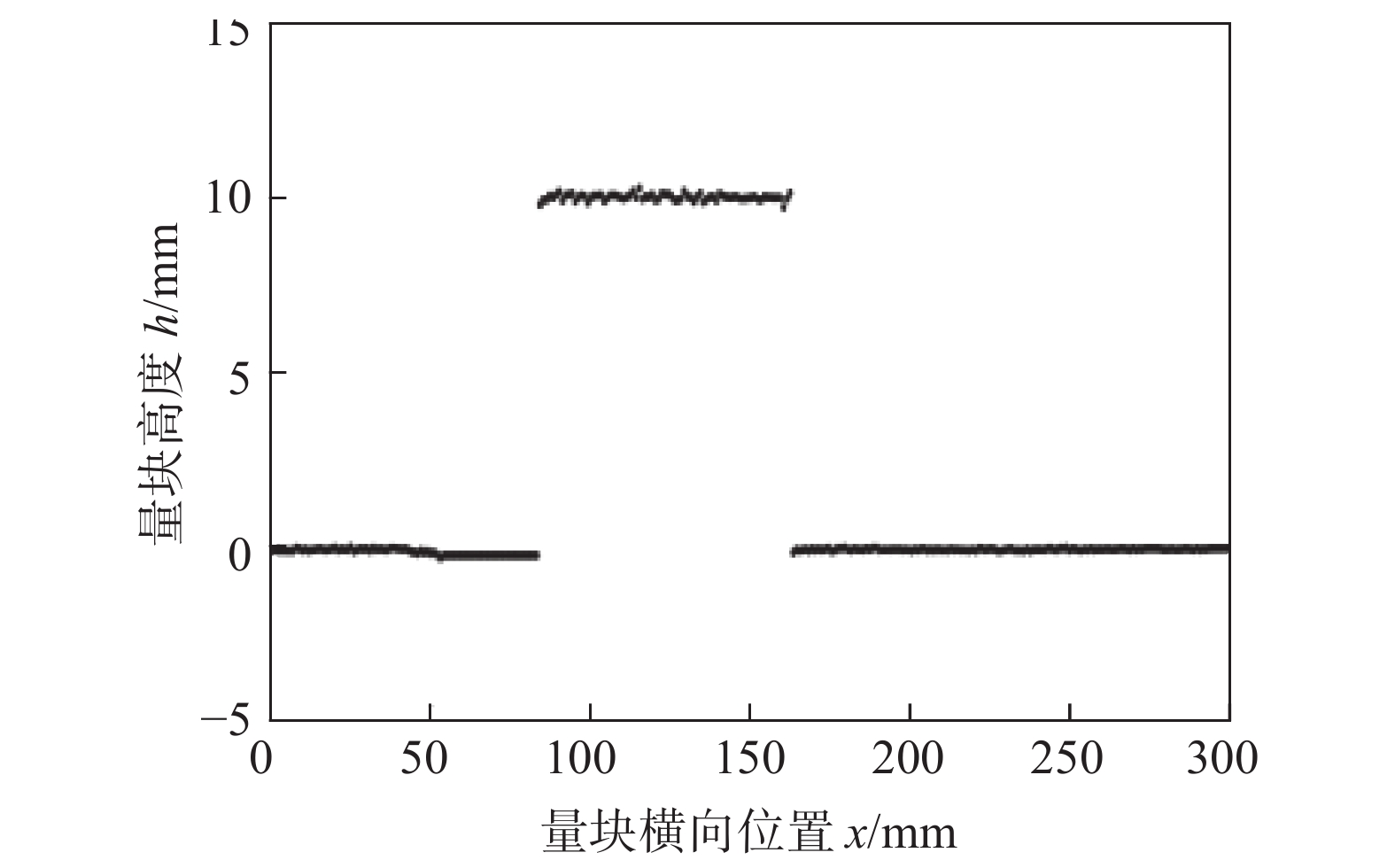

表 1 量块高度测量误差表
Table 1 Gage block height measurement error table
序号 10 mm 标准值量块 测量值 h1/mm 真实值 h/mm 误差 ε/mm 1 9.962 10 0.038 2 9.945 10 0.055 3 9.907 10 0.093 4 9.946 10 0.054 5 9.988 10 0.012 6 10.069 10 –0.069 7 9.955 10 0.045 8 10.076 10 –0.076 9 9.959 10 0.041 10 9.939 10 0.061 平均值 $\scriptstyle \bar h $ /mm9.975 10 0.025 标准偏差σ/mm 0.025 均方误差 MSE/mm 0.058 4
下载: 导出CSV
-
[1] Qi Jiyang, Li Jinyan. Feature extraction of welding defect based on machine vision[J]. China Welding, 2019, 28(1): 56 − 62.
[2] 李雪琴, 刘培勇, 殷国富. 基于Fourier拟合曲面的X射线焊缝缺陷检测[J]. 焊接学报, 2014, 35(10): 61 − 64. Li Xueqin, Liu Peiyong, Yin Guofu. Detection of X - ray weld defects based on fourier fitting surface[J]. Transactions of the China Welding Institution, 2014, 35(10): 61 − 64.
[3] 高向东, 郑俏俏, 王春草. 旋转磁场下焊接缺陷磁光成像检测与强分类研究[J]. 机械工程学报, 2019, 55(17): 61 − 67. doi: 10.3901/JME.2019.17.061 Gao Xiangdong, Zheng Qiaoqiao, Wang Chuncao. Magneto-optical imaging detection and strong classification of weld defects in rotating magnetic fied[J]. Journal of Mechanical Engineering, 2019, 55(17): 61 − 67. doi: 10.3901/JME.2019.17.061
[4] Gao X D, Mo L, Zhong X G, et al. Detection of seam tracking offset based on infrared image during high-power fiber laser welding[J]. Acta Physica Sinica, 2011, 60(8): 298 − 300.
[5] 方吉米, 王克鸿, 黄勇. 基于透红外视觉传感的GMA-AM熔池图像质量评价[J]. 焊接学报, 2018, 39(12): 89 − 94. doi: 10.12073/j.hjxb.2018390304 Fang Jimi, Wang Kehong, Huang Yong. Weld pool image quality evaluation of gas metal arc additive manufacturing based on infrared visual sensing[J]. Transactions of the China Welding Institution, 2018, 39(12): 89 − 94. doi: 10.12073/j.hjxb.2018390304
[6] 董祉序, 孙兴伟, 刘伟军, 等. 基于激光位移传感器的自由曲面精密测量方法[J]. 仪器仪表学报, 2018, 39(12): 30 − 38. Dong Zhixu, Sun Xingwei, Liu Weijun, et al. Precision measurement method of free-form curved surfaces based on laser displacement sensor[J]. Chinese Journal of Scientific Instrument, 2018, 39(12): 30 − 38.
[7] Graaf M D, Aarts R, Jonker B, et al. Real-time seam tracking for robotic laser welding using trajectory-based control[J]. Control Engineering Practice, 2010, 18(8): 944 − 953. doi: 10.1016/j.conengprac.2010.04.001
[8] 梁德群, 沈杉, 杨海军. 基于点光源X射线焊缝缺陷深度尺寸的测量[J]. 焊接学报, 2000, 21(3): 5 − 8. doi: 10.3321/j.issn:0253-360X.2000.03.002 Liang Dequn, Shen Shan, Yang Haijun. Measurement of depth depth of X - ray weld based on point light source[J]. Transactions of the China Welding Institution, 2000, 21(3): 5 − 8. doi: 10.3321/j.issn:0253-360X.2000.03.002
[9] 莫毅. 基于结构光视觉传感器的弧焊机器人视觉检测方法及试验结果分析[J]. 热加工工艺, 2017(1): 238 − 242. Mo Yi. A visual inspection method of arc welding robot based on structured light vision sensor and analysis of experimental results[J]. Processing of Hot Processes, 2017(1): 238 − 242.
[10] Gao Shiyi, Yang Kaizhen, Liu Shitian. Detection of surface defects in laser weld seam based on data fitting[J]. Modern Electronics Technique, 2011, 34(14): 188 − 190.
[11] 孙俊灵, 孙光民, 马鹏阁, 等. 基于对称小波降噪及非对称高斯拟合的激光目标定位[J]. 中国激光, 2017(6): 178 − 185. Sun Junling, Sun Guangmin, Ma Pengge, et al. Laser target localization based on symmetric wavelet denoising and asymmetric gauss fitting[J]. Chinese Journal of Lasers, 2017(6): 178 − 185.
-
